MODEL- FCS-1060           VENDOR- CP TECH/LEVEL ONE

FEATURES- CamCon 10/100Mbps P/T IP Network Camera

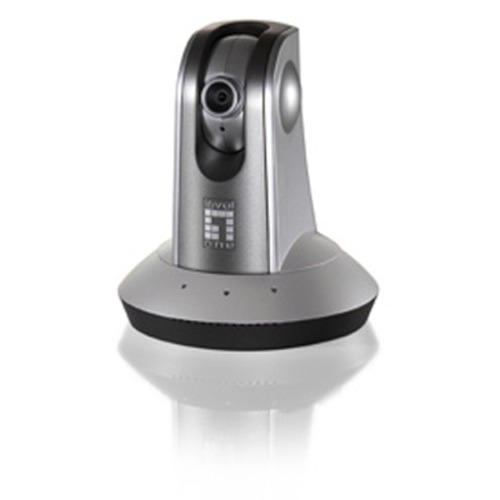

       LevelOne's FCS-1060 is a Pan and Tilt IP network camera, offering
        superior image quality and optimized bandwidth efficiency through
        existing Ethernet connections.
       Pan/Tilt Network Camera --The FCS-1060 contains an excellent sensor
        to record brilliant images up to 704 x 480 pixels. The Auto Pan
        function allows the user to define individual cameras automatic
        panning movements thus providing the capability to survey the
        widest range of targets over a pan range of 350-degrees and a tilt
        range of 125-degrees. The Patrol mode allows the user to preset up
        to 20 spots for sequential auto-monitoring.
       Remotely, Advanced Monitoring Features--The motion detection feature
        provides operational flexibility to record only when there is
        motion thus saving record storage. With a built-in web server, the
        FCS-1060 provides an easy user interface for remote access to
        receive video signals from anywhere anytime over the Internet with
        the Internet Explorer browser.
       Easy Maintenance and Configuration-- With LevelOne's free bundled
        software, administrators are able to monitor up to 16 channels
        simultaneously. The FCS-1060 also provides recording capabilities
        for synchronized video & audio when captured by the manual, event-
        driven or schedule recording modes. For full-featured surveillance
        solutions to your camera needs, our LevelOne FCS-1060 absolutely
        provides optimum solutions when building a digital surveillance
        environment.
* Motorized wild-range Pan/Tilt
* Built-in 1/4" CMOS sensor and high sensitive microphone to deliver high
  quality streaming video.
* Provides 4x digital zoom
* Supports MPEG4 (Short header mode) compression for streaming video and
  JPEG for still Image.
* Intelligent Motion Detection
* Pre/Post Alarm Snapshots
* Free-Bundled powerful 16-Channel Recording Software
* Built-in Web server for remote accessing image from general web browser
  anywhere.
* Supports UPnP & DDNS

  -- SPECIFICATIONs -----------------------------------
STANDARDS    - IEEE 802.3 10BaseT Ethernet
               IEEE 802.3u 100Base-TX Fast Ethernet
CONNECTORS   - (1) 10BaseT/100BaseTX/RJ45 port
PROTOCOLS    - UPnP, TCP/IP, RTSP/RTP/RTCP, HTTP, SMTP, FTP, Telnet, NTP,
                 DNS, DHCP, DDNS and PPPoE.
VIDEO ALGORITHM SUPPORT-
               MPEG4 (Simple Profile) for streaming video
               JPEG for still image
               Adjustable image size, quality and bit rate
               Timestamp and text overlay
               3 motion detection windows
               Flip & mirror
VIDEO RESOLUTION-
               Up to 30/25 frames at 160x120
               Up to 30/25 frames at 176x144
               Up to 15/12 frames at 640x480
CAMERA/LENS  - 1/4 inch color CMOS sensor
               Typical: 1.0 Lux / F2.0
               Low Lux mode: 0.05 Lux/F1.8
               AGC, AWB, AES
               Electronic shutter: 1/60 to 1/15,000 sec
               Fix length: 4.0mm
               Aperture: F2.0
AUDIO        - Algorithm  : GSM-AMR/ MPEG4 AAC
               Audio Mute : Supported
MICROPHONE   - Omni-directional
               Frequency  : 50 - 16,000Hz
               S/N ratio  : more than 60dB
PAN/TILT     - Pan        : range 350 degrees (+175 to -175 degrees)
               Tilt       : range 125 degrees (+90 to -35 degrees)
               Auto pan mode/ Auto patrol mode
SECURITY     - ID/Password authentication
HARDWARE     - System     : RAM: 32MB SDRAM
                            ROM: 4MB Flash ROM
               Indicators : System power and status indicator
                            System activity and Network link indicator
                            Microphone status indicator
APPROVALS    - FCC, CE
POWER SOURCE - Adapter output: 12VDC, 1.5A
DIMENSIONS   - 88.9mm W x 57.2mm H x 138mm L   WT.- 222 grams
www.cptech.com
