MODEL- RR1742             VENDOR- HPT USA/HIGHPOINT TECH

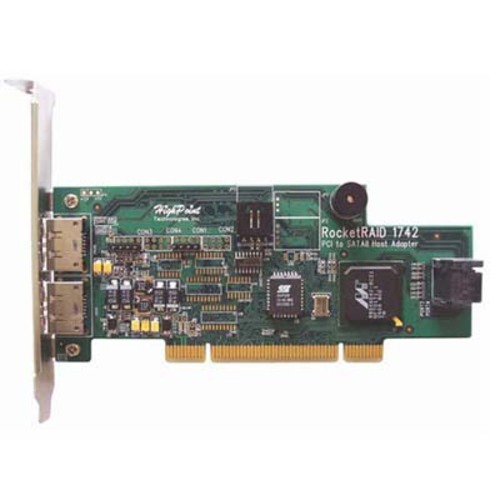

FEATURES- RocketRAID 1742A Host Adapter
       Two internal SATA and Two external eSATA PCI SATA RAID Controller!
       Initially SATA was designed as an internal or inside-the-box
        interface technology, bringing improved performance and new
        features to internal PC or consumer storage. Creative designers
        quickly realized the innovative interface could reliably be
        expanded outside the PC, bringing the same performance and features
        to external storage needs instead of relying on USB or 1394
        interfaces.
       Called external SATA or eSATA, customers can now utilize shielded
        cable lengths up to 2 meters outside the PC to take advantage of
        the benefits the SATA interface brings to storage.
       SATA is now out of the box as an external standard, with
        specifically defined cables, connectors, and signal requirements
        released as new standards in mid-2004. eSATA provides more
        performance than existing solutions and is hot pluggable.
    Includes eSATA Controller, (2) 2 meter eSATA to eSATA cables, driver
      CD and manual.
* Up to 4 SATA II or SATA I Hard Drives
* Supports RAID 0, 1, 5, 10, and JBOD
* Backward compatible to RocketRAID 1640 RAID arrays
* Native Command Queuing (NCQ)
* Online Capacity Expansion (OCE) and Online RAID Level Migration (ORLM)
* Staggered drive spin up
* Hard Disk (Activity/Failed) LED chassis function
* SAF-TE Enclosure Management Functions
* BIOS Booting (INT13) to RAID array
* Quick and Background initialization for instant RAID access
* Write through and write back cache for RAID arrays
* Hot swap and hot spare
* Online array roaming
* Automatic detect drive to rebuild degraded RAID
* S.M.A.R.T array monitoring for hard drive status and reliability
* 64-bit LBA for RAID arrays greater than 2TB
* Web browser-base software (Web GUI)
* Command Line Interface (CLI)
* SMTP email notification for events and error reporting
* Remote array management through (Web GUI, RAID GUI and CLI)
* Support Windows (XP, 2000, Server 2003 and Vista), Linux and FreeBSD
* RoHS Compliant

  -- SPECIFICATIONs ------------------------------------
HOST SIDE INTERFACE - 32-bit PCI @ 33/66 MHz
DISK INTERFACE      - SATA I or SATA II
# OF CHANNELS       - (2) internal SATA connectors
                      (2) external eSATA connectors
RAID LEVEL SUPPORT  - RAID 0, 1, 5, 10, and JBOD
O/S SUPPORT         - Windows (98/ME, NT, 2000, XP), 2003, x64 and
                        Mac OS X, Linux and FreeBSD.
RAID MANAGEMENT TOOL- BIOS
                      Web-based RAID
                      Management Software and CLI
MISCELLANEOUS       - Hot swap/hot spare
                      64-bit LBA for over 4TB partition support
                      Support large capacity hard drives
                      BIOS Booting support
                      SMTP support for email notification
APPROVALS           - FCC B, CE
DIMENSIONS          - 2.527"w x 5.929"d
www.highpoint-tech.com
