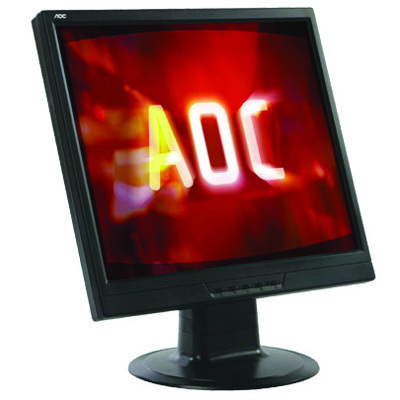

MODEL- 177Sa-1             VENDOR- AOC INTERNATIONAL

FEATURES- 17.0" LCD Flat Panel Display- Black bezel
       The AOC 177S1 offers premium picture quality for graphics-intensive
        applications. It comes with 700:1 contrast ratio, which delivers
        exceptional image clarity, and 160-degree viewing angle to provide
        increased visibility from side viewpoints. It's response time is
        8ms, a key feature that prevents fast moving objects from becoming
        blurred.
       The AOC 177S1 offer consumers brilliant large screen performance at
        highly competitive price.

  -- SPECIFICATIONs ------------------------------------
DISPLAY      - 17.0" Diagonal, TFT LCD Active Matrix LCD
               Hard coating (3H), Anti-glare screen treatment
               Viewing Angle: 160 degrees Horizontal, 160 degrees Vertical
               Display Area : 338mm x 270mm
               16.7 million colors
PIXEL PITCH  - 0.264mm x 0.264mm
BRIGHTNESS   - 300 cd/m2 (typical)
CONTRAST     - 700:1     (typical)
RESOLUTION   - 1280 x 1024 @ 75Hz (max.), 1280 x 1024 @ 60Hz (recommended)
               Supports 720 x  400 @ 70Hz
                        640 x  480 @ 60/66/72/75Hz
                        800 x  600 @ 56/60/72/75Hz
                       1024 x  768 @ 60/70/75Hz
                       1280 x 1024 @ 60/75Hz
RESPONSE TIME- 8 ms (typical)
FREQUENCY    - Horizontal : 30.0 - 83.0 kHz
               Vertical   : 55.0 - 75.0 Hz
PIXEL RATE   - 135 MHz
INPUT SIGNAL - Video Input  : 0.7Vp-p, RGB analog
               Separate Sync: TTL level
               H/V Sync     : Positive/Negative
CONNECTORs   - 15-pin D-sub Male (attached)
CONTROLS     - User: Menu/Exit, Auto Adjust/Confirm, Up, Down, Power
               OSD : Auto Adjust, Contrast, Brightness, Color Adjust,
                       Information, Image Adjust, H/V Position, H Size,
                       Fine Tune, Setup Menu, Language Select, Resolution
                       Notice, OSD Position, OSD Timeout, Memory Recall.
                     Languages displayed in English, French, Spanish,
                       Italian.
COMPATIBILITY- VESA, SXGA, XGA, SVGA, VGA
               Mac Equipped With VGA Port
SPEAKERS     - Built-in 1 watt x 2
WALL MOUNT   - VESA 100mm Wall Mountable
SECURITY     - Kensington security slot compatible
APPROVALS    - cUL, FCC, CE, ISO13406-2, Works with Windows Vista logo,
                 ROHS.
POWER SOURCE - Universal 100-240VAC, 50/60Hz, Internal Power Supply
               Consumption 45 watts (max.), EPA Energy Star
DIMENSIONS   - 14.7"w x 15.8"h x 3.0"d       WT.-  10.4 lbs.
 www.aocmonitor.com
