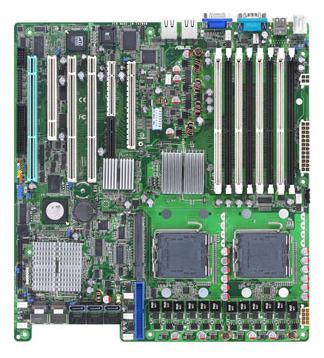

MODEL- DSBF-D/SAS         VENDOR- ASUS

FEATURES- Intel 5000P chipset Motherboard
       Socket 771 for Dual and Quad core Intel Xeon 5000/5100/5300
        processors; supports dual-channel DDR2 533/667 up to 32GB; ATX.
       Asus serverboard DSBF-D/SAS supports Dual-Core/Quad-Core Intel Xeon
        processors 5000/5100/5300 sequence and Intel 5000P chipset to
        improve performance and reliability. It's ready for the broadest
        range of 64-bit applications and with Intel VT and Intel I/OAT
        technology to focus on high-end server market. With 8 ECC FBD DIMM
        slots, DSBF-D/SAS can support 4-channel FBDIMM DDR2 533 /667 up to
        16GB+ to significantly improve the serverboard's computing
        capability.
       DSBF-D/SAS has a full range of expansion choices: it supports next-
        generation PCI Express x 8 slot (x 8 link) and PCI Express x16
        (x8 link) slot; it protects users' investment with three PCI-X
        133/100 MHz slots and one PCI 33MHz/32 bit slot as flexible options
        for server utilization.
       The serverboard supports mainstream or next-generation storage,
        including IDE, SATAII and SAS. It has integrated 6 SATAII 300MB/s
        ports and 2 mini-SAS connectors, both have built-in RAID functions
        for better and cost-effective data protection. It covers from
        embedded SATA RAID 0, 1, 10 with most Linux drivers support for
        value level market to SAS ZCR with RAID 5 for high-end market. It
        really benefits user with the best upgrade capability and data
        protection.

  -- SPECIFICATIONs ------------------------------------
CPU          - (2) Socket LGA771 supports Dual-Core Intel Xeon Processor
                   5000/5100 and Quad-Core Intel Xeon Processor 5300.
               Front Side Bus 667/1066/1333 MHz EMT64
               2x 2M, 4M & 8M L2 cache.
CHIPSET      - Intel 5000P Memory Controller Hub (MCH)
               Intel 6321ESB I/O Controller Hub (ICH)
               Intel 6702PXH 64-bit PCI Hub
MAIN MEMORY  - (8) 240-pin slots support up to 32GB max. of fully-buffered
                   DDR2 533/667 MHz Registered ECC DIMM modules in sizes
                   of 512MB, 1GB, 2GB, 4GB.
EXPANSION    - (1) PCI-E x16 slot (x8 link)
               (1) PCI-E x8 slot  (x8 link)
               (2) PCI-X 100/133 MHz slots
               (1) 32-bit PCI/33MHz slot
               (1) PCI-X 100/133 MHz slot (supports Zero Channel RAID card)
               (1) SO-DIMM socket for optional ASMB3-SOL
STORAGE      - (1) Intel 6321 ICH IDE controller supports Single Channel
                   Bus Master IDE, UltraATA 33/66/100.
                   Also supports (6) SATA2 300MB/s. ports
                   Intel Matrix Storage (for Windows only)(supports
                     software RAID 0, 1, 10 & 5).
               (1) LSI 1068 PCI-X 8-port SAS controller supports LSI
                     integrated RAID 0, 1, 1E.
VIDEO        - Integrated ATI ES1000 VGA controller with 32MB DDR VRAM
ETHERNET     - Integrated Intel 6321+ Intel 82563EB Dual port GbE
ON-BOARD I/O - (1) Floppy connector
               (1) 24-pin ATX power connector + 8-pin ATX 12V power
                   connector + 4-pin ATX 12V power connector.
               (1) USB header (supports 2 USB ports)
               (9) 4-pin Fan header
               (2) SMBus
               (1) Chassis Intrusion
               (2) Front LAN LED
               (1) Serial port header
REAR I/O     - (1) External Serial port
               (2) External USB ports
               (1) 15-pin VGA port
               (2) RJ-45 ports
               (2) PS/2 ports for keyboard & mouse
PCB SIZE     - SSI EEB 3.61, 12" x 13"
