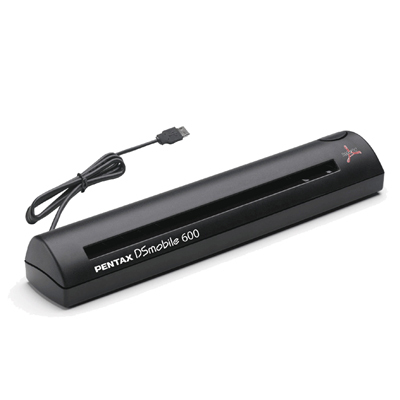

MODEL- DSMOBILE600        VENDOR- PENTAX IMAGING

FEATURES- DS Mobile 600 USB Scanner
       When exceptional quality scanning is a must and space is an issue --
        reach for the perfect solution -- The PENTAX DSmobile 600 scanner.
       This powerful, compact, lightweight 600-dpi color scanner is
        combined with dynamic software to provide exceptional quality
        scanning and easy management of documents and photos. The DSmobile
        600 is a direct replacement for the DSmobile USB but provides
        higher resolution, high speed USB 2.0 interface, and additional
        software that will enhance and simplify your scanning needs.
    Includes Scanner, (2m) USB detachable Cable, Carrying bag for scanner
      protection, Installation CD, User Manual (printable from the
      installation CD, (2) Calibration sheets, (1) Cleaning sheet,
      (2) photo scanning sleeves for scanning pictures, Installation guide.
* Small, compact design
   Measuring 1.5" in height, 2.0" in depth, 11" in length and weighing only
   12.2 ounces, the DSmobile 600 scanner will be your personal color
   scanner for high-quality images and documents in the office or on the
   road.
* No job is too small or too large
   The DSmobile 600 provides the versatility to scan media from business
   card size to 8.5 x 14" paper size.
* Just add a PC
   The unique USB power/data interface draws power directly from the PC and
   comes with a detachable USB cable.
* High performance with low power consumption
   The DSmobile 600 connects to a high-speed USB 2.0 interface yet only
   consumes only 0.2W of power when in standby mode and a maximum of 2.0W
   of power when scanning.
* Just a touch away from scanning
   One touch of the button on the on the DSmobile 600 will launch your
   choice of compatible scanning programs.  Make a preferred scanning
   program your default and that one touch will initiate that program.
* The DSmobile 600 is not just a scanner
   It is a powerful scanning package! The Pentax DSmobile scanner comes
   with everything you need to scan, straight out of the box.
* WINDOWS software:
   - DSmobileSCAN -- this programs allows scanned documents to be
     automatically saved as Adobe Acrobat format files.  An added feature
     to this software is the ability to scan with just two touches of the
     DSmobile scanner button -- one touch will initiate the program and
     another touch will initiate the scan of the document.
   - PageManager Version 7 -- An updated version of the popular software
     used with the DSmobile USB, this software allows a user to scan and
     organize digitized files with the ability to view, edit, send and save
     files in many formats.
   - TWAIN -- this driver allows a user to control all scanner details and
     settings.  A user will have an array of scanning applications to
     choose from because TWAIN is compatible with any application that uses
     TWAIN device input.

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- USB 2.0
IMAGE SENSOR - CMOS CIS (Contact Image Sensor)
RESOLUTION   - Hardware: 300 dpi optical
               Software: 9600 dpi interpolated
SCAN MODES   - 48-bit internal, outputs 24-bit true color
               8-bit gray scale
               1-bit black and white (bi-level)
SCAN AREA    - Maximum 8.5" x 14" (216 mm x 356 mm)
SCAN SPEED   - (8.5" x 11" letter size @ 200 dpi):
                  - 3 pages/minute (color)
                  - 5 pages/minute (gray scale)
                  - 5 pages/minute (B&W)
PAPER THICKNESS-
               0.1mm to 0.8mm
PAPER SENSOR - Electro-Mechanical
SOFTWARE     - Includes DSmobile Scan
                  "     TWAIN driver
                  "     PageManager version 7
REQUIREMENTS - USB (Universal Serial Bus) 2.0 (High Speed) is recommended
                 for best performance.
               Compatible with USB 1.1 (at slower scanning speed)
               Pentium II 300MHz or higher processor
               128 MB RAM (256 MB RAM for Windows XP)
               200 MB free hard disk space or more
               VGA or Super VGA Monitor
               Windows XP, 2000, ME, 98, SE
               CD-ROM drive
APPROVALS    - FCC B, CE, RoHS, WEEE
POWER SOURCE - USB powered
DIMENSIONS   - 11.0"w x 2.0"h x 1.5"d          WT.- 12.2 ounces
