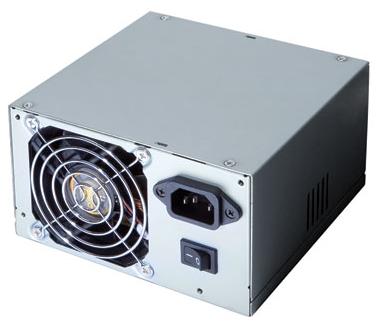

MODEL- EA500              VENDOR- ANTEC INC.

FEATURES- Earthwatts Power Supply- 500
       EarthWatts, the most environmentally friendly Power Supply yet!
       Do your part for the environment with EarthWatts power supplies. The
        earth is our most valuable resource and protecting and preserving
        it for future generations is of utmost importance. EarthWatts is
        available in three highly efficient models--380 Watt, 430 Watt, and
        500 Watt--and are all 80 PLUS certified, the newest standard in
        power supply efficiency. And that means that using EarthWatts will
        save you money on your electrical bill.
       Fully equipped with universal input, EarthWatts automatically works
        on any power grid in the world. And the built-in Active PFC makes
        EarthWatts the ideal way to reduce electrical waste and protect the
        environment.
* 80 PLUS certified--the newest standard in power supply efficiency
* High efficiency saves power, saving you money on your electrical bill
* Universal power input and active Power Factor Corrections--so it
  automatically works on any power grid in the world.
* Dual 12V output rails
* 4 SATA connectors

  -- SPECIFICATIONs ---------------------------------
INPUT             - Input Voltage        : 115VAC/230VAC
                    Input Frequency Range: 60Hz/50Hz
                    Inrush Current       : 640A @ 115V , 100A @ 230V
                    Input Current        : 12A @ 115V, 6A @ 230V
                    Hold-up Time         : 20ms at Full Load
                    Efficiency           : up to 85%
                    EMI/RFI              : FCC Class B
SWITCHES          - ATX Logic on-off
                    Additional power rocker switch
                    115/230 volt selector switch
TRANSIENT RESPONSE- +5V,+12V and +3.3V outputs return to within 5% in less
                      than 1ms for 20% load change.
P. G. SIGNAL      - 100 - 500ms
OVER VOLTAGE PROTECTION-
                    +5V trip point   < +6.2V
                    +3.3V trip point < +4.1V
                    +12V trip point  < +14.3V (Recycle AC to reset)
SPECIAL CONNECTORS- ATX12V
                    3-pin Fan Sensor
                    SATA
                    PCI Express
LEAKAGE CURRENT   - <3.5mA @ 115VAC
ENVIRONMENTAL     - Operating Temp.: 0 to 50 degrees C
                    Operating Alt. : Sea Level-10,000 ft
                    MTBF           : 80,000 hours at 25 degrees C
APPROVALS         - UL, CUL, TUV, CE, FCC, CCC, CB, C-tick
DIMENSIONS        - 5.9"w x 3.4"h x 6.1"d       WT.- 5 lbs.
www.antec.com
