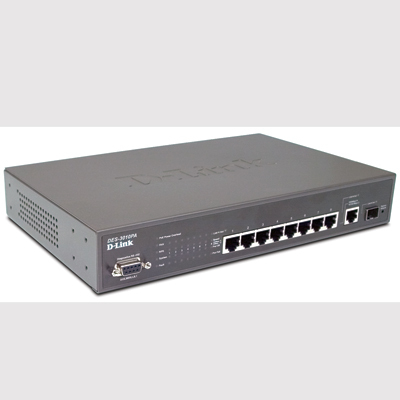

MODEL- DES3010PA-TAA      VENDOR- D-LINK

FEATURES- Managed 8-port 10/100 PoE Switch + 1 Gigabit Port + 1 SFP Slot
       Managed Layer 2 Switch with (8) 10/100Mbps PoE Ports and (1) Gigabit
        SFP and (1) 1000BASE-T copper port; Assembled in USA.
       With a 5.6Gbps switching capacity and Power-over-Ethernet, D-Link's
        DES-3010PA is a high-performance managed Layer 2 solution that
        provides an ideal choice for workgroups and departments needing
        advanced Layer 2 switching features in a small form factor 11 inch
        chassis. The DES-3010PA is a great entry-level switch for the SMB
        just starting out or the already established business looking to
        bring a managed solution to the desktop. The optional fiber uplink
        can provide connectivity for a small group of users over a larger
        distance such as on a campus or between indoor classrooms. The
        DES-3010PA has (8) 10/100Mbps Fast Ethernet ports and an SFP port
        for high-speed uplinks to servers and/or backbones.
       In addition, the DES-3010PA is also equipped with a copper
        1000Base-T port for easy uplinks to standard Gigabit copper
        switches. Finally, with support for Power-over-Ethernet on all 8
        ports, the DES-3010PA is capable of supporting IEEE 802.3af enabled
        Access Points, security cameras, IP phones and more without the
        need for additional wiring.
* High-Performance Layer 2 Switching
   With a 5.6Gbps switch fabric, the DES-3010PA is a wire-speed, high
   performance switch. It includes support for Private VLANs (for isolating
   ports to protect privacy), and Guest VLANs. Guest VLANs are useful when
   migrating end users to an 802.1x environment when existing workstations
   do not yet support the 802.1x protocol, and for delivering limited
   services such as Internet access to un-authenticated and short-term
   users. When deployed in a school campus, bookstore, coffee house, or
   other retail establishment, the DES-3010PA can be used in conjunction
   with wireless access points to create a secure Internet 'Hotspot'. This
   allows visitors to access special services or surf the Internet
   completely isolated from sensitive internal network data. And with the
   addition of up to 15.4 watts of Power over Ethernet (PoE) per port,
   powering those wireless access points has never been easier.
* Advanced Enterprise Features
   The DES-3010PA brings advanced enterprise functions to a more affordable
   level while supporting advanced features: QoS/CoS based on 802.1p, Port,
   DSCP and ToS, rich security and management features such as 802.1x port
   and MAC based RADIUS and TACACS+ authentication, secure encrypted
   management through both SSH and SSL, guest and private VLANs, bandwidth
   control, and SNMP versions 1/2c/3. The DES-3010PA also supports many of
   the features you would expect to see on a larger managed solution such
   as: IGMP snooping, IEEE802.3ad (Link Aggregation), 256 VLANs, support
   for GVRP, traffic monitoring, SYSLOG, and more.
* IEEE 802.3af Power over Ethernet
   The DES-3010PA supports 8 ports of IEEE 802.3af (PoE) and supplies up to
   15.4 watts per port to power any 802.3af compliant power device. The
   need for PoE-enabled switching devices is growing as the industry
   continues to produce PoE capable access points, IP phones, security
   cameras, PDA cradles, and more. The difficulty and cost often associated
   with running new AC power outlets to difficult to reach locations has
   made PoE an indespensable technology for SMBs, Schools, and Enterprise
   class networks. For devices that are not IEEE 802.3af compliant, the
   D-Link DWL-P50 adapter can be used to supply power to the device making
   it fully compatible with the DES-3010PA.
* Advanced Power Management
   The DES-3010PA includes advanced PoE power management capabilities not
   found in unmanaged PoE solutions. These features include individual port
   status monitoring, fast power shutdown (in the case of power supply
   failure) and voltage/current monitoring and regulation. Power management
   allows the DES-3010PA to determine the exact power draw per port and to
   balance each port s PoE power output accordingly. This in turn allows
   the switch to power higher and lower wattage devices according to user-
   definable parameters such as: maximum available power, port priority
   (critical, high, low), and maximum allowable power per port. To further
   assist the user in status and troubleshooting, the user can view the
   following statistics from the CLI or GUI at any remote location within
   the network: Powered Device (PD) classification, Status and detection of
   the PD, Power status monitoring (actual power usage and percentage
   used), and counters to measure shorts and overloads.

  -- SPECIFICATIONs ----------------------------------
SWITCH FABRIC  - 5.6Gbps
TRANSMISSION METHOD-
                 Store-and-Forward
VLANs          - Support up to 256 VLAN Groups
PRIORITY QUEUES- 4 Queues
PACKET BUFFER  - 128 KB
MULTICAST SUPPORT-
                 IGMP Snooping
CONNECTORS     - (8) 10BaseT/100BaseTX/RJ45 ports
                 (1) Gigabit SFP slot
                 (1) 1000BaseT copper port
MANAGEMENT     - In Band & Out of Band: Telnet, CLI/Console, RMON, Web-
                   based HTTP, SNMPv1/2/3, Port Mirroring, SSH 2.0, SSL.
PROTOCOL & STANDARDS-
                 IEEE: 802.3 Ethernet, 802.3u Fast Ethernet, 802.1D
                         Spanning Tree, 802.1w Rapid Spanning Tree, 802.1s
                         Multiple Spanning Tree, 802.1p Priority Tags (4
                         queues), 802.3ad Link Aggregation Control (8 ports
                         per group/6 groups per device), 802.3x Flow
                         Control, 802.1x (Port & MAC Based Network Access
                         Control), 802.1Q VLANs (up to 256), Private VLANs,
                         Guest VLANs, 802.3af Power-over-Ethernet.
                 IETF: RFC1757 RMON (4 Groups), RFC1493 Bridge, RFC1643
                         Ether-like MIB, RFC2358 ETHER LIKE_MIB, RFC2674.
                 Misc: IGMP Snooping, Telnet, TFTP Client, BootP Client,
                         DHCP Client, SNMP v1/2c/3, Rate Limiting down to
                         64k, QoS classification based on ToS, Traffic
                         Monitoring, MAC address browsing, Port
                         Description, CPU Utilization Monitoring, SNTP,
                         Radius Authentication, TACACS+ Authentication,
                         Auto-Negotiation, Port Mirroring, Broadcast Storm
                         Control, SYSLOG, GVRP.
ACCESSORIES    - DEM310GT 1000BASE-LX SFP/mini-GBIC Up to 10Km (singlemode)
                 DEM311GT 1000BASE-SX SFP/mini-GBIC Up to 550m
                 DPS510   Redundant Power Supply
APPROVALS      - FCC A, CUL, CE, VCCI
POWER SOURCE   - AC Input: 100 - 240 VAC, 50/60 Hz
                 Power Consumption         : 130 watts
                 PoE Power per port Maximum: 15.4 watts
                 PoE Power Budget          : 110 watts
DIMENSIONS     - 7.09" x 11.0" x 1.7"
www.d-link.com
