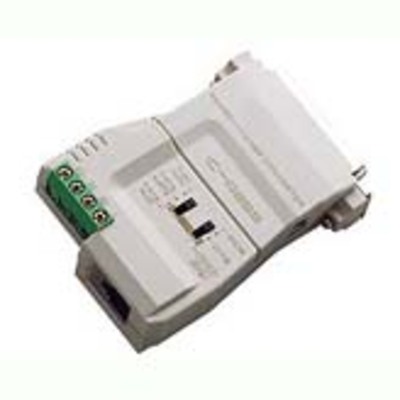

MODEL- ATENIC485S         VENDOR- ATEN TECHNOLOGY

FEATURES- RS-232 to RS-485/RS-422 Bidirectional Converter
       The IC-485S is hardware solutions to the problem of converting
        signals between two standards. Data transfer can take place at up
        to 1200m (4000 feet), over four or two wire cable for full or half
        duplex, respectively. The converters can handle any RS-485/RS-422
        device allowing it to function as a short haul modem or interface
        converter. Request to send (RTS) selection allows up to 32
        receivers to be set up in a multidrop installation, making for a
        cost effective network configuration.
       The IC-485S is a bi-directional interface converters for RS-232 and
        RS-485. With the IC-485 series, it provides Point-to-Point,
        Multidrop and Simplex operations. The IC-485S also provides an
        extra Monitoring function.
       Two slide switches are used to configure its operation mode,
        contention control, and assignment of the RS-232.
    Includes IC485S bi-directional isolated converter, Power adapter, User
      manual and Warranty registration card.
* Data Transmission Controlled by the RTS Signal.
* DCE/DTE Selectable
* Point to Point, Multidrop and Simplex/Duplex Link Selectable
* Four Wire Full Duplex/Two Wire Half Duplex
* Monitor Configuration Support
* Compact Size

  -- SPECIFICATIONs -----------------------------------
CONNECTORs         - Input : (1) DB25 female (for RS232)
                     Output: (1) 4 Post Terminal Block (for RS422/RS485)
                             (1) Grounding Tab
DATA RATE           - Up to 115.2 Kbps under 1200 m (4000 ft.)
CABLE DISTANCE      - Up to 1200 m (4000 ft.)
HOUSING             - Plastic (ABS) case
SIZE - 2.2"w x 3.2"h x 0.8"d                     WT.- 2.1 oz.
