MODEL- RPM-U              VENDOR- CHIEF MFG.

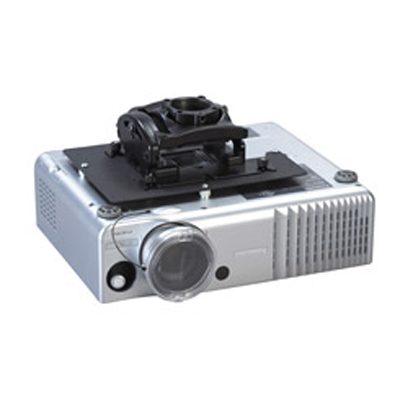

FEATURES- RPM Universal Ceiling Mount
       RPA Elite Universal Focusing on speed of installation, the all-new
        RPA Elite Series of custom and universal projector mounts were
        designed as a first-class upgrade to the industry-leading RPA
        Series. The Elite Series is packed with new easy-to-use features
        that save time and maximize projector security. RPA Elite includes
        the same great features as the RPA Series, such as independent
        roll, pitch and yaw, integrated cable management, and All-Points
        Security; packaged in a new, revolutionary design.
       In addition, unique features have been added to further improve ease
        of installation for the installer, and simplify service for the
        end-user. A select line of Speed-Connect accessories has been
        designed also to focus on speed of installation. Ideal for:
        Offices, Schools, Boardrooms, Houses of Worship.
* For compatibity search click here
* MicroZone Adjustments for fast and precise projector registration,
  including flush-mount installations.
* Q-Lock Integrated Security with Quick Release Lever -- Provides easy lamp
  and filter access and maintains registration (included with keyed locking
  models -- RPMA/RPMB/RPMC).
* Aluminum and solid steel construction for optimal strength in a
  lightweight design.
* Exclusive Centris Technology -- Self-adjusts to support different
  projector weights; Enables effortless, fingertip positioning.
* Independent roll, pitch and yaw adjustments
* Low-profile, aesthetic design
* Quick projector disconnect/reconnect without losing registration
* No assembly required
* All-Points Security System -- Exclusive locking hardware at all key
  connection points to protect against theft.
* Multiple ceiling mounting options
* Integrated Cable Management -- Allows cables to feed out of the top of
  the mount without additional accessories.
* Compatible with many accessories for all your installation needs
* Custom-Designed SLB Bracket -- For specific projector types and Universal
  models are available.

  -- SPECIFICATIONs ----------------------------------
DIMENISIONS- 6.5" x 2.75" x 5.5" (16.51 x 6.98 x 13.97 cm)
ROLL       - +/- 20 degrees
PITCH      - +/- 3 degrees
YAW        - 360 degrees
WEIGHT CAP.- 50 lbs. (18.66 kg)
www.chiefmfg.com
