MODEL- MTR-V              VENDOR- Chief Mfg.

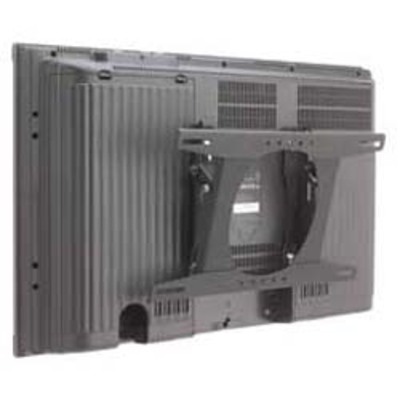

FEATURES- Fusion Universal Tilt Wall Mount- Black
       The MTR is an ultra low profile tilt wall mount for mid-size flat
        panel displays. Friction adjustable tilt and a universal VESA
        option make it a great solution for all dealers.
* Ultra low profile design just over 1 1/2" deep
* Friction adjustable tilt from 0 ~ 15 degrees
* Multiple mounting options provides single stud at 5 different positions
  and 16" center stud mounting.
* Integrated lateral shift up to 4" on a single stud and 1 1/2" on 16"
  centers.
* Q-Latch Mounting System simplifies installation
* Expanded wall plate opening provides cable access and reduces risk of
  outlet interference.
* Provides integrated security -- just add a padlock
* Heavy duty construction with steel components for a rock-solid solution.

  -- SPECIFICATIONs ----------------------------------
Depth from Wall         : 1-1/2" (38 mm)
Tilt                    : 0 degrees ~ 15 degrees
Dimensions (W x H x D)  : 18-1/2" x 10-7/8" x 1-1/2" (450 x 276 x 38 mm)
Weight Capacity         : 100 lbs (45.4 kg)
Integrated Lateral Shift: 3/4" left/right (2" left/right, single stud)
Mounting Options        : 16"/single stud
