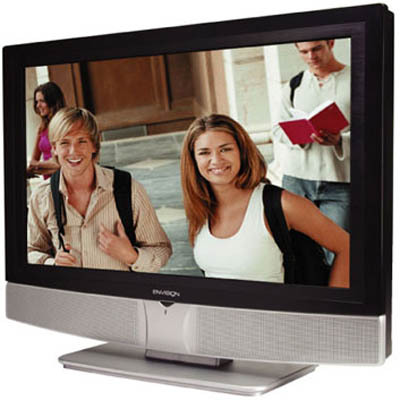

MODEL- L20W421            VENDOR- AOC INTERNATIONAL

FEATURES- Envision Series 20" LCD TV- Silver/Black finish
       Envision L20W421 brightens any room with its sleek widescreen design
        and high contrast ratio. Its multiple video inputs allow you to
        connect a progressive scan DVD player, PC, game console, or HDTV
        satellite/cable receiver.
       Enjoy your favorite widescreen programming up to 1080i resolution
        with your HD receiver. With its 8ms response time it will please
        even the most discerning gamers. Compact enough to be used as a PC
        monitor or a television in your RV. Use a VESA wall mount to
        position it anywhere in the room.
       AOC delivers a feature loaded 20" widescreen LCD-TV at an impressive
        price with the Envision L20W421.
    Includes LCD TV, Power cord, RGB DB15 cable, PC audio cable, Remote
      control with batteries, Base, User manual, Warranty documents.
* HDTV Ready
* TV, Composite, S-Video, Component and PC Inputs
* 1366 x 768 Resolution
* 500 cd/m2 Brightness
* 1000:1 Contrast Ratio
* 8ms Response Time
* Closed Captioning & V-Chip Parental Control
* VESA Wall Mount Compliant

  -- SPECIFICATIONs -----------------------------------
DISPLAY PANEL - 20" diagonal LCD
                Display Area  : 445mm x 250mm
                Display Colors: 16.7 million
                Viewing Angle : 176 degrees (horizontal)
                                176 degrees (vertical)
RESOLUTION    - 1366 x 768
ASPECT RATIO  - 16:9
PIXEL PITCH   - 0.1084mm x 0.3255mm
BRIGHTNESS    - 500 cd/m2 (typical)
CONTRAST RATIO- 1000:1 (typical)
RESPONSE TIME - 8ms (typical)
TV FUNCTION   - TV Tuning   : NTSC M
                Color System: NTSC
                Sound System: MTS + SAP
                Closed Caption
                V-Chip Parental Control
AUDIO         - Built-in Speakers, 6 watts total
                Headphone output
VIDEO INPUTS  - Video 1        : RCA Composite + L/R Audio
                Video 2        : S-Video + L/R Audio (Shared with Video1)
                Video 3        : Component + L/R Audio
                                   (EDTV 480p, HDTV 720, 1080i)
PC INPUT      - Signal Input   : Video: 0.7Vp-p RGB Analog
                                        TTL Level Separate Sync
                H-Frequency    : 31.5KHz
                V-Frequency    : 60Hz
                Pixel Frequency: 25MHz
                Plug & Play    : DDC2B
                Max. Resolution: 1360 x 768 x 60Hz
USER CONTROLS - Power Key, Menu Key, Up/Down Keys, +/- Keys, Source Key
OSD FUNCTION  - Sound (All Modes): Volume, Balance, Bass, Treble, AVL,
                                     Loudness, Preset, Equalizer.
                Picture (PC Mode): Brightness, Contrast, Position, Video
                                     Noise, Sharpness, Auto Adjust, Info,
                                     Color Temperature, Reset to Default.
                Picture (TV, Composite, S-Video Modes):
                                   Brightness, Contrast, Color, Sharpness,
                                     Tint, Dynamic Skin Tone, White Tone,
                                     size, Reset to Default.
                Picture (Component Mode):
                                   Brightness, Contrast, Color, Sharpness,
                                     Tint, White Tone, Size, Reset to
                                     Default.
                Other            : Source OSD, Language, Child Lock
                                     (V-Chip), Timers, CC, Auto-Search,
                                     Fine Tune, AFC, Skip, Lock, Tuning
                                     Mode, System Standard.
MISCELLANEOUS - Video: De-interlacer, Digital Comb Filter
                Other: HDTV Input Compatible, Sleep Timer, VESA 100mm Wall
                         Mount Compliant, Multi-function Remote, V-Chip
                         Parental Control, Closed Caption.
APPROVALS     - FCC, cULus
POWER SOURCE  - 100-240VAC, 50/60Hz (Internal); Consumption 90 watts max.
DIMENSIONS    - 21.5"w x 17.5"h x 7.3"d         WT.- 16.5 lbs.
 www.aocmonitor.com
