MODEL- JJ-P2S211-S6       VENDOR- SIIG

FEATURES- Dual Profile POS 2S
       Two serial (16550) ports, Universal PCI card design with built-in
        32-byte FIFO buffers to work in 32/64-bit, 3.3V/5V PCI and PCI-X
        slots.

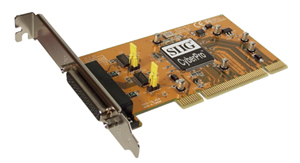

    Includes Dual profile POS 2S PCI card, Spare low profile bracket,
      Mini 2-port fan-out cable (33-inch), Driver CD and Installation
      guide.
* Supports 32-/64-bit, 3.3V/5V PCI and PCI-X slots
* Two high-speed 16550 UART serial ports (9-pin) support data rate up to
  230 Kbps.
* Will work as standard RS232 port or with 5V or 12V power output for
  devices that require power (such as handheld scanners, table scanners,
  POS displays, etc.). Configurable via jumpers with silk-screened settings
  on PCB.
* Can be installed in Low Profile or Standard Height chassis with provided
  brackets.
* IRQ sharing reduces IRQ conflicts
* Built-in 32-byte FIFO buffers dramatically increase data transmit/receive
  speed, especially under Windows multitasking environment.
* 4-layer PCB board: separate layers for data & grounding. Greatly reduces
  signal noise & loss. Delivers more reliable high-speed data transfers.
* Enhanced bracket design to prevent bending. Connected to PCB with
  washered screws for a more secure connection.
* Supports 3.3V operation with 5V tolerance
* Conforms to PCI v2.2 universal card standard. PCI-X & 64-bit compatible.
* Supports PME # (Power Management Event). Allows device to request a
  change in system power state (wake up system).
* Use SMT (Surface Mount Technology) type electrolytic capacitor. Low ESR
  (Equivalent Series Resistance) aluminum electrolytic capacitor. Offers
  much improved noise suppression & achieves higher levels of performance/
  reliability.
* Use SMT (Surface Mount Technology) type crystal. Offers cleaner design
  than traditional DIP-type crystal. Provides greatly improved grounding,
  which reduces EMI emission & improves performance/reliability.

  -- SPECIFICATIONs ------------------------------------
INTERFACE/BUS- 32-bit PCI
CHIPSET      - CyberPro
CONNECTORS   - (1) 9-pin RS232 Serial port (includes mini 2-port fan-out
                   cable, 33 inches).
O/S SUPPORT  - Windows 95/98/98SE/ME/NT4.0/2000/XP/Server 2003
APPROVALS    - FCC B, CE
