MODEL- RR1740             VENDOR- HPT USA/HIGHPOINT TECH

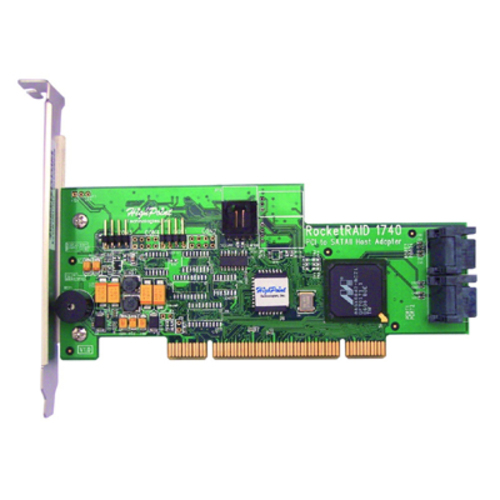

FEATURES- RocketRAID 1740A 4-Channel PCI SATA II RAID Controller
       The HighPoint RocketRAID 1740 PCI SATA II RAID Controller offers the
        features needed for entry level storage environments. The
        RocketRAID 1740 delivers optimized performance and features through
        the use of HighPoint's industry-leading RAID technology.
       The RocketRAID 1740 is the latest product in storage technology,
        leveraging the storage performance in SATA II and supporting the
        fastest available throughput while supporting enterprise level
        features such as Native Command Queuing (NCQ), staggered drive
        spin-up and SAF-TE enclosure management support.
       The RocketRAID 1740 PCI SATA II RAID Controller delivers optimum
        performance with speeds of up to 300MB/sec per port.
       The RocketRAID 1740 PCI SATA II RAID Controller is an integrated
        family of advanced storage connectivity solutions. These products
        are designed to provide reliable connectivity, intelligence and
        scalability. Meeting tomorrow's connectivity needs today, the
        RocketRAID 1740 PCI SATA II RAID Controlller extends the
        capabilities of software and hardware, relieving them from their
        data-management burdens.
       The RocketRAID 1740 PCI SATA II RAID Controller is backward
        compatible to RAID arrays created with HighPoint SATA I RocketRAID
        1640 controller. All RAID arrays created on the RocketRAID 1640 can
        be moved over to the RocketRAID 1740 SATA II PCI RAID Controller
        and RAID arrays can be expanded with the new features available in
        the RocketRAID 1740 such as Online Capacity Expansion and Online
        RAID Level Migration.
       HighPoint offers the broadest range of support for all major
        operating systems to ensure OS and hardware server compatibility.
        Drivers are available for all major operating systems, including
        Windows, Linux and FreeBSD.
* Backward compatible to RocketRAID 1640 RAID arrays
* Native Command Queuing (NCQ)
* Online Capacity Expansion (OCE) and Online RAID Level Migration (ORLM)
* Staggered drive spin up
* Hard Disk (Activity/Failed) LED chassis function
* SAF-TE Enclosure Management Functions
* BIOS Booting (INT13) to RAID array
* Quick and Background initialization for instant RAID access
* Write through and write back cache for RAID arrays
* Hot swap and hot spare
* Online array roaming
* Automatic detect drive to rebuild degraded RAID
* S.M.A.R.T array monitoring for hard drive status and reliability
* 64-bit LBA for RAID arrays greater than 2TB
* Low profile form factor for 1U chassis
* Web browser-base software (Web GUI)
* Command Line Interface (CLI)
* SMTP email notification for events and error reporting
* Remote array management through (Web GUI, RAID GUI and CLI)
* Support Windows (XP, 2000, Server 2003), Linux and FreeBSD
* RoHS Compliant

  -- SPECIFICATIONs ------------------------------------
HOST SIDE INTERFACE - 32-bit PCI @ 33/66 MHz
                      Low profile form factor for 1U chassis
DISK INTERFACE      - SATA I or SATA II
# OF CHANNELS       - 4 SATA Channels
RAID LEVEL SUPPORT  - RAID 0, 1, 5, 10, 50, and JBOD
O/S SUPPORT         - Windows, Linux (open source) and FreeBSD (open
                        source).
RAID MANAGEMENT TOOL- BIOS
                      Web based RAID
                      Management Software and CLI
MISCELLANEOUS       - Hot swap/hot spare
                      64-bit LBA for over 4TB partition support
                      Drive Activity/Failed LED support
                      SMTP support for email notification
                      OCE/ORLM
                      Automatic RAID Roaming
                      Online Array Roaming
APPROVALS           - FCC B, CE
DIMENSIONS          - 2.527"w x 5.929"d
www.highpoint-tech.com
