MODEL- 230100110          VENDOR- PINNACLE SYSTEMS

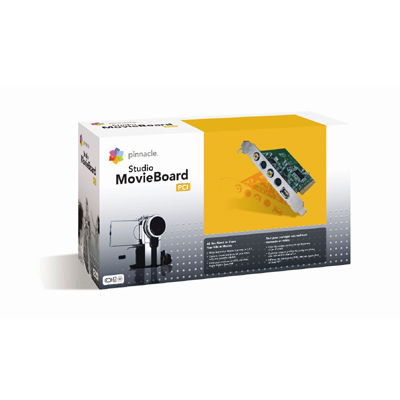

FEATURES- Studio MovieBoard PCI
       All You Need to Share Your Life in Movies!
       Preserving and enhancing your old home movies and new digital video
        is easier than ever with this all-in-one hardware and software
        combination from Pinnacle, the worldwide leader in home video
        editing.
       Pinnacle Studio MovieBoard is the versatile movie making solution
        for people who want to make great home movies without limitation,
        offering flexible video capture capabilities with rich editing
        tools. The PCI card captures video from any analog or digital
        source to make great movies from existing VHS or Hi8 tapes, or new
        DV camcorders with plug and play ease. The included Studio Titanium
        Edition software offers the best of powerful yet easy-to-use video
        tools, and output options including CD, DVD, the Web, and mobile
        device outputs such as the Apple iPod and Sony PSP.
    Includes Pinnacle Studio Software install DVD, Pinnacle Studio,
      Pinnacle InstantDVD Recorder, Pinnacle MediaManager, Pinnacle Studio
      Bonus DVD, Pinnacle Studio User Guide, 500-PCI Internal Video Capture
      Card.
* Complete analog/digital hardware & software solution from the leader in
  both categories.
* Now includes Pinnacle Studio Titanium -- powerful, yet intuitive editing
  software with the most extensive effects offering to date.
* Now has output for most popular mobile devices (Apple iPod, Sony PSP).
* DivX Pro 6 encoding for optimum performance (best resolution at the
  fastest rate).
* Built in DVD authoring or Instant DVD

  -- SPECIFICATIONs ------------------------------------
CONNECTORS   - Composite video input/output (RCA connector) PAL, SECAM
                 (input only), NTSC.
               S-Video input/output (mini-DIN connector) PAL, SECAM (input
                 only), NTSC.
               IEEE 1394 In/Out connector (6-pin type)
ANALOG VIDEO CAPTURE TO COMPUTER-
               Video format   : PAL/SECAM (SECAM input only)
               Frame rate PAL : 25 frames per second/50 fields per second
               Frame rate NTSC: 30 frames per second/60 fields per second
               Frame size PAL : 720x576
               Frame size NTSC: 768x480
               Compression    : MPEG-2, MPEG-1, DV, MJPEG (User selectable.
                                  Available real-time capture formats
                                  depend on CPU speed.)
VIDEO PLAYBACK FROM COMPUTER-
               Analog PAL/NTSC output
               DV (IEEE 1394) output to camcorder 25 Mbit/s. Full camera/
                 device control support.
IMPORT FORMAT- Video  : DV, AVI, MPEG-1, MPEG-2, DivX, MPEG-4, 3GP
                          (MPEG-4), WMV, Non-encrypted DVD titles.
               Audio  : WAV, MP3
               Graphic: BMP, JPG, PCT, TGA, TIF, WMF
EXPORT FORMAT- Video CD (VCD) or S-VCD with optional CD burner (CD-R or
                 CD-RW).
               DVD with optional DVD burner (DVD-R, DVD-RW, DVD+R or
                 DVD+RW).
               DV, AVI, DivX, RealVideo 8, Windows Media 9, MPEG-1, MPEG-2,
                 MPEG-4 files.
               Apple iPod and Sony PSP compatible (MPEG-4) formats
               Dolby Digital 2 channel & 5.1 channel audio
REQUIREMENTS -
      Minimum: Windows XP (SP2 or higher)
               Intel Pentium or AMD Athlon 1.4 GHz or higher (2.4 GHz or
                 higher recommended).
               512 MB RAM (1 GB recommended)
               DirectX 9 or higher compatible graphics card with 64 MB
                 (ATI Radeon or NVIDIA GeForce 3 or higher with 128 MB
                 recommended).
               DirectX 9 or higher compatible sound card (Creative Audigy
                 or M-Audio recommended).
               1 GB of disk space to install software and 3+ GB to install
                 bonus content.
               1 PCI slot
               DVD-ROM drive to install software
               Optional: CD burner for creating Video CDs or Super Video
                           CDs (S-VCDs).
                         DVD burner for creating DVDs
                         Sound card with surround sound output required for
                           preview of surround sound mixes.
www.pinnaclesys.com
