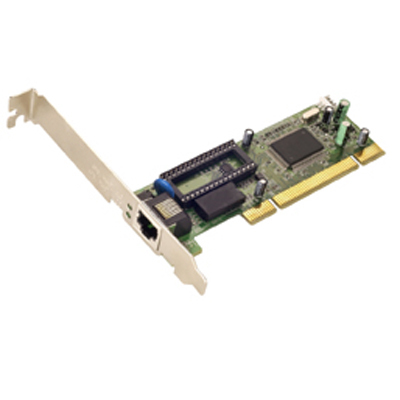

MODEL- USR-997900A        VENDOR- US ROBOTICS

FEATURES- 10/100 Mbps PCI Network Card
       Access the PCs on your network to retrieve data files, compete in
        multi-player games, share music, and utilize printers and other
        network devices.
       With Wake on LAN (WoL) functionality, you can even remotely power
        up, or down, your computer to perform routine maintenance functions
        from a centralized location. And by adding a USRobotics Broadband
        Router, you can share your existing cable, DSL, or satellite
        broadband Internet access with all of the PCs on your network.
       Information is key in today's world. Access that information from
        any one of the PCs in your home or office with the powerful, yet
        easy to install, USRobotics 10/100 Mbps Network Card.
    Includes US Robotics 10/100 Mbps Network Card, Wake on LAN (WoL) cable,
      Quick Installation Guide and Installation CD-ROM.
* Network your PCs to share cable, DSL, or satellite Internet access
   Add a USRobotics Broadband Router to your network and share your
   existing cable, DSL, or satellite broadband Internet access with all of
   the PCs on your network.
* Fast 10/100 Mbps speed
   Auto-sensing 10BASE-T/100BASE-TX RJ-45 port negotiates highest supported
   network speed--works at speeds of 10 or 100 Mbps (half-duplex) and 20 or
   200 Mbps (full-duplex).
* Wake on LAN (WoL) for emote management
   Remotely power up, or down, your computer to perform routine maintenance
   functions from a centralized location.
* 2-Step installation
   The US Robotics 10/100 Mbps Network Card is designed for easy
   installation and use and to work with the widest range of hardware and
   operating systems, including Windows, UNIX, NetWare, and Linux (see
   Minimum System Requirements).
* Ideal for home and office networks
   Access the PCs on your network to retrieve data files, compete in multi-
   player games, share music, and utilize printers and other network
   devices.

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- 32-bit PCI Local Bus Specification, Rev. 2.2 or later
CONNECTORs   - (1) 10BaseT/100BaseTX/RJ45 port
STANDARDS    - Full-duplex IEEE 802.3 10BASE-T
               Full-duplex IEEE 802.3u 100BASE-TX
               Low power 3.3 V device
               ACPI, DMI, Wired for Management (WfM) 2.0 support, 802.3x
REQUIREMENTS - Any of the following operating systems: Windows 98SE/NT 4.0/
                 2000/Me/XP, SCO UNIX, NetWare, and Linux.
               Available PCI-bus slot (PCI 2.2 compliant)
               500K available hard disk space for driver installation
               2x or better CD-ROM drive (for Installation CD-ROM)
               RJ-45 Ethernet cable (not included)
APPROVALS    - FCC approved (Part 15 Class B)
               IC approved (ICES-003)
               UL/CUL Listed
DIMENSIONS   - 2.56"w x 0.71"h x 4.72"d        WT.- 0.12 lbs.
      www.usr.com
