Product Description:
Moxa PD Frame
Introduction
|

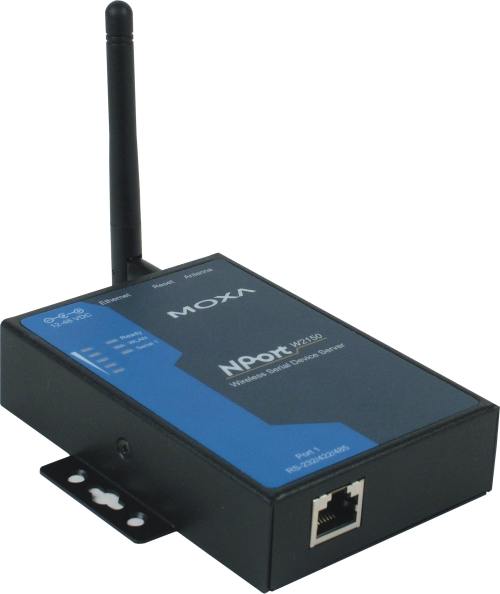

The NPort W2250/2150 Wireless
Serial Device Server extends wireless
networking capabilities to printers, scales, medical equipment,
manufacturing machinery, bar code readers, card readers, point-of-sale
equipment and other data collection devices. NPort W2250/2150's
RS-232/422/485 3-in-1 serial interface is suitable for use with most
serial devices. Link up to 2/1 serial devices to your wireless network
via one NPort Server IP address.
802.11b Wireless Connectivity to Serial
Devices
For hard-to-wire situations, a wireless Serial Device Server
is the
ideal solution to reduce the number of connection cables. When using
Infrastructure Mode or Ad-Hoc Mode, NPort W2250/2150 can communicate
with any host computer via an access point or another NPort W2250/2150
located up to 100 meters away in an open area.
Works with Existing Software, Saving
you Time and Money
NPort W2250/2150 supports field proven Real
COM/TTY
drivers for Windows and Linux system, ensuring that existing PC
software will still work when used with the new Wireless LAN
infrastructure. TCP Server, TCP Client, and UDP modes are also
supported so that IP-based software (e.g., Telnet) can use IP and TCP
port number to access each device directly.
Easy-to-use Remote Management and
Configuration Tools
NPort W2250/2150 comes with a Windows utility
that
automatically searches for and locates the Wireless Serial Device
Server over an Ethernet network. An easy-to-use Wizard (via the web
console) guides you through the entire installation in just
a few minutes.
Dimensions
Pin Assignment

|
Features
|
 |
Link any serial device to a Wi-Fi 802.11b network |
|
|
2 or 1 RS-232/422/485 ports, at up to 230.4 Kbps |
|
|
Web-based configuration via built-in Ethernet or WLAN |
|
|
Supports Windows/Linux COM driver |
|
|
Supports TCP Client mode, TCP Server mode and UDP mode |
|
|
Secure data access via standard WEP |
|
|
Compact sized, robust metal case fits all applications |
|
|
Specifications
|
|
|
|
|
|
|
|
| Built-in 1.5 KV magnetic isolation |
|
|
|
|
| |
| WLAN |
|
|
|
|
|
|
|
|
|
| 15 dBm ±2 (CH1-Ch13), 12dBm ± 2 (CH14) |
|
|
|
|
| -84 dBm @ 11 Mbps, -87 dBm @ 5.5 Mbps |
|
|
|
|
| 11 Mbps (max.) with auto fallback (11, 5.5, 2, 1 Mbps) |
|
|
|
|
| Up to 100 meters (@11 Mbps, in open areas) |
|
|
|
|
| WEP 64-bit/128-bit data encryption |
|
|
|
|
|
|
|
| Infrastructure mode, Ad-Hoc mode |
|
|
|
|
| |
| Console |
|
|
|
| Ethernet x 1, RS-232 console x 1 (Port 1) |
|
|
|
|
| |
| Software Features |
|
|
|
| ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP,
SMTP |
|
|
|
|
| Windows utility for Windows 98/ME/2000/XP/2003 |
|
|
|
|
| Web browser, serial/telnet console, or Windows utility |
|
|
|
|
| |
| Power Requirements |
|
|
|
|
|
|
| 250 mA @ 12V, 138 mA @ 24V |
|
|
|
|
| |
| Environmental |
|
|
|
| 0 to 55°C (32 to 131°F), 5 to 95% RH |
|
|
|
|
| -20 to 85°C (-4 to 185°F), 5 to 95% RH |
|
|
|
|
| |
| Regulatory Approvals |
|
|
|
| |
| Mechanical |
|
|
|
| 77 x 111 x 26 mm (without ears or antenna) |
|
|
|
|
| 100 x 111 x 26 mm (without antenna) |
|
|
|
|
|
|
|
| Aluminum sheet metal (1 mm) |
|
|
|
|
| |
| Serial |
|
|
|
| 2 ports (NPort W2250), 1 port (NPort W2150) |
|
|
|
|
| RS-232/422/485, 8-pin RJ45 |
|
|
|
|
| |
| Serial Communication Parameters |
|
|
|
| None, Even, Odd, Space, Mark |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
Ordering Information
|
|
|
| 1-port RS-232/422/485 Device Server with 802.11b
WLAN, antenna, US band, US plug |
|
|
|
| 2-port
RS-232/422/485 Device Server
with 802.11b WLAN, antenna, US band, US plug |
|
|
|
| |
|
|
| 1-port
RS-232/422/485 Device Server with 802.11b WLAN, antenna, Euro band,
Euro plug |
|
|
|
| 1-port
RS-232/422/485 Device Server with 802.11b WLAN, antenna, Euro band, US
plug, CCC |
|
|
|
| 1-port
RS-232/422/485 Device Server
with 802.11b WLAN, antenna, Euro band, UK plug |
|
|
|
| 1-port
RS-232/422/485 Device Server
with 802.11b WLAN, antenna, Euro band, Australia plug |
|
|
|
| 1-port
RS-232/422/485 Device Server with
802.11b WLAN, antenna, Euro band, JP plug |
|
|
|
| 2-port
RS-232/422/485 Device Server
with 802.11b WLAN, antenna, Euro band, Euro plug |
|
|
|
| 2-port
RS-232/422/485 Device Server
with 802.11b WLAN, antenna, Euro band, US plug, CCC |
|
|
|
| 2-port
RS-232/422/485 Device Server
with 802.11b WLAN, antenna, Euro band, UK plug |
|
|
|
| 2-port
RS-232/422/485 Device Server
with 802.11b WLAN, antenna, Euro band, Australia plug |
|
|
|
| 2-port
RS-232/422/485 Device Server with
802.11b WLAN, antenna, Euro band, JP plug |
|
|
|
| NPort
W2250 or W2150 x 1
RJ45 to RJ45 Ethernet cross-over cable
RJ45 to male DB9 cable
Power adaptor, Warranty booklet
CD-ROM, Quick Installation Guide
|
|
|
|
| |
|
Optional Accesories
|
|
|
| DIN-Rail
Mounting Kit (35 mm) |
|
|
|
| RJ45 to male
DB9 cable: 150 cm |
|
|
|
| RJ45 to female
DB9 cable: 150 cm |
|
|
|
