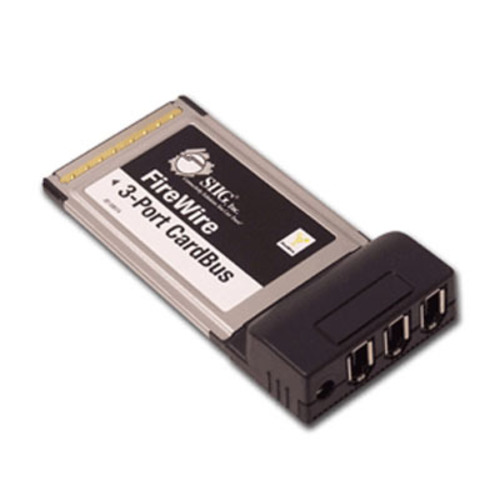

MODEL- NN-PCM312-S2       VENDOR- SIIG

FEATURES- 1394 3-Port CardBus
       Three-port 1394 (FireWire) CardBus PC card with deluxe DV editing
        software (with MPEG-2 support) and one 1394 6-/4-pin DV cable.
       Upgrades your notebook and PC computer with 1394 interface for
        multiple 1394 device connections.
       Ready-to-go kit includes deluxe DV editing software (w/MPEG 2
        support) and one 1394 6/4-pin DV cable.
       Built-in power jack for optional power adapter (power adapter
        purchased separately).
       Works with various types of DV camcorders (Sony, Panasonic, Canon,
        JVC, Sharp and more) hard disk drives (self-powered), CD-RWs/DVD-
        ROMs, MO drives, removable drives, scanners, digital cameras, and
        audio/video devices, such as TV, VCR and set-top box.
* Fully compliant with provisions of IEEE standard 1394-1995 for high
  performance serial bus and IEEE standard 1394a-2000.
* Fully compliant with 1394 OHCI Specification (Release 1.1)
* Hot-swapping, dynamic reconfiguring of up to 63 devices on the bus; no
  need to turn off the system while adding or removing 1394 devices.
* 32-bit CRC checking on reception of 1394 data packets.
* Supports asynchronous and synchronous data transfer rates of
  400/200/100Mbps.
* Optional power adapter (12V 1A, SIIG part # NN-ADAP11, available via SIIG
  Upgrade Center) is available for bus-powered 1394 devices.

  -- SPECIFICATIONs ------------------------------------
INTERFACE/BUS- 32-bit CardBus
CONNECTORs   - (3) IEEE-1394a/Firewire 400 ports
CHIPSET      - TSB43AB23 (TI single chip)
O/S SUPPORT  - Windows 98SE/ME/2000/XP/Server 2003
REQUIREMETNS - Pentium-class (300MHz) notebook computer
               available CardBus Type II slot
               Windows 98SE or later
               Recommended system for Digital Video creating/editing:
                 - Pentium II 400 MHz portable computer
                 - 64MB RAM and CD-ROM drive
                 - 80MB of available hard disk space
                 - Video card with 4MB RAM (PCI or AGP)
                 - Windows 98SE or later
APPROVALS    - FCC Class B (DoC) & CE
