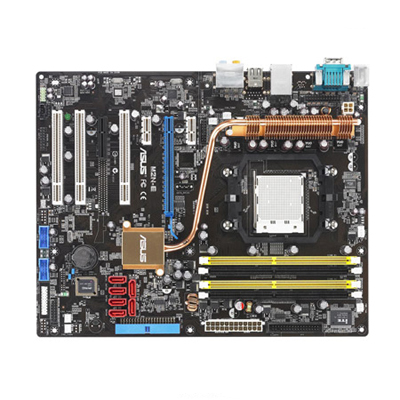

MODEL- M2N-E              VENDOR- ASUS

FEATURES- nVIDIA Socket AM2 Motherboard
       NVIDIA nForce 570 Ultra MCP
       ASUS Fanless Design: Heat-pipe Thermal solution
       8-Channel High Definition Audio and ASUS Crystal Sound Noise Filter
       AI Gear, AI Nap, ASUS CrashFree BIOS3
       AI Lifestyle Series motherboards bring lifestyle and personal
        computing together. They provide better system performance for
        graphics-intensive applications such as 3D games and deliver
        cutting-edge audio features that dramatically enhance the quality
        of voice signal. Thoughtful design further allows quick and easy
        system setup. To create a peaceful environment, several new and
        improved innovations are included to reduce noise and temperature.
       Don't change your way of life for a computer. Instead let the ASUS
        Lifestyle Series improve the quality of your life.
    Includes Motherboard, Floppy disk drive cable, UltraDMA 133/100/66
      cable, (4) SATA cables, (2) SATA power cable for 4 devices,
      I/O Shield, User's manual.
* NVIDIA nForce 570 Ultra MCP
   NVIDIA nForce 570 Ultra media and communications processors (MCPs)
   features AMD Socket AM2 processor support, 1 GHz HyperTransport link.
   With 6 Serial ATA ports enabled through the SATA 3Gb/s RAID controller,
   nForce 570 Ultra MCP satisfies favorable multi-task processing and
   better data security. Gigabit LAN controllers provide the total
   solutions for networking needs. High Definition Audio Interface enriches
   your life. Those perfect combinations of NVIDIA nForce 570 Ultra MCP
   deliver exceptional performance for gaming and entertainment.
* AMD Socket AM2
   The M2N-E supports AMD socket AM2 single-core Athlon 64/Sempron and
   dual-core Athlon 64 X2/Athlon 64 FX processors with 2MB/1MB/512KB L2
   cache, which is based on 64-bit architecture. It features 2000/1600 MT/s
   HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and
   AMD Cool 'n' Quiet! Technology.
* Dual-Core CPU
   The advanced processing technology contains two physical CPU cores with
   individually dedicated L2 caches to satisfy the rising demand for more
   powerful processing capability.
* Dual-Channel DDR2 800
   DDR2 is the next generation memory technology to replace the current
   DDR. With the highest speed up to 800MHz, DDR2 memory provides great
   performance for 3D graphics and other memory demanding applications.
* ASUS AI Lifestyles Features
   - AI Gear
     To balance both system performance and quietness, AI Gear allows users
     to choose from profiles to adjust CPU frequency and CPU Core voltage,
     minimizing system noise and power consumption. Users can change the
     mode in real-time under operating system to suit their needs.
   - AI Nap
     With AI Nap, users can instantly snooze your PC without terminating
     the tasks. System will continue operating at minimum power and noise
     when user is temporarily away. It keeps downloading files or running
     applications in quietest state while you're sleeping. Simply click
     keyboard or mouse, you can swiftly wake up the system in few seconds.
   - ASUS Crystal Sound
     This feature can enhance speech-centric application like Skype, online
     game, video conference and recording.
   - Noise Filter
     This feature detects repetitive and stationary noises like computer
     fans, air conditioners, and other background noises then eliminates it
     in the incoming audio stream while recording.
   - Fanless Design
     Cooling fans, though a popular thermal solution, also come with noise
     and malfunction likelyhood. ASUS Motherboard's fansless concept is
     specifically created to provide a cool environment without all the
     baggage.
     ASUS has devoted special efforts to address the thermal issues across
     the motherboard, and most notably the areas that reside the CPU,
     power, VGA, and chipsets. The heat pipe and heat sinks were tailor
     made to dissipate heat in the most efficient manner.
* Maximize Gaming Performance
   - ASUS O.C. Profile
     The motherboard features the ASUS O.C. Profile that allows users to
     conveniently store or load multiple BIOS settings. The BIOS settings
     can be stored in the CMOS or a separate file, giving users the freedom
     to share and distribute their favorite overclocking settings.
   - Precision Tweaker
     It offers ways to raise system performance inch-by-inch and step-by-
     step to achieve maximum performance! This is about getting the most
     out of your machine and taking pride in your customized computer.
       - vDIMM - Take control of how much power is going into the memory
         modules. ASUS gives you 15-step voltage control to the DIMM.
       - vCore - Find out "exactly" how much power your CPU needs. Fine-
         tune it with 0.0125 volts at a time!
       - SFS (Stepless Frequency Selection) allows
           - FSB tuning from 200MHz up to 400MHz at 1MHz increment
           - PCI Express frequency tuning from 100MHz up to 200MHz at 1MHz
             increments.
   - AI NOS
     Applications such as 3D games and video editing demand a huge chunk of
     system resource. Inject "nitrous oxide" into your CPU! The patented AI
     NOS (Non-delay Overclocking System) technology intelligently detects
     system load and automatically boosts performance for the most
     demanding tasks. Unlike other dynamic overclocking techniques, AI NOS
     reacts much faster to satisfy your unending need for speeds.
   - PEG Link
     This latest technology, PEG (PCI Express Graphics) Link Mode, is a
     unique feature that enables users to boost graphics card performance
     for superior video quality. PEG Link allows users to raise GPU and VGA
     memory throughput via the motherboard BIOS the same way system bus and
     memory bus are tweaked. PEG Link Mode enables powerful video
     performance on DX8 and DX9 applications. ASUS engineers carefully
     fine-tuned the parameters for every single PCI-Express card to provide
     system stability during high-speed graphics operation.
* ASUS EZ DIY
   - ASUS CrashFree BIOS 3
     The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data
     from a USB flash disk containing the BIOS file. This utility saves
     users the cost and hassle of buying a replacement BIOS chip.
   - ASUS EZ Flash 2
     EZ Flash 2 is a user-friendly BIOS update utility. Simply press the
     pre-defined hotkey to launch this tool and update BIOS from a USB
     flash disk before entering the OS. You can update your BIOS only in a
     few clicks without preparing an additional floppy diskette or using an
     OS-based flash utility.
   - ASUS Music Alarm
     Wake up to the music of your choice instead of the irritating sound of
     an alarm clock. The ASUS Music Alarm gives you a personal wake-up call
     with your favorite CD music even when system is off.
* Interface Features
   - Gigbit LAN
     The NVIDIA native Gigabit LAN controller delivers transfer speeds up
     to ten times faster than conventional 10/100 Ethernet connections.
     Gigabit LAN is the networking standard for the early future and is
     ideal for handling large amounts of data such as video, audio, and
     voice.
   - High Definition Audio
     Enjoy high-end sound system on your PC! The onboard 8-channel HD audio
     (High Definition Audio, previously codenamed Azalia) CODEC enables
     high-quality 192KHz/24-bit audio output, jack-sensing feature,
     retasking functions and multi-streaming technology that simultaneously
     sends different audio streams to different destinations. You can now
     talk to your partners on the headphone while playing a multi-channel
     network games. All of these are done on one computer.
   - GreenASUS
     The motherboard and its packaging comply with the European Union's
     Restriction on the use of Hazardous Substances (RoHS). This is in line
     with the ASUS vision of creating environment-friendly and recyclable
     products and packaging to safeguard consumers' health while minimizing
     the impact on the environment.

  -- SPECIFICATIONs ----------------------------------
CPU          - Supports AMD Socket AM2 Athlon 64 X2/Athlon 64 FX/Athlon 64/
                 Sempron.
               AMD Cool 'n' Quiet Technology
               AMD64 architecture enables simultaneous 32-bit and 64-bit
                 computing.
               AMD Live! Ready
               2000/1600 MT/s Front Side Bus
BIOS         - 4Mb AWARD BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
CHIPSET      - NVIDIA nForce 570 Ultra MCP(media and communications
                 processor).
MAIN MEMORY  - (4) 240-pin DIMM Sockets support max. 8GB DDR2-800/667/533
                   ECC and non-ECC un-buffered memory.
                   Dual Channel Memory Architecture
EXPANSION    - (3) 32-bit PCI slots (PCI v2.2)
               (1) PCI-Express x16 slot
               (1) PCI-Express x4 slot
               (2) PCI-Express x1 slots
AUDIO        - Integrated ADI 1988 8-channel High Definition Audio CODEC
                 supports Jack-Sensing, Enumeration, Multi-streaming and
                 Jack-Retasking. S/PDIF out on back I/O port.
VIDEO        - None on-board
ETHERNET     - Integrated nForce 570 Ultra MCP built-in Gigabit MAC with
                 external Marvell PHY.
WIRELESS LAN - None
STORAGE/RAID - NVIDIA nForce4 SLI MCP supports:
                 (1) Ultra DMA 133/100/66/33
                 (6) Serial ATA 3.0Gb/s
               NVIDIA MediaShield RAID supports RAID 0, 1, 0+1, 5 and JBOD
                 span across Serial ATA drives.
FIREWIRE     - None
I/O PORTS    - Back Panel: (2) PS/2 Mouse & Keyboard ports
                           (1) Coaxial S/PDIF Output
                           (1) LAN (RJ45) ports
                           (4) USB 2.0/1.1 ports
                           (1) Serial (COM) port
                           (6) 8-channel Audio ports
               Internal  : (3) USB 2.0 connectors supports additional six
                               USB 2.0 ports.
                           (1) Floppy disk drive connector
                           (1) IDE connector for two devices
                           (6) SATA connectors
                           (1) CPU/(4) Chassis/(1) Power Fan connectors
                           (1) S/PDIF output connector
                           ADH connector
                           (1) Parallel connector
                           Chassis Intrusion connector
                           Front Panel Audio connector
                           (1) S/PDIF output connector
                           CD audio in
                           24-pin ATX Power connector
                           System panel connector
                           4-pin ATX 12V Power connector
MANAGEMENT  - WOL by PME, WOR by PME, Chasis Intrusion, Wake on Wireless,
                PXE.
SOFTWARE    - Support CD includes Drivers
                             "    ASUS PC Probe II
                             "    ASUS Update
                             "    ASUS AI Booster
                             "    NVIDIA MediaShield RAID
                             "    Anti-virus (OEM version)
PCB SIZE    - ATX form factor, 12" x 9.6"
usa.asus.com
