MODEL- P6801D-WU          VENDOR- VISIONEER

FEATURES- Patriot 680 GSA/TAA-compliant Departmental Duplex Scanner

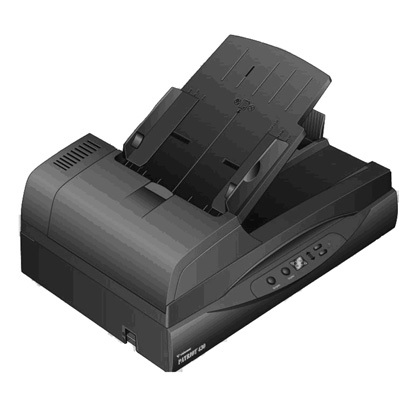

       The Visioneer Patriot 680 is a duplex flatbed scanner that was
        designed specifically for departmental use and can be programmed to
        automatically scan up to 99 different destinations and be
        customized for each person or workflow in the department. The
        Visioneer Patriot 680 also has an 8.5" x 14.5" flatbed that can
        accommodate documents up to legal size and scans up to 80 images
        per minute (ipm) for double-sided documents.
       The GSA compliant Patriot 680 color duplex departmental flatbed
        scanner uses a 100-page capacity ADF to scan documents at 40 ppm
        and 80 ipm through hi-speed USB 2.0.
       The pre-set Visioneer One Touch feature can be configured to scan to
        99 destinations eliminating multiples steps to scan-to-email, to-
        print or searchable PDF. Software bundle includes Kofax VRS, and
        ScanSoft OmniPage. The use of departmental scanners for regulatory
        compliance is sharply on the rise from Sarbanes-Oxley to the
        Patriot Act to SEC 17(a). The Patriot 680 easily converts scanned
        documents into text-searchable PDF files at the press of a single
        button.
   Includes Scanner, Software and drivers, manual.

  -- SPECIFICATIONs -------------------------------------
INTERFACE/BUS- USB 2.0/1.1 port
SCAN METHOD  - 100 page (16 lb. paper) Automatic Document Feeder (ADF)
RESOLUTION   - 600 x 1200 dpi optical resolution
SCAN SPEED   - 40 ppm and 80 ipm in duplex mode
BIT DEPTH    - 48-bit color (internal)
CONTROLS     - 99 OneTouch destinations
SOFTWARE     - Includes ScanSoft OmniPage
                   "    Kofax VRS (see note)
                   "    Pixel Translation QuickScan
                   "    TWAIN Driver
                   "    WIA Driver (XP Certified)
                   "    Certified ISIS Driver (see note)
               Note: Free to registered users upon request when available.
REQUIREMENTS - Windows XP (Srvc Pk 1 & 2)/2000 (Srvc Pk 4)
               Pentium equivalent or higher processor
               512MB RAM (1GB RAM recommended)
               200MB available HD space
               CD-ROM drive
               USB port
POWER SOURCE - Power supply (included)
DIMENSIONS   - 20.81" x 14.25" x 9.25"           WT.- 24.75 lbs.
www.visioneer.com
