MODEL- W0105RU            VENDOR- THERMALTAKE

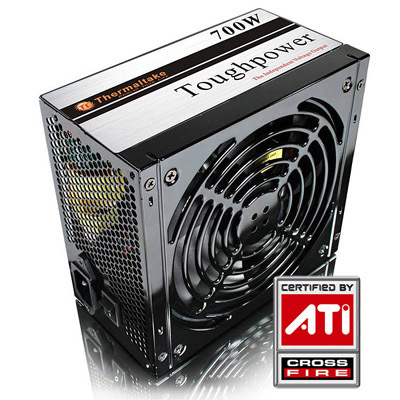

FEATURES- ToughPower 700W Power Supply
       Complies with ATX 12V 2.2 & EPS 12V version
       SLI, Cross-fire and Dual Core CPU ready
       Next generation four +12V rails(12V1, 12V2, 12V3, 12V4) supports
        high-end graphics card and PC system (combined loading of 56A).
* Independent Voltage Circuit: offers unflappable current delivery under
  heavy load and makes voltage output more stable.
* Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%).
* Extremely good voltage regulation (+/-3%): provides steady voltage for
  system.
* Industrial grade components (capacitor, transformer, etc).
* High reliability: MTBF >120,000 hours.
* Mirror effect housing and reliable 14cm ball-bearing fan.
* Protections: Over Current, Over Voltage, and Short-Circuit protection.

  -- SPECIFICATIONs ----------------------------------
CONNECTORS   - (1) 24-pin Main PCI-Express x1 connector
               (1)  4-pin +12V Power Connector
               (2)  4-pin Floppy Drive Connectors
               (2)  6-pin PCI-Express connectors
               (1)  8-pin +12V Power Connector
               (7)  4-pin Peripheral Power Connectors
               (6)  5-pin S-ATA connectors
MAX. POWER   - 700 watts
INPUT        - Voltage     : 100 VAC - 240 VAC
               Freq. Range : 47 - 63 Hz
               Current     : 115VAC/10A max
                             230VAC/5A max
               Hold-up Time: 16ms
               Efficiency  : up to 85%
SWITCHES     - ATX Logic on/off additional power rocker switch
PFC          - Active Power Factor Correction
COOLING      - (1) 14 cm Fan  Speed   : 1900 RPM (+/-10%)
                              Size    : 140 x 140 x 25 mm
                              Air Flow: 82 CFM
                              Temp. Auto Control
NOISE        - 16dB at 1300 RPM
APPROVALS    - CE, CB, TUV, FCC, UL, CUL, and BSMI certified
DIMENSIONS   - 16cm W x 8.5cm H x 15cm L        WT.- 2.4 kg
www.thermaltake.com
