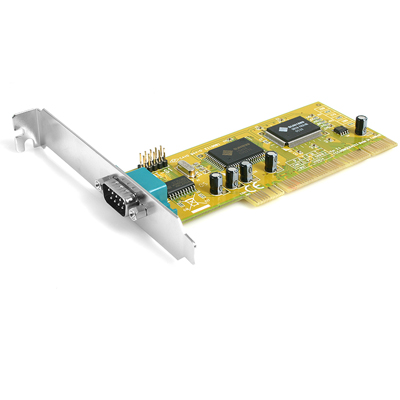

Product Description:
Features:
- Legacy port remap function allows you to re-assign I/O addresses
and IRQ's for your legacy devices.
- Microsoft WHQL certified drivers
- 128K transmit/receive FIFO buffer helps improve overall system
performance
- Dual voltage card supports both 64-bit(3.3V) and 32-bit(5V) PCI
- High speed serial data transfers up to 920Kbps (depending on
Operating System)
- IRQ sharing eliminates IRQ conflicts
Technical
Specifications:
| Warranty |
Lifetime warranty |
|
| Supported
Operating Systems for Remap Function |
Microsoft
DOS and Win9x/ME/NT 4.0 |
| Bus
Type |
PCI
5v or 3.3v, 64 or 32 bit |
| Connector
Types |
1 -
DB9 Male |
| Product
Length |
4.72
in [120 mm] |
| Operating
Temperature |
0-57 |
| Storage
Temperature |
20-85 |
| Shipping
(Package) Weight |
0.35
lb [0.16 kg] |
| Product
Weight |
1.48
oz [42 g] |
| Microsoft
WHQL Certified |
Yes |
| Product
Width |
2.05
in [5.2 cm] |
| Data
Transfer Rate (max) |
920
Kbits |
| OS
Compatibility |
Windows
95 / 98SE / NT / ME / 2000 / XP / 2003 / Linux / Dos |
| Legacy
Port Remap Addressing |
3F8,
3E8, 2F8, 2E8 |
|
|
