| Compatible CPUs |
| |
Socket |
CPU |
Silent Mode
(1,350~1,800rpm) |
Low-noise Mode
(1,800~2,600rpm) |
| AMD |
AM2 |
Sempron |
Supports all speeds |
Supports all speeds |
| Athlon 64 |
| Athlon 64 X2 |
| Athlon 64 FX-62 |
| 754 |
Sempron |
Supports all speeds |
Supports all speeds |
|
Manufacturers Part Number
|

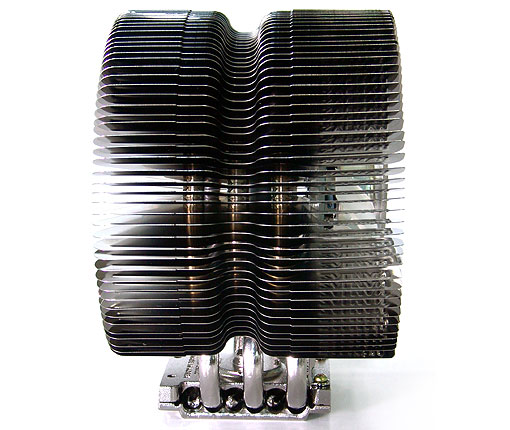

| CNPS9500 AM2 |
| Features |
- Compatible with AMD Opteron, Athlon 64 X2 Dual-Core, Athlon
64 FX, Athlon 64, and Sempron for Socket AM2/754/939/940
- Pure copper heatsink with component layout optimized for
maximum cooling efficiency.
- Innovative, patented, and curved heatpipe design for a heat
transfer capacity of up to six heatpipes with the use of just three.
- Ultra slim fins (0.2mm) for minimized weight and reduced
airflow resistance.
- Adjustable fan speed controller (FAN MATE 2) included.
|
| Box Contents |
- CNPS9500 AM2
- Thermal Grease
- FAN MATE 2 (Fan Speed Controller)
- Cable for FAN MATE2
- Double-sided Tape(to attach FAN MATE2)
- One(1) Clip
- One(1) Lever
- User’s Manual
|
| System Requirements: |
Cases equipped with an Air Guide
must have their Air Guide Ducts removed before installation. Install
only on systems meeting the following conditions :
- There must be no interfering components (e.g. PSU, VGA
card) within 56mm distance from the center of the CPU.
- There must be no interfering components (e.g. ODD) within
45mm distance from the center of the CPU.
- Case chassis cover must be distanced at least 135mm away
from the motherboard.
|
| Specifications |
Heatsink
| Dimensions |
85(L) X 112(W) X 125(H)mm |
| Weight |
530g |
| Material |
Pure Copper |
| Dissipation Area |
3,698cm2 |
| Thermal Resistance |
Silent Mode |
0.16 °C/W |
Low-noise Mode |
0.12 °C/W |
Fan
| Bearing Type |
2-Ball Bearing |
| Speed |
Silent Mode |
1,350rpm± 10 % |
Low-noise Mode |
2,600rpmM ± 10 % |
| Noise Level |
Silent
Mode |
18.0dB
± 10% |
Low-noise
Mode |
27.5dB
± 10% |
|
FAN Speed Controller (FAN
MATE 2)
| Dimensions |
70(L) x 26(W) x 26(H)mm |
| Weight |
20g |
| Output Voltage |
5V ~ 11V ± 2% |
| Allowable Power |
6W or lower |
| Connector |
0.12 °C/W |
|
|
