MODEL- 100-505151         VENDOR- A T I

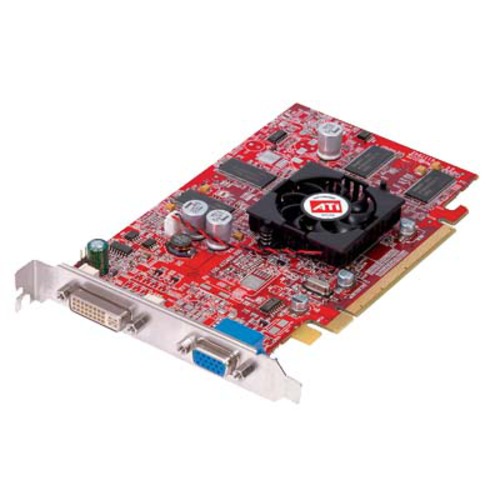

FEATURES- FireGL V3100 (Visualization Series)- Retail Package
       The FireGL Visualization series of workstation graphics accelerators
        is designed specifically for the new, high-bandwidth PCI Express
        bus, and is architected to deliver unprecedented speed and image
        quality for real-time visualization. True cinematic quality
        rendering of complex geometry is now available for compelling
        animation, visual effects, mechanical design and leading-edge
        business communication.
* Two Way Acceleration With ATI's Single-Chip PCI Express Solution
   The bridgeless, single-chip design of the FireGL native PCI Express
   graphics processor fully engages all of the benefits of this
   interconnect standard in the safest, most cost effective, and most
   reliable transition from AGP. Unlike other  bridged  PCI Express
   implementations, ATI's FireGL PCI Express products deliver full
   bandwidth in both upstream and downstream directions, doubling the
   capabilities of previous products.
* Compatibility And Stability
   ATI's FireGL cards -- whether PCI Express x16 lane or AGP 8X -- are
   designed to accelerate 3D workstation applications based on OpenGL and
   Microsoft DirectX 9.0. With full certification on the leading computer
   aided design (CAD), architecture/engineering/ construction (AEC) and
   digital content creation (DCC) applications, FireGL is the high
   performance choice for graphics professionals working in Windows or
   Linux based systems.
* Hardware acceleration of the following:
   - Anti-aliased points and lines or full scene anti-aliasing (2X, 4X, 6X)
   - 3D lines and triangles
   - Stipple points
   - Two-sided lighting
   - Up to 8 light sources
   - Directional and local lighting
   - OpenGL overlay planes
   - Occlusion culling
   - 6 user defined clip planes
   - OpenGL polymode functions
   - 32-bit (24+8-bit stencil) Z Buffer
   - Fast Z and color clears
   - Full DX9 vertex shader support with up to 6 vertex units
* Smartshader Technology
   - Programmable pixel and vertex shaders
   - Pixel shaders up to 160 instructions with 32-bit floating point
     precision for each RGBA component.
   - Multiple render target support
   - Shadow volume rendering acceleration
   - High precision 10-bit per channel frame buffer support
* Hyper Z
   - 3-level Hierarchical Z-Buffer with early Z test
   - Lossless Z-Buffer compression (up to 24:1)
   - Fast Z-Buffer Clear
* Smoothvision Technology
   - 2X/4X/6X anti-aliasing modes
   - High performance adaptive algorithm with programmable sample patterns
   - 2X/4X/8X/16X anisotropic filtering modes
   - Adaptive algorithm with bi-linear (performance) and tri-linear
     (quality) options.

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- PCI Express x16
MEMORY       - 128 MB, 128-bit
               6.4 GB/sec. Memory Bandwidth
CHIPSET      - Powered by ATIs scalable FireGL workstation Visual
                 Processing Units (VPU).
               200 million Vertices/second
               1.6G Pixel/second
               Up to 256-bit high bandwidth memory architecture
               Up to 2 parallel geometry engines
               Up to 4 parallel pixel pipelines
               128-bit full floating point precision
               32-bits per RGBA component displays beyond 16.7M colors
CONNECTORs   - (1) 24-pin DVI-I port
               (1) 15-pin VGA port
DISPLAY SUPPORT-
               Maximum resolution of 2048x1536 per display (dual mode).
               Independent resolution and refresh rate selection for any
                 two connected displays.
               Dual integrated 10-bit per channel 400 MHz DACs
               Integrated 165 MHz TMDS transmitter (DVI & HDCP compliant)
APIs & OPERATING SYSTEM SUPPORT-
               OpenGL 1.5 + extensions
               OpenGL Shading Language
               Microsoft DirectX 9.0
               DX9 HLSL
               Windows XP/Windows XP64/Windows 2000
               Linux 32/Linux 64
REQUIREMENTS - Intel Pentium 4/Xeon, AMD Athlon/Opteron or compatible CPU
               PCI Express bus
               128MB of system memory (256MB or more recommended)
               Installation software requires CD-ROM drive
                300 watt or greater power supply (recommended)
