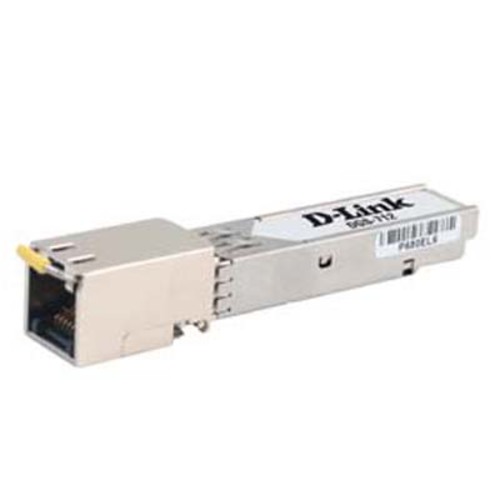

MODEL- DGS-712            VENDOR- D-LINK

FEATURES- 10/100/1000BaseT Copper SFP Transceiver
       D-Links DGS-712 1000BASE-T Copper Small Form Pluggable (SFP)
        transceiver is based on the SFP Multi Source Agreement. It is
        compatible with the Gigabit Ethernet and 1000BASE-T standards as
        specified in IEEE 802.3z and 802.3ab. The DGS-712 plugs into any
        standard SFP interface allowing for 1000Base-T Gigabit transmission
        over standard Category 5 twisted pair copper.
* Convert an SFP Fiber Interface into a 1000Base-T Copper Uplink
* Hot Pluggable
* Compatible with All Standard 1000Base-T Twisted Pair Copper Cabling
* Up to 1.25Gbps Bi-directional Data when Combined with an Additional
  DGS-712.

  -- SPECIFICATIONs ------------------------------------
STANDARD     - IEEE 802.3ab 1000BASE-T Gigabit Ethernet
CONNECTOR    - 10BaseT/100BaseTX/1000BaseT port
AUTO MDI/MDIX- Automatic crossover detection enabled
               External crossover cable not required
DATA RATE    - 1,000 Mbps (IEEE 802.3 compatible)
               10/100/1000 BaseT operation requires the host system to have
                 an SGMII interface with no clocks. With a SERDES
                 interface, this transceiver will operate at 1000BaseT
                 only.
CABLE TYPE   - Cat. 5 twisted-pair cable
CABLE LENGTH - Up to 100 meters max.
POWER SOURCE - Input Voltage : 3.1V (minimum), 3.3V (typical), 3.5V (max.
                               Referenced to GND
               Supply Current: 350mA (typical), 400mA (maximum)
                               1.3W max power over full range of voltage
                                 and temperature.
               Surge Current : 30mA
                               Hot plug above steady state current
