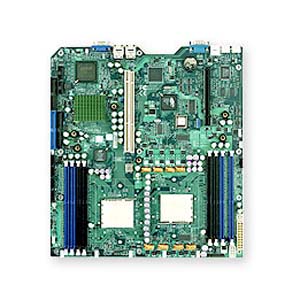

MODEL- H8DAR-T            VENDOR- SUPER MICRO

FEATURES- Dual AMD Opteron Motherboard (Dual Core Ready)
       Extended ATX, Dual AMD Opteron Support (Dual Core Ready), supports
        up to 16GB DDR.
       Includes Motherboard, User manual, ATX floppy cable, ATA 100/133 IDE
        LP cable, Driver disk, and (4) Retention brackets.

  -- SPECIFICATIONs -----------------------------------
PROCESSOR  - Dual 940-pin ZIF Sockets
             Supports up to two Dual-Core AMD Opteron 200 Series
               processor(s).
             VRM x3
BIOS       - 4Mb Flash EEPROM with AMI BIOS
             Plug and Play (PnP)
             SMBIOS 2.3
             DMI 2.3
             ACPI 1.0
             Fan Speed Control
CHIPSET    - AMD 8132 HyperTransport PCI-X Tunnel
             AMD 8111 HyperTransport I/O Hub
MEMORY     - Eight 184-pin DIMM sockets support up to 16 GB DDR 400MHz
               memory or up to 16 GB DDR 333MHz or up to 32 GB DDR 266MHz.
             Single or Dual (recommended) channel memory support.
             For Single CPU memory must be populated in CPU1 DIMMs only.
               For Dual CPUs it is recommended that memory be populated
               equally in adjacent memory banks.
             Accepts DDR 400/333/266MHz buffered (registered) ECC SDRAM
               72-bit, 184-pin gold-plated DIMMs.
             Accepts 256, 512 MB, 1 GB, 2 GB; 2.5V only.
             Error Detection corrects single-bit errors, Detects double-bit
               errors (using ECC memory)
EXPANSION  - (2) 64-bit 133/100MHz PCI-X (3.3V) slots
             (1) IPMI 2.0 expansion slot
PCI IDE    - Dual ATA 133/100 EIDE channels support up to four UDMA IDE
               devices.
SERIAL ATA - Integrated Adaptec AIC-8130: (Marvell 88SX6041) 4-port
               Hercules-2, rev B2, SATA Controller supports 4-Port SATA
               connectors; Host RAID 0, 1, JBOD.
             Support for Zero-Channel RAID with Supermicro All-In-One-ZCR
               Card: AOC-LPZCR1 or AOC-LPZCR2 (Card not included).
AUDIO      - None
VIDEO      - Integrated ATI Rage XL 8MB PCI Graphics Controller
ETHERNET   - Integrated Broadcom 5704 Dual Port Gigabit Ethernet Controller
               supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output.
SCSI       - None
I/O PORTS  - (1) Floppy port (1.44 MB, 2.88 MB, 3-mode support)
             (2) RJ-45 LAN ports
             (5) Up to 5 USB Ports 1.1 Compliant
             (2) PS/2 ports (for keyboard and mouse)
             (2) Serial ports (Fast UART 16550)
MANAGEMENT - Includes Super Doctor III and Watch Dog software.
             Power Configurations:
                          ACPI/API Power Management
                          Wake-On-LAN (WOL) header
                          Power-on mode control for AC power loss recovery
                          Internal/External modem remote ring-on
PC HEALTH  - CPU        : Monitors CPU Core Voltages, +3.3V, +5V, +/-12V &
                            battery voltage.
                          Up to 5 fan status
                          Supports System Management Utility
             FAN        : Total up to 5-fan status
                          3-pin fan speed control
             Temperature: Monitoring for CPU and chassis environment
             Indicators : Overheat LED
             Misc.      : Chassis intrusion detection
CHASSIS    - Optimized for use with SC813T+-500
             To ensure system stability, a 500W (minimum) ATX power supply
               [4-pin (+12V), 8-pin (+12V) and 20-pin are required].
FORM FACTOR- Extended ATX 12" x 13.05"
