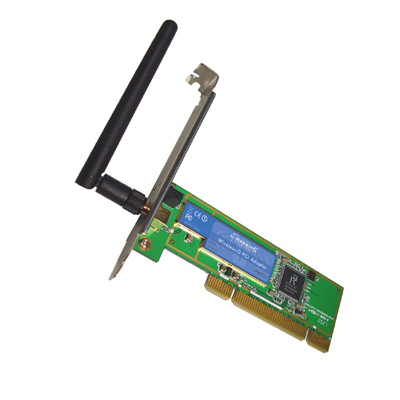

MODEL- HWPG1              VENDOR- HAWKING TECHNOLOGIES

FEATURES- Wireless 802.11g PCI Card
       Go Wireless! Instantly Add Wireless Networking to your Desktop!
       Fast and Easy way to upgrade your wired destop PC into a wireless PC
        - Freedom to rearrange your PC anywhere without running messy
        ethernet cables around your house or work space. With data transfer
        speeds of up to 54Mbps, the HWPG1 Wireless-G PCI Card allows
        seamless connectivity to any wireless 802.11b or 802.11g networks.
       The HWPG1 also supports Turbo Mode to enhance the data tranfer speed
        with a specific network. While speeds and flexibility are
        important, security is also a major concern for many wireless
        users. The HWPG1 is engineered with high level of security
        encryptions to protect your personal data from outside intruders.
        It comes with 64/128-bits WEP, WPA, and WPA2. The automatic
        fallback function also increases data security.  Installation is
        quick and easy - insert the CD driver and follow the setup up
        wizard. Within minutes, your computer is up and ready to connect
        via wireless connection.
       For extended wireless range, the HWPG1 is compatible with the Hi-
        Gain Range extending antennas and can easily be upgraded.
    Includes Wireless-G PCI Network Card, CD (Driver/Utility/User's
      Manual), Dipole Antenna, Quick Installation Guide.
* Works with both IEEE 802.11b and IEEE 802.11g products
* High-speed tranfer data rate - up to 54Mbps
* Supports Turbo Mode to enhance the data transfer speed within the
  specific wireless network.
* Supports WMM function to meet the multi-media data bandwidth
  requirement.
* High-level security encryption: 64/128-bits WEP, WPA (TKIP with IEEE
  802.1x), WPA (AES with IEEE 802.1x).
* Automatic fallback increases data security and reliability.
* Greater flexibility to locate or move networked PCs.
* Easy to install and user friendly.
* Supports Win98SE/ME/2000/XP Operating Systems
* Working range up to 800 ft. in an open environment. Upgradeable with
  Hawking's Hi-Gain 24 Series Range Extending Wireless Antenna

  -- SPECIFICATIONs ------------------------------------
INTERFACE/BUS- 32-bit PCI 2.2 slot
STANDARDS    - IEEE 802.11b WLAN Standard
               IEEE 802.11g WLAN Standard
SPEED        - 54/48/36/24/12/11/9/6/5.5/2/1 Mbps Auto Fall Back
FREQUENCY    - 2.412Ghz ~ 2.462GHz
SECURITY     - 64/128-bit WEP Data Encryption
               WPA (TKIP with IEEE 802.11x)
               WPA2 (AES with IEEE 802.1x)
MODULATION   - OFDM with BPSK, QPSK, 16QAM, 64QAM (11g)
               BPSK, QPSK, CCK (11b)
ANTENNA      - 2dBi Removable Dipole Antenna (RP-SMA)
INDICATORs   - LEDs for Tx/Rx, Link
TRANSMIT POWER-
               16dBm ~ 18dBm
RECEIVE SENSITIVITY-
               54Mbps OFDM, 10% PER, -70dBm
               11Mbps CCK, 8% PER, -86dBm
               11Mbps BPSK, 8% PER, -92dBm
O/S SUPPORT  - Microsoft Windows 98SE, 2000, ME, XP
REQUIREMENTS - Pentium Compatible CPU or Higher Processor
               Windows 98SE, ME, 2000, XP
               One Available PCI slot in your desktop computer
               Wireless 802.11b or 802.11g Network
APPROVALS    - FCC part 15 Class B, CE Mark
POWER SOURCE - Operating Voltage: 3.3V
               TX: 460mA (Max), RX: 310mA (Max)
DIMENSIONS   - 130mm W x 19mm H x 121mm D
