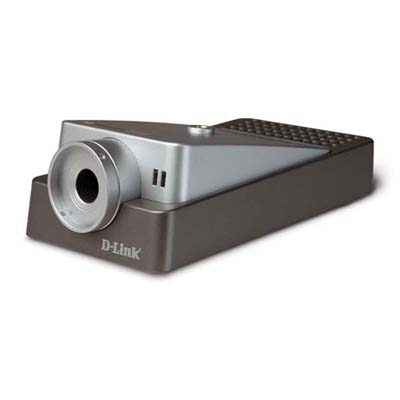

MODEL- DCS-1110           VENDOR- D-LINK

FEATURES- SecuriCAM 10/100 Fast Ethernet PoE Internet Camera
       Remote Audio & Video surveillance for Home/Office.
       With support for 802.3af Power over Ethernet (PoE) and a slim-line
        housing, the DCS-1110 is D-Link's most versatile camera yet. PoE
        support, when used with a compatible PoE power injector or PoE
        switch, eliminates the need for mounting the camera near a power
        supply. With 0.5 Lux light sensitivity, this camera is capable of
        capturing video in rooms with minimal lighting, making it ideal for
        use at night. When enclosed in an optional outdoor housing, the
        DCS-1110 makes an excellent home security camera.
       You can access and control your camera using Internet Explorer. As
        you watch and listen remotely to video and sound obtained by the
        DCS-1110, you can record directly from the web browser to a local
        hard drive, making it ideal for capturing any moment no matter
        where you are. By signing up with one of the many free Dynamic DNS
        services available on the web, you can assign an easy-to-remember
        web address to the camera. Remotely access your camera without
        having to remember the IP address, even if your Internet Service
        Provider changes it.
       IP View SE software is included to enhance the monitoring and
        management of the DCS-1110. Manage and monitor up to four
        compatible cameras simultaneously with this program. You can also
        use IP View SE to archive video straight to the hard drive,
        playback video, set up motion detection to trigger video/audio
        recording and send e-mail alerts. The DCS-1110 is configurable to
        record to a network-attached storage (NAS) device, eliminating the
        need to set up a dedicated computer for storing recorded video.
       This camera also works great with D-Link's MediaLounge family of
        home entertainment products. After setting up the DCS-1110 to
        record to your PC's hard drive or a network-attached storage
        device, captured video can be played back using any of the
        MediaLounge Wireless Media Players. You can even configure your
        MediaLounge Wireless Media Player to connect to the DCS-1110 and
        play real-time video feed on your TV screen!
       The DCS-1110, featuring PoE support and bundled with IP View SE, is
        a cost-effective and versatile security solution for your home or
        business.
    Includes 10/100 Fast Ethernet PoE Internet Camera, CAT5 Ethernet Cable,
       Power Adapter, Mounting Kit, CD-ROM (with Software, Product
       Documentation, Special Offers, Quick Installation Guide).
* Monitor Your Home or Office over Internet from Your Web Browser
* PoE Support Gives You More Flexibility for Camera Installation
* Starts Recording and Sends E-mail Alerts Upon Motion Detection

  -- SPECIFICATIONs ----------------------------------
CAMERA       - 1/4" CMOS sensor
               0.5 Lux @ F1.4
               AGC/AWB
               Electronic shutter: 1/60 to 1/15,000 sec.
CONNECTORs   - (1) 10BaseT/100BaseTX/RJ45 port
                    Auto-negotiation
                    Auto MDI/MDI-X
                    802.3af Power over Ethernet
INDICATORs   - LEDs for Power, Link
RESOLUTION   - Up to 30fps at 160x120
               Up to 30fps at 320x240
               Up to 30fps at 640x480
AUDIO/VIDEO ALGORITHM-
               Supports MPEG-4 Simple Profile, Audio ADPCM
REMOTE MANAGEMENT-
               Configuration Accessible via Web Browser
               Record to a Local Hard Drive via a Web Browser
PROTOCOL     - TCP/IP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, DDNS, PoE Support
SECURITY     - Administrator and user group protected
               Password Authentication.
IP VIEW SE MANAGEMENT SOFTWARE-
               Remotely Manage and Control up to 4 DCS-1110 Internet
                 Cameras.
               View Up to 4 Cameras on One Screen
               Supports all Management Functions Provided in Web Interface
               Record Video to Hard Drive or NAS in AVI Format
               Scheduled, Motion Triggered, or Manual Recording Options
VIEWING SYSTEM PROTOCOL REQUIREMENT-
               ActiveX
REQUIREMENTS - Wired (10/100 Fast Ethernet) Network
               PC with: 1.3 GHz Processor
                        128MB Memory
                        Windows XP SP2 or Windows 2000 SP4
                        Internet Explorer v6
               Multiple Camera Operation Requires PC with:
                        2.4 GHz Processor
                        512MB RAM
                        32MB Video Card
                        Windows XP SP2 or Windows 2000 SP4
                        Internet Explorer v6
POWER SOURCE - Power over Ethernet (PoE)
               External Power Supply: 5V DC 2.5A; Power Consumption 8.5W
DIMENSIONS   - 2.99"w x 1.77"h x 5.46"d        WT.- 0.73 lbs.
    www.dlink.com
