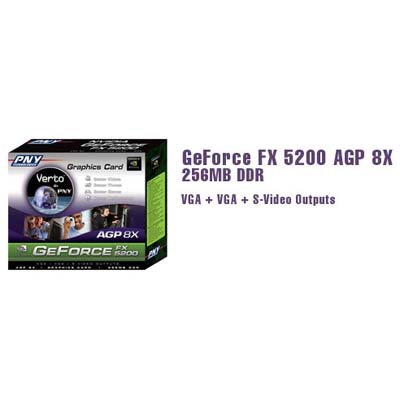

MODEL- VCGFX522APB        VENDOR- PNY TECHNOLOGIES

FEATURES- GeForce FX 5200 256MB AGP 8x
       The GeForce FX 5200 GPUs delivers the best-in class performance and
        features at an incredible price. Users, who hunger for eye-candy
        animation without breaking the bank, will experience cinematic-
        quality effects and studio-quality color from the GeForce FX 5200.
    Includes GeForce FX 5200 graphics card, Installation Guide, S-Video
      cable, and CD with drivers and software.
* High-Performance, High Precision 3D Rendering Engine
   - 4 pixels per clock rendering engine
   - 128-bit, studio quality floating point precision through the entire
     graphics pipeline.
   - Support for 128-bit floating point, 64-bit floating point and 32-bit
     integer rendering modes.
   - Up to 16 textures per pass
   - Support for sRGB texture format for gamma textures
   - DirectX and S3TC texture compression
* High-Performance 2D Rendering Engine
   - Optimized for 32, 24, 16, 15, and 8-bpp modes
   - True-color 64x64 hardware cursor with alpha
   - Multibuffering (double, triple, quad) for smooth animation and video
     playback.
* Advanced Display Pipeline with full nView Capabilities
   - Dual 350MHz RAMDACs for display resolutions up to 2048x1536 @ 85Hz
   - Integrated TV encoder supporting resolutions up to 1024x768
   - Video Mixing Renderer (VMR) supports multiple video windows with full
     quality and features in each window.
* NVIDIA CineFX engine
   Delivers film-quality effects and studio-quality color for every
   application.
* 128-bit Studio-Precision Color
   The industries best image quality for the most demanding applications.
* Architectured for Cg
   Ensures that the newest, cutting edge special effects in applications
   will run flawlessly.
* Digital Vibrance Control 3.0
   Allows the user to adjust color controls digitally to compensate for the
   lighting conditions of their workspace, in order to achieve accurate,
   bright colors in all conditions.
* Integrated TV encoder
   Provides TV-out functionality up to 1024x768 resolutions.
* AGP 8X
   Provides double the bandwidth of AGP 4X allowing for uninterrupted data
   flow resulting in smoother video streaming and seamless gameplay.
* Microsoft DirectX 9.0 Optimizations and Support
   Ensures the best performance and application compatibility for all
   DirectX 9 applications.
* Open GL 1.5 Optimizations and Support
   Ensures the best application compatibility performance for all OpenGL
  applications.

  -- SPECIFICATIONs ------------------------------------
INTERFACE/BUS- 32-bit AGP 8x
MEMORY       - 256MB 128-bit DDR Memory
                 (400 MHz Memory Data Rate)
               6.4GB per second memory bandwidth
CHIPSET      - 256-bit nVIDIA GeForce FX 5200 (250MHz core clock)
               1.0 billion texels per second fill rate
               63.0 million vertices per second setup
               4 pixels per clock (peak)
               16 textures per pixel (max in a single rendering pass)
RAMDAC       - Integrated Dual 350MHz
CONNECTORs   - (1) VGA DB-15 analog connector (VESA DDC2B+ DPMS)
               (1) S-Video TV-Out Port
RESOLUTION   - Max display resolution 2048 x 1536 x 32 bpp at 85Hz
               Flat Panel display support with resolutions up to 1600 x
                 1200 (Requires flat panel display with VGA input).
REQUIREMENTS - Intel Pentium III, AMD Duron or Athlon class processor or
                 higher.
               128MB system RAM
               A 250W system power supply
               A motherboard with an AGP 2.0 slot
               50MB of available hard disk space
               CD-ROM or DVD-ROM drive
               Windows 98 or higher, ME, 2000, XP, or Windows NT 4.0
                 (Service Pack 5 or 6).
               VGA compatible monitor
 www.pny.com
