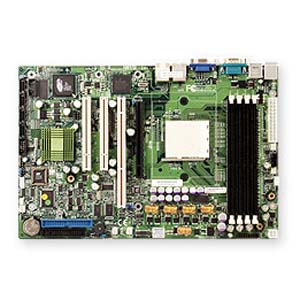

MODEL- H8SSL-i            VENDOR- SUPER MICRO

FEATURES- ServerWorks Chipset Motherboard- Retail
       ATX, Single AMD Opteron Support (Dual Core Ready), supports up to
        4GB DDR.
       Best Single Opteron CPU Solution
       Most Cost Effective Dual Core Workstation
       High-End A+ ServerBoard
    Includes Motherboard, User manual, ATX floppy cable, ATA 100/133 IDE LP
      cable, Driver disk, (2) Retention brackets.

  -- SPECIFICATIONs -----------------------------------
PROCESSOR  - Single 939-pin ZIF Sockets
             Supports one Dual-Core AMD Opteron 100 Series processor
             1MB Cache
             4 phase VRM
BIOS       - 4Mb Flash EEPROM with AMI BIOS, SST-49LF004B BIOS Chip
             Plug and Play (PnP)
             ACPI 1.0
             PCI 2.2
             DMI 2.3
             BIOS Rescue Hot Keys
             SMBIOS 2.3
             USB Legacy support
             Hardware BIOS Virus Protection
             RTC (Real Time Clock) Wakeup
CHIPSET    - HyperTransport Link
             ServerWorks HT1000 I/O Hub
MEMORY     - Four 184-pin DIMM sockets supports up to 4 GB DDR 400/333 MHz
               memory or Single or Dual (recommended) channel memory.
             Accepts DDR 400/333MHz buffered ECC/non-ECC SDRAM 72-bit,
               184-pin gold-plated DIMMs.
             Accepts 256, 512 MB, 1 GB; 2.5V only.
             Error Detection corrects single-bit errors, Detects double-bit
               errors (using ECC memory)
EXPANSION  - (1) 64-bit PCI-X 133MHz (3.3V) slot
             (2) 32-bit PCI 33MHz slots
PCI IDE    - Single ATA 100 EIDE channel supports up to two UDMA IDE
               devices.
             Supports UDMA Mode 5, PIO Mode 4, and ATA/100.
SERIAL ATA - Integrated ServerWorks HT1000 controller supports up to 4
               ports via four Serial ATA Connectors.
AUDIO      - None
VIDEO      - Integrated ATI Rage XL 8MB
ETHERNET   - Integrated Broadcom BCM5704C Dual Gigabit Ethernet Controller
               supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output.
I/O PORTS  - (1) Floppy port (1.44 MB, 2.88 MB, 3-mode support)
             (2) RJ-45 LAN ports
             (6) Up to 6 USB 2.0 ports (2 rear ports, 2 internal header)
             (1) 15-pin VGA port
             (2) PS/2 ports (for keyboard and mouse)
             (2) Serial ports (Fast UART 16550)
             (1) Serial Header for additional port
MANAGEMENT - Includes Super Doctor III & Watch Dog/NMI software.
             Power configurations:
                          ACPI/API Power Management
                          Wake-On-Ring (WOR) header
                          Wake-On-LAN (WOL) header
                          Main Switch Override Mechanism
                          Keyboard Wakeup from Soft-Off
                          CPU Fan auto-off in sleep mode
                          Power-on mode control for AC power loss recovery
                          Internal/External modem remote ring-on
PC HEALTH  - CPU        : Monitors CPU Core Voltages, +5V, +/-12V, 2.5V
                            Standby, 5V Standby, VBAT.
                          Monitor for HyperTransport voltage 1.2V, DDR
                            termination 1.25V.
                          CPU 4-phase Switching Voltage Regulator
                          Supports System Management Utility
             FAN        : Total up to nine 3-pin fan headers
                          5 Fan Status Tachometer monitoring
                          Status Monitor for Speed Control
             Temperature: Monitoring for CPU and chassis environment
                          CPU Thermal Trip Support
                          I2C Temperature Sensing Logic
             Indicators : CPU/System Overheat LED
                          Suspend-State Indicator LED
             Misc.      : Chassis intrusion header
CHASSIS    - Optimized for use with SC512C-260 (requires air-shrould
                                                  CSE-PT0112)
                                    SC811T-300 (see note)
                                    SC811F-260 (see note) (OEM only)
                                      (NOTE: use air-shroud CSE-PT0113)
                                    SC823i-550LP
                                    SC823i-R500LP
                                    SC733T-450
             To ensure system stability, a 300W (minimum) ATX power supply.
               [4-pin (+12V) and 24-pin are required].
FORM FACTOR- ATX 12" x 8"
