MODEL- NBWL0500           VENDOR- APC-NETBOTZ

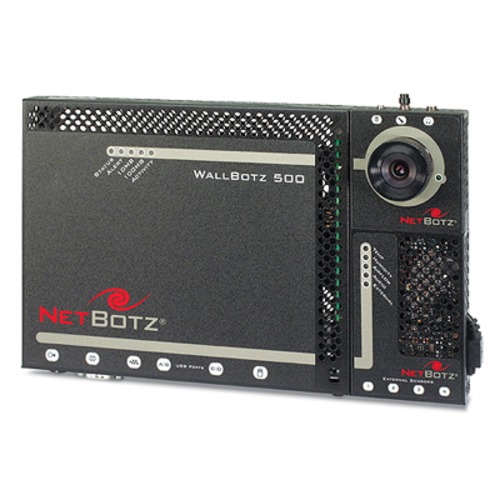

FEATURES- NetBotz 500 Base Station
       The NetBotz 500 is the next-generation NetBotz monitoring appliance.
        The NetBotz 500's pod-based architecture gives the user tremendous
        flexibility and expandability. Camera pods and sensor pods can be
        located as far as 340 feet (104 m) from the base station, allowing
        coverage of multiple rooms or cabinets. And, the base station
        itself can be wirelessly connected to an 802.11a/b/g wireless LAN.
        The Camera Pod 120 boasts a surveillance-class camera and audio
        recording, with multiple resolutions up to 1280x1024 and frame
        rates as high as 30 fps. A microphone is built into the camera pod
        for recording audio clips associated with the picture clips-if
        desired, an external microphone can be used for placement closer to
        the sound source. The NetBotz 500 comes with a 35 degrees Wide by
        28 degrees High C-mount lens with included CS adapter (field of
        view up to 64 degrees Wide x 53 degrees High, depending on imager
        mode and image resolution). Can be replaced by any standard CS- or
        C-mount lens. SSL encryption is standard on the NetBotz 500,
        providing secure transmission of alerts to prevent potential
        interception and misuse of camera and audio clips. Customizable
        thresholds and alert polices include specialized threshold types
        such as rate-of-change and above-value-too-long. Alerts can now
        include sound clips and graphs as well as pictures, and separate
        alert actions can be triggered at different alert severity levels.
* NetBotz 500 includes base station, plus Camera Pod 120 and Sensor Pod 120
  docked to base station.
* Expandable via additional Camera Pods and Sensor Pods connected to USB
  ports on base station (up to 4 total Camera Pods and 17 total Sensor
  Pods)
* Each Camera Pod 120 has:
  - high-performance color camera with resolutions up to 1280x1024 and
    frame rates up to 30 fps.
  - internal microphone to record audio clips for alerts - or plug in
    external microphone
  - jack for external speakers to play local pre-recorded audio alerts
    (e.g. "Alert - Temperature - Too High for Too Long")
  - door switch sensor
* Each Sensor Pod 120 has:
  - Integrated environment sensors for temperature, humidity, dew point,
    airflow, and audible sounds (e.g. alarms)
  - 4 external sensor ports to connect external analog and dry contact
    sensors.
* Add-on CCTV Adapter Pod 120 (not included) enables CCTV camera to be used
  with NetBotz 500. BNC, RCA, or S-Video input.
* IP-addressable, integrated web server
* Alerts via E-mail, SNMP, Text Messaging, FTP, HTTP and Web Services
* PC Card adapter slot for optional Wireless Ethernet (802.11a/b/g) or
  GSM/GPRS modem.
* Periodic data reports via E-mail, FTP, and HTTP
* Support for PPP over USB attached dial modem
* SSL encryption for live viewing and alert transmission
* Up to 24 hours onboard data retention for reviewing recent alert data,
  graphs, or pictures and audio clips (optional 60GB Extended Storage.
  System increases alert and sensor data storage to up to 6 months)
* Advanced View 2.x console software provides camera views, recent alert
  history and graphs, plus configuration functions.
* Customized alert actions can be configured based on alert type, severity,
  and time alert occurred. Alert profiles let you customize notification
  actions at multiple escalation levels.
* Import map/image into Advanced View for graphical image of deployment,
  including icons representing pods/sensors/appliances that turn color with
  sensor thresholds.
* Output Power Control with industry-leading intelligent power strip
  manufacturers, allowing NetBotz solution to provide power on/off for each
  port on a power strip and provide a hard shut down of individual ports.
