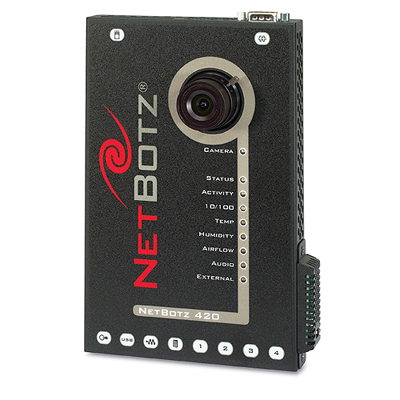

MODEL- NBWL0420           VENDOR- APC- NETBOTZ

FEATRUES- NetBotz 420 Wall Appliance
       The NetBotz 420 is a fully featured monitoring solution ideal for
        small to medium-sized spaces that require comprehensive monitoring
        capabilities with moderate expandability. This next-generation
        solution has a modular architecture that gives the user tremendous
        flexibility along with rich image graphics and integrated
        environmental monitoring. The appliance form factor is plug-n-play,
        and can be up and running within 30 minutes. The web interface
        provides immediate sensor readings, real-time camera images, and
        immediate configuration. The appliance can also be wirelessly
        connected to an 802.11b wireless LAN. SSL encryption is standard on
        the NetBotz 420, providing secure transmission of alerts to prevent
        potential interception and misuse of camera clips. Alerts can be
        sent via email, SNMP, or text messaging. Customizable thresholds
        and alert policies include specialized threshold types such as
        rate-of-change and above-value-too-long. Alerts can now include
        graphs as well as pictures, and separate alert actions can be
        triggered at different alert severity levels.
* NetBotz 420 is a fully enclosed appliance that includes an integrated
  camera and environmental sensors (temperature, humidity, dewpoint,
  airflow, and door)
* Expandable via 1.1 USB port; supports up to 1 additional Camera (or CCTV
  Adapter) Pod and up to 4 non-camera pods (Power Control, Sensor, or
  Output Relay Pods.
  - Camera pods and sensor pods can be located as far as 340 feet (104 m)
    from the base station, allowing coverage of multiple rooms or cabinets.
* The Camera provides:
  - High-performance color camera with resolutions up to 640 x 480 and
    frame rates up to 20 fps, with 24-bit color
* The integrated sensors provide:
  - Integrated environment sensors for temperature, humidity, dew point,
    and airflow.
  - Four external sensor ports to connect external analog and dry contact
    sensors.
* IP-addressable, integrated web server
* Alerts via E-mail, SNMP, Text Messaging, FTP, HTTP and Web Services
* Compact Flash Card slot supports 802.11b
* Support for PPP over USB attached dial modem
* 10/100 Mbps Ethernet interface
* SSL encryption for live viewing and alert transmission
* Up to 12 hours onboard data retention for reviewing recent alert data,
  graphs, and pictures.
* Advanced View 2.x console software provides camera views, recent alert
  history and graphs, plus configuration functions.
* Customized alert actions can be configured based on alert type, severity,
  and time alert occurred. Alert profiles let you customize notification
  actions at multiple escalation levels.
* Periodic data reports via E-mail, FTP, and HTTP
* Comes standard with Camera Motion Sensing software and Basic Device
  Crawlers.
* Wall and rack mount form factors are available
www.apc-netbotz.com
