MOXA

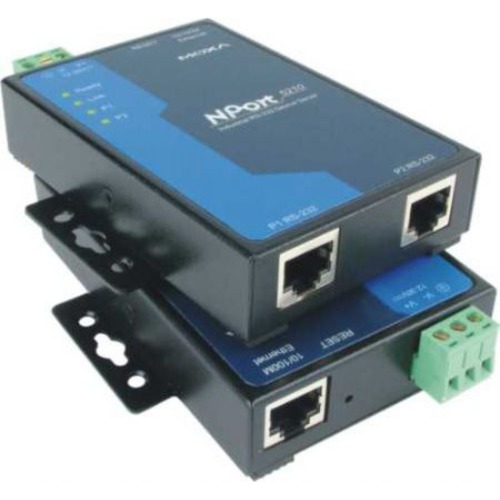

NPort5210-T Extended Operating Temperature (-40 to 75 degrees C) with 2 RS-232 PORTs UNIVERSAL SERIAL DEVICE SERVER 10/100 ETHERNET RJ45 8PIN 5YEAR MFG WARRANTY

903412_MOXA_NPort5210T.jpg-EXTENDED_TEMPERATURE_40_TO_WITH_2_RS_232_PORTS_UNIVERSAL_SERIAL_DEVICE_SERVER_10_100_ETHERNET_RJ45_8PIN_5YEAR_MFG_WARRANTY

Manufacturer	MOXA
Mfg. Part #	NPort 5210-T
ITEM#	397564
Unit Price	$314.15 (~CAD$313.50)
Availability	In Stock
Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume	Each	Landing Price/Each
1 ~ 2	$314.15 (~CAD$313.50)	$336.15 or less (~CAD$335.45)
3 ~ 7	$310.68 (~CAD$310.03)	$324.35 or less (~CAD$323.67)
8 ~ 14	$307.20 (~CAD$306.56)	$318.26 or less (~CAD$317.60)
15 ~ 19	$303.73 (~CAD$303.10)	$314.06 or less (~CAD$313.41)
20 ~	$300.25 (~CAD$299.62)	$310.38 or less (~CAD$309.73)

[Suggested Accessory Items]

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:
Moxa PD Frame

Introduction

NPort 5210

Connect Serial Devices to Ethernet

The NPort 5210 serial device server is designed to make your industrial serial devices Internet ready instantly. The compact size of the NPort 5210 device server makes it the ideal choice for connecting your RS-232 serial devices, such as PLCs, meters, and sensors, to an IP-based Ethernet LAN, making it possible for your software to access serial devices anywhere on a local LAN, or the Internet.

Standard TCP/IP Interface and Versatile Operation Modes

NPort 5210 serial device server provides TCP Server, TCP Client, and UDP operation modes, ensuring the compatibility of network software that uses a standard network API (Winsock, BSD Sockets).

Real COM/TTY Drivers for Existing Software

Thanks to NPort's Real COM/TTY drivers, software that works with COM/TTY ports can now work on a TCP/IP network in no time. This excellent feature preserves your software investment and lets you enjoy the benefits of networking your serial devices instantly.

Easy installation and configuration

NPort 5210 serial device server supports automatic IP configuration protocols (DHCP, BootP) and manual configuration through the Web Browser console. Both methods ensure quick and effective installation. And with NPort 5210's Windows Utility, your installation job becomes more pleasant than ever, since all system parameters can be stored and copied to many other device servers.

NPort 5210 Layout (device server on the right)

Typical Application

Control Remote Devices by TCP/IP or Traditional COM/TTY Port
By specifing the IP address and port number of NPort 5210, the serial device can be reached by network Sockets API from any host computer that supports TCP/IP. When the automation software is based on COM/TTY under Windows/Linux, Moxa's COM/TTY driver allows legacy software to work seamlessly over the Internet.

NPort 5210 Dimensions

8-pin RJ45 RS-232 Port Pin Assignments

Pin No.	RS-232 Signals
1	DSR (in)
2	RTS (out)
3	GND
4	TxD (out)
5	RxD (in)
6	DCD (in)
7	CTS (in)
8	DTR (out)

Features

Make your serial devices Internet ready
Versatile socket operation modes, including TCP Server, TCP Client, UDP
Easy-to-use Windows Utility for mass installation
Auto-detecting 10/100 Mbps Ethernet
Built-in 15 KV ESD protection for all serial signals
Supports SNMP MIB-II for network management

Specifications

LAN

Ethernet

10/100 Mbps, RJ45

Protection

Built-in 1.5 KV magnetic isolation

Serial Interface

Interface

RS-232

No. of Ports

Port Type

8-pin RJ45

Signals

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial line protection

15 KV ESD for all signals

Power Line Protection

4 KV Burst (EFT), EN61000-4-4
2 KV Surge (Power), EN61000-4-5

Advanced Built-in Features

Buzzer

Real-Time Clock

Watch Dog Timer

Serial Communication Parameters

Parity

None, Even, Odd, Space, Mark

Data bits

5, 6, 7, 8

Stop bit

1, 1.5, 2

Flow control

RTS/CTS, XON/XOFF , DTR/DSR

Transmission Speed

110 bps to 230.4 Kbps

Software Features

Protocols

ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, SMTP, SNTP

Utilities

NPort Administrator for Windows 95/98/ME/NT/2000/XP

Real COM/TTY drivers

Windows 95/98/ME/NT/2000/XP/2003 Real COM drivers, Linux real tty driver (contact Moxa to inquire about availability)

Configuration

Web Browser, Serial/Telnet Console, or Windows Utility

Power Requirements

Power Input

12 to 30 VDC

Power Consumption

305 mA (at 12V max.)

Mechanical

Casing

IP30 protection, aluminum case (1 mm)

Dimensions (W x D x H)

90 x 100.4 x 22 mm (including ears)
67 x 100.4 x 22 mm (without ears)

Gross Weight

0.135 kg (0.30 lb)

Environmental

Operating Temperature

0 to 60°C (32 to 140°F), 5 to 95% RH, for standard models
-40 to 75 °C (-40 to 167°F), 5 to 95% RH, for -T models

Storage Temperature

-20 to 85°C (-4 to 185°F), 5 to 95% RH

Regulatory Approvals

EMC

FCC Class A, CE Class A

Safety

UL, CUL, TÜV

Warranty

5 years

Ordering Information

NPort 5210

2-Port RS-232 Serial Device Server, 0 to 60°C operating temperature

NPort 5210-T

2-port RS-232 serial device server, -40 to 75°C operating temperature

Above item includes:

2-port Serial Device Server

Quick Installation Guide

NPort Document and Software CD-ROM

Power Jack to Terminal Block Power Cable

Optional Accesories

DK-35A

DIN-Rail Mounting Kit (35 mm)

DIN-Rail Power Supply

Click here for more information

Power Adaptor

Click here for more information

CBL-RJ45M9-150

8-pin RJ45 male DB9 cable, 150 cm

CBL-RJ45F9-150

8-pin RJ45 to female DB9 cable, 150 cm

CBL-RJ45M25-150

8-pin RJ45 to male DB25 cable, 150 cm

CBL-RJ45F25-150

8-pin RJ45 to female DB25 cable, 150 cm
