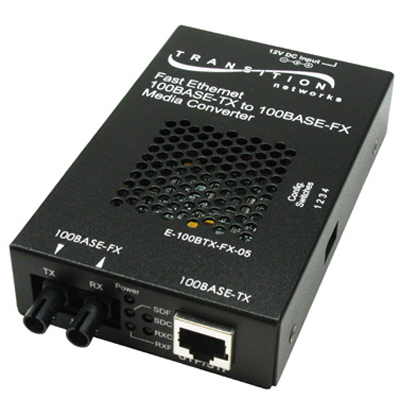

MODEL- E-100BTX-FX-05SC   VENDOR- TRANSITION NETWORKS

FEATURES- Fast Ethernet Stand-Alone Media Converter
       100BaseTX to 100BaseFX MM (SC)[2 km].
       Used in pairs, this media converter can extend distances between two
        twisted pair switches or a switch and a server up to 2 km over
        multimode fiber, or up to 120 km over single mode fiber.
       Using one media converter, a switch with a copper port can be
        connected to a switch with an existing fiber interface.
* Operates under heavy traffic loads without excess heat, so there is no
  need for a failure-prone internal fan.
* Round trip delay of only 40 bit times--far below the Class II rating of
  92 bit times.
* Auto-Negotiation (802.3u)
   Allows devices to perform automatic configuration to achieve the best
   possible mode of operation over a link.
* AutoCross
   Automatically detects and configures the twisted pair port on the
   converter to the correct MDI or MDI-X configuration.
* Link Pass Through
   Link Pass Through is a troubleshooting feature that allows the media
   converter to monitor both the fiber and copper RX ports for loss of
   signal.
* Far End Fault (FEF)
   A troubleshooting feature that is generally used in conjunction with
   Link Pass Through to notify both end devices of a loss of link.
* Automatic Link Restoration
   Transition Networks's converters will automatically re-establish link in
   all network conditions.
* Pause (IEEE 802.3xy)
   Pause signaling is an IEEE feature that temporarily suspends data
   transmission between two devices in the event that one of the devices
   becomes overwhelmed.
* The converters will also automatically re-establish link when connected
  to two 10/100 auto-negotiating switches if link is lost. With other
  manufacturers' converters the user must intervene to re-establish link.

  -- SPECIFICATIONs ----------------------------------
CONNECTORS   - (1) 100BaseTX (RJ-45) [100 m/328 ft.]
               (1) 100BaseFX 1300nm multimode (SC) [2 km/1.2 miles]
STANDARDS    - IEEE Std. 802.3 100BASE-FX, 100BASE-TX
FIBER OPTIC CONNECTOR-
               Multi mode  Min TX PWR    : -19.0 dBm
                           Max TX PWR    : -14.0 dBm
                           RX Sensitivity: -31.0 dBm
                           Max In PWR    : -14.0 dBm
                           Link Budget   :  12.0 dB
INDICATORS   - LEDs for Power, Fiber Link, Fiber Receive, Copper Receive,
                 and Copper Link.
APPROVALS    - UL listed and CSA certified
               FCC Class A, CISPR/EN55022 Class A, EN55024, EN61000,
                 CE Mark.
POWER        - External AC/DC required: 12 VDC, 0.5 A, unregulated,
                 standard.
DIMENSIONS   - 3.0"w x 1.0"h x 4.7"d
www.transition.com
