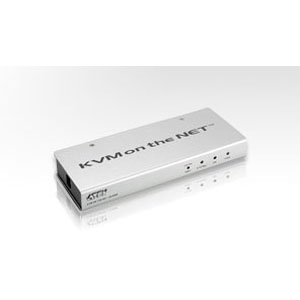

MODEL- CN5000             VENDOR- ATEN TECHNOLOGY

FEATURES- KVM on the Net
       ATENs KVM on the NET, CN5000, is an IP implemented KVM solution that
        allows network administrators to access computers from any station
        connected to the network, whether from the LAN, WAN, or the
        Internet. Network administrators can enjoy freedom from being bound
        to the server room; work from anywhere in the office, remote
        locations, or even from home! Since KVM on the NET uses TCP/IP as
        its communication protocol, network administrators can remotely
        access attached KVM switches, allowing remote control of the
        attached servers to perform many tasks with ease and speed, such as
        installing and running GUI applications, BIOS level
        troubleshooting, routine monitoring, system maintenance, system
        administration, and rebooting.
       It supports 10Base-T, 100Base-T, TCP/IP, and HTTP through the Java
        Client. The server can be accessed whether it is down the hall, on
        the other side of town, or thousands of miles away! Utilizing
        advanced security technologies, KVM on the NET provides password
        protection, advanced encryption technologies, sophisticated user
        filters user management, Radius server, stealth mode and automatic
        lockout to make sure that remote access is secure. This unit allows
        you to create up to 64 users, and 16 of them can login
        simultaneously. Also, KVM on the NET offers high resolution (up to
        1600 x 1200 @ 60Hz), user-friendly Windows GUI Client Software and
        Java client software.
    Includes CN5000 unit, Software CD, Power Adapter, PS/2 KVM Cable, Rack
      Mount Bracket, Quick start guide, User Manual.
* Remotely control your servers via the LAN, WAN, or the Internet.
* Supports 10Base-T, 100Base-T, TCP/IP, and HTTP through the Java Client.
* Support Radius servers
* Works with most KVM switches
* Create up to 64 users and allows up to 16 users for simultaneous login.
* One price - all software included
* Sophisticated Administrator software allows setup for network, security,
  and user management.
* Advanced security features: password protection, advanced encryption
  technologies, sophisticated user filters and user management, stealth
  mode and automatic lockout, and Radius server.
* User-friendly client software allows for video adjustment, bandwidth
  control and mouse synchronization.
* High video resolution: up to 1600 x 1200 @ 60Hz
* Windows GUI and Java based client software; Java client works with all
  operating systems.
* Upgradeable firmware
* Designed for both desktop and rack mount (rack mount kit included).

  -- SPECIFICATIONs -----------------------------------
INDICATORS   - LEDs for 10/100 Mbps, Link, Power
CONNECTORS   - Console: (1) 6-pin mini-DIN Female (PS/2) (for mouse)
                        (1) 6-pin mini-DIN Female (PS/2) (for keyboard)
                        (1) HDB-15 Female (for monitor)
               CPU    : (1) SPHD-15 female (for keyboard, mouse, monitor)
               LAN    : (1) RJ-45 female
PROTOCOLS    - 10Base-T Ethernet; 100Base-T Fast Ethernet; TCP/IP
ENCRYPTION   - SSL2.0, SSL3.0 and TLS1.0 protocol
RESOLUTION   - Up to 1600 x 1200 @ 60Hz
RESET SWITCH - (1) Momentary Switch
HOUSING      - metal
REQUIREMENTS - Pentium III 1 GHz or faster processor
               For the Windows Client, you must have DirectDraw 7.0 or
                 higher installed.
               The Windows Administrator Utility software, the Windows
                 Client software, the Log Server, and the Java Client
                 software all support Windows 9x, ME, 2000, and XP. Java
                 Client software supports various other operating systems,
                 such as Mac, Solaris, and Linux, etc.
        For the computer to be accessed by CN5000:
            Mouse settings for various operating systems are as follows:
               For Windows XP, set the mouse speed to the middle position
                 and disable Enhance Pointer Precision.
               For Windows 2000, set the mouse speed to the middle
                 position, and select None for mouse acceleration.
               For Windows NT/98, set the mouse speed to the slowest
                 position.
               For Windows ME, set the mouse to the middle position, and
                 disable mouse acceleration.
               For Redhat Linux, set the mouse threshold to the middle
                 position, and mouse acceleration to the middle position.
DIMENSIONS  - 8.0"w x 1.0"h x 3.2"d                     WT.- 1.0 lbs.
