CONTEC

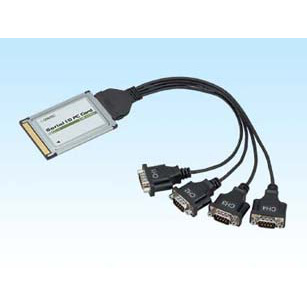

4-Port RS-232C Serial I/O Card for CardBus

885628_Contec_Microelectronics_COM4CBH.jpg-4_PORT_RS_232C_SERIAL_I_CARD_FOR_CARDBUS

Manufacturer	CONTEC
Mfg. Part #	COM-4(CB)H
ITEM#	383954
Unit Price	$343.31 (~CAD$342.59)
Availability	In Stock
Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume	Each	Landing Price/Each
1 ~ 2	$343.31 (~CAD$342.59)	$367.06 or less (~CAD$366.29)
3 ~ 7	$339.91 (~CAD$339.20)	$355.99 or less (~CAD$355.25)
8 ~ 14	$336.51 (~CAD$335.81)	$349.82 or less (~CAD$349.09)
15 ~ 19	$333.11 (~CAD$332.42)	$345.73 or less (~CAD$345.01)
20 ~	$293.82 (~CAD$293.21)	$305.50 or less (~CAD$304.86)

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:
Features :

Can be used a standard COM port in Windows or Linux environments

Up to two cards can be installed in one PC (one only when using Windows Me, 98SE, 98 or Linux)

Includes attachment to protect the PC card and cable socket

Specifications :

Number of channels: 4

Interface: RS232C

Transfer method: Asynchronous serial transfer

Baud rate: 2 to 921,600bps - software selectable
dependent upon environment

Data length: 5, 6, 7, 8bits
1, 1.5, 2 stop bits
Software selectable

Parity check: Even, odd, non-parity
Software selectable

Controller chip: 162850 or equivalent

FIFO buffers: 128byte receive and 128byte transmit (each channel)

Cabling distance: 15m (typ)

Interrupt requests: 1 level use
all signals connect as a single interrupt

I/O address: Any 32byte boundary

Power consumption: 3.3VDC 200mA (max)

Operating temperature: 0 to 50°C

Operating humidity: 10 to 90% (no condensation)

Length of supplied cable: 250mm (9.85")

Bus specification: PC Card standard Cardbus

Card size: Type II
