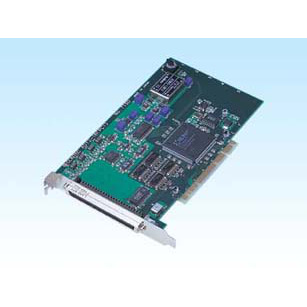

Product Description:
FEATURES
16 single-ended or 8 differential inputs
Conversion speed: 10£gsec/channel
Resolution: 12-bits
4 TTL level inputs/ 4 TTL level outputs
|
SPECIFICATIONS
ANALOG INPUT
No. of channels: 16 single-ended or 8
differential
Range:
-Non-insulated bipolar: ±10V, ±5V, ±2.5V,
±1.25V
-Non-insulated unipolar: 0~10V, 0~5V, 0~2.5V, 0~1.25V (specifiable by
software for each channel)
Voltage: ±15V max.
Impedance: 1M£[ min.
Resolution: 12-bit
Non-linearity error:
- ±2LSB (±10V, ±5V, 0~10V, 0~5V range)
- ±4LSB (±2.5V, ±1.25V, 0~2.5V range)
- ±8LSB (0~1.25V range)
Conversion rate: 10£gsec/channel at max.
DIGITAL I/O
No. of channels: 4 non-insulated (TTL-level active high)
PROGRAMMABLE TIMER
Setting cycles: 500~1,073,741,824,000nsec (specifiable in
steps of 250nsec)
Status: Count-up, count-up overrun
Timer output signal: TTL-level 250nsec low pulse, low output
current IOL = 24mA
External trigger input
- Signal: Non-insulated one point input (TTL-level rising edge)
- Status: Trigger input, trigger input overrun
INTERRUPT
Level: 1 point
Causes: 8 types
GENERAL
I/O addresses: 32ports occupied
Connectors: PCR-E96LMD or equivalent
Power consumption: +5VDC 700mA max.
Operating condition: 0 ~ 50°C, 20~90% (no condensation)
PCI bus specification: 32-bit, 33MHz, 5V
Dimensions: 6.94" x 4.21" (176.4mm x 107.0mm)
|
|
