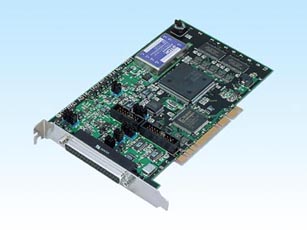

CONTEC 16 Bit/16 CHANNEL high-speed Multi-Function I/O

Manufacturer CONTEC Mfg. Part # AD16-16U(PCI)EH ITEM# 383754 Unit Price $902.98 (~CAD$901.09) Availability In Stock Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume Each Landing Price/Each 1 ~ 2 $902.98 (~CAD$901.09) $942.23 or less (~CAD$940.26) 3 ~ 7 $892.99 (~CAD$891.12) $923.24 or less (~CAD$921.31) 8 ~ 14 $883.01 (~CAD$881.16) $910.82 or less (~CAD$908.91) 15 ~ 19 $873.02 (~CAD$871.19) $899.94 or less (~CAD$898.05) 20 ~ $863.03 (~CAD$861.22) $889.61 or less (~CAD$887.74)

Shipping and Handling: Singular Select... Regular [6-9 Business Days] -- $39.25[CAD$39.17] Priority [4-6 Business Days] -- $68.25[CAD$68.11] Extreme [2-4 Business Days] -- $97[CAD$96.8]  INTERNATIONAL GROUND SHIPPING: For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation No other hidden fees will be collected from you when packages arrive. Guaranteed [ Detailed Explanation ]

Product Description: Specifications : ANALOG INPUT Isolated specification: Un-isolated No. of channels: 16 single-ended, 8 differential Range: - Bipolar: ±10V, ±5V, ±2.5V - Unipolar: 0~+10V, 0~+5V (jumper setup) Voltage: ±15V max. Impedance: 1MÙ min. Resolution: 16-bit Conversion rate: 1ìsec/channel max. Non-linearity error: ±5LSB Buffer memory: 256M Word FIFO or 256M Word RING Conversion start trigger: Software, conversion data comparison, TTL level external signal Conversion stop trigger: Specified sampling data, input data comparison, TTL level external signal, software ANALOG OUTPUT Isolated specification: Un-isolated No. of channels: 1 Range: - Bipolar: ±10V - Unipolar: 0~+10V (jumper setup) Current: ±5mA Impedance: 1Ù max. Resolution: 16-bit Conversion rate: 10ìsec max. Non-linearity error: ±3LSB DIGITAL I/O Type: TTL-level (positive logic) Input: - No. of channels: 4 (counter control input and common use are possible) Output: - No. of channels: 4 (counter output and selection are possible) PROGRAMMABLE TIMER Device: 16-bit counter three-pieces (i8254 or equivalent) Timer: 2~7 x 10^13�sec Clock: Inside (4MHz) or external signal (jumper setup) INTERRUPT Level: One of IRQ 5, 7, 9, 11, 12, 15 Causes:16 types GENERAL DMA: - Transfer channel: 1 (either channel 5, 6, or 7 is chosen by software) I/O addresses: Any 16-byte boundary Connectors: - CN1(AIO): 37-pin D-type female - CN2(DIO): 16-pin header male Power consumption: DC+5V 2000mA max. Operating condition: 0~50°C, 20~90% RH (no condensation) Bus specification: 32-bit, 33MHz, 5V Dimensions: 13.4" x 4.7" (340.5.0mm x 120.0mm)
