Product Description:
| Product Description |

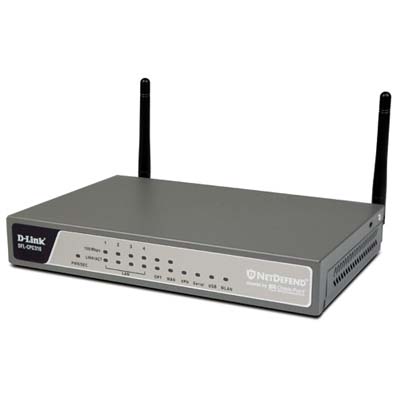

D-Link DFL CPG310 - security appliance |
| Device Type |
Security appliance |
| Enclosure Type |
External |
| Dimensions (WxDxH) |
7.9 in x 5 in x 1.3 in |
| Weight |
1.8 lbs |
| Data Link Protocol |
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g |
| Network / Transport Protocol |
PPTP, IPSec, PPPoE |
| Remote Management Protocol |
Telnet, HTTP, HTTPS |
| Features |
Firewall protection, dynamic IP address assignment , DHCP
support, NAT support, VPN, PAT support, Syslog support, Stateful Packet
Inspection (SPI), print server |
| Manufacturer Warranty |
1 year warranty |
| General |
| Device Type |
Security appliance |
| Built-in Devices |
Print server |
| Width |
7.9 in |
| Depth |
5 in |
| Height |
1.3 in |
| Weight |
1.8 lbs |
| Networking |
| Form Factor |
External |
| Connectivity Technology |
Wireless, wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE
802.11g |
| Network / Transport Protocol |
PPTP, IPSec, PPPoE |
| Routing Protocol |
Static IP routing |
| Remote Management Protocol |
Telnet, HTTP, HTTPS |
| Performance |
VPN throughput (3DES IPSec ) : 20 Mbps |
| Capacity |
Concurrent connections : 6000
User licenses : 5 |
| Status Indicators |
Port status, link activity, power, link OK, 100M
device connected |
| Features |
Firewall protection, dynamic IP address
assignment , DHCP support, NAT support, VPN, PAT support, Syslog
support, Stateful Packet Inspection (SPI), print server |
| Encryption Algorithm |
DES, Triple DES, MD5, AES, 128-bit WEP, 64-bit
WEP, SHA-1, WPA, WPA2, WPA-PSK |
| Authentication Method |
Secure Shell (SSH) |
| Compliant Standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, X.509,
IEEE 802.11i |
| Antenna |
| Antenna Qty |
2 |
| Directivity |
Omni-directional |
| Expansion / Connectivity |
| Interfaces |
1 x network - Ethernet 10Base-T/100Base-TX -
RJ-45 ( WAN )
4 x network - Ethernet 10Base-T/100Base-TX - RJ-45
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ( WAN / DMZ )
1 x management - console
2 x USB - 4 pin USB Type A
1 x network - Radio-Ethernet |
| Miscellaneous |
| Compliant Standards |
FCC Class B certified, CE, UL, EN 60950 |
| Power |
| Power Device |
Power adapter - external |
| Power Consumption Operational |
15 Watt |
|
