Product Description:
cp800um

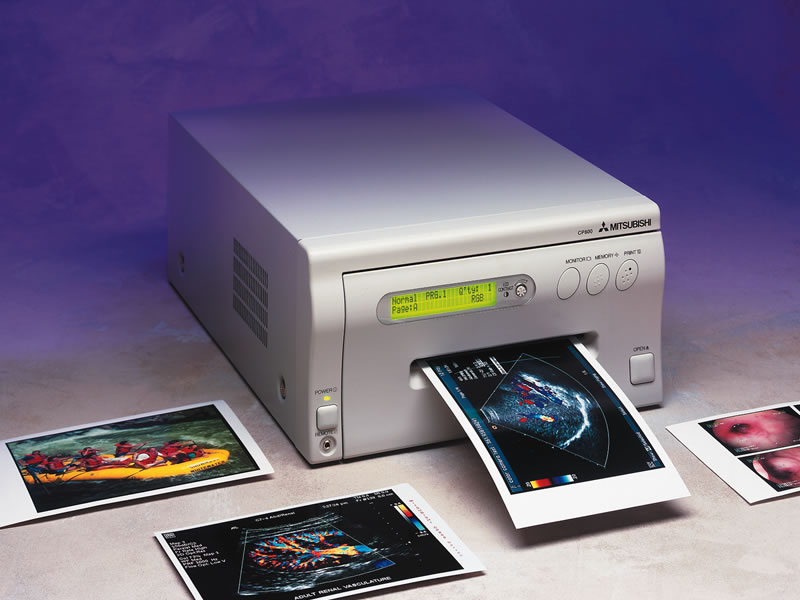

The Mitsubishi CP-800UM is a Roll-type Dye sublimation Analog Video/RGB
Color Printer that offers high resolution, full color printing with
8-frame memories which enable image capture while printing. It is
designed for a variety of color imaging applications including medical
and photography. The CP-800UM produces 160 S-size (5" x 4") prints or
100 L-size (5" x 7") prints per roll at speeds as little as 24 seconds
per print. A high density 222 dpi high resolution thermal transfer
printhead produces exceptionally sharp images with resolution up to
1024 x 1000 dots. CP-800UM is compatible with a variety of inputs
including RGB, S-video, NTSC composite video, and is RS-232C
controllable. It has a choice of 100/120 VAC or 220/240 VAC input power
for worldwide use, and a laminating layer for extended print life. The
CP-800UM has UL2601-1/C-UL compliance, Jam-free mechanism, 12 MB Memory
and Image Size 3.5" X 4.6" and 4.5" X 6.3".
Features:
- Multi-image prints of 2, 4 or 6 per print
- Two modes of remote operation
- RGB analog video, NTSC composite video, S-video, RS-232C port,
front and rear remote jacks
- 222 dpi thermal head
- Jam-free mechanism
- Economical print capacity of 160 prints for S size, 100 prints
for L size
- Accepts 4-panel media with laminated coating for superior
photographic quality
- Paper roll and ink sheet cartridge are mounted from the top of
the slideout mechanism for easy accessibility
- Compact unit size
- Easy color setting
- Multiple image spooling while printing
- 48 character comment printing
- 4 non-volatile memories save user presets.
Compatible
Media: CK-800S, CK-800L, CK-800FS4P, CK-800FL4P
|
| Manufacturer |
Mitsubishi Digital
Electronics America, Inc.
|
| Manufacturer Part Number |
CP-800UM |
| Manufacturer Website Address |
www.mitsubishi-imaging.com |
| Product Name |
5 X 7 CONTINUOUS TONE ANALOG COLOR PRINTER (VIDEO/RGB)
|
| Marketing Information |
If its Medical Imaging, Its Mitsubishi. The
Mitsubishi CP-800UM is a Roll-type Dye sublimation Analog Video/RGB
Color Printer that offers high resolution, full color printing with
8-frame memories which enable image capture while printing. It is
designed for a variety of color imaging applications including medical
and photography. The CP-800UM produces 160 S-size (5" x 4") prints or
100 L-size (5" x 7") prints per roll at speeds as little as 24 seconds
per print. A high density 222 dpi high resolution thermal transfer
printhead produces exceptionally sharp images with resolution up to
1024 x 1000 dots. CP-800UM is compatible with a variety of inputs
including RGB, S-video, NTSC composite video, and is RS-232C
controllable. It has a choice of 100/120 VAC or 220/240 VAC input power
for worldwide use, and a laminating layer for extended print life.
|
|
Printer
Type
|
Color
Printers |
| Print
Method |
Dye
sublimation thermal transfer |
Printable
Colors
|
16.7
million colors
|
| Printing Speed |
S size Approx. 24
sec/sheet (standard)
L size Approx. 36 sec/sheet (standard) |
Paper
size
|
S
4.6 x 5" (116 x 127 mm)
L 5 x 7.4" (127 x 187 mm) |
Size
|
S 5
x 4.7" (88 x 117 mm)
L 4.6 x 6.3" (117 x 159 mm) |
| Resolution |
500 dots (max. S
size) or 1024 x 1000 (L size) |
| Dot Density |
222 dpi |
| Interface |
RGB analog video,
NTSC composite video, S-video, RS-232C port, front and rear remote
jacks. |
Memory
|
12
MB (8 frame memory |
| Input Voltage |
AC 100-120V 50/60
Hz |
| Power Consumption |
200 watts
(printing); 24 watts (standby) |
Dimensions(W
x D x H)
|
11.0
x 15.7 x 5.9" (280 x 399 x 150 mm)
|
| Weight |
31.9 lbs. (14.5 kg) |
| Optional Media |
CK800S 3 panel S
size 160 print Paper/Ink Set
CK800L 3 panel, L size, 100 print Paper/Ink Set
CK800FS4P 4 panel, S size, 100 print Paper/Ink Set
CK800FL4P 4 panel, L size, 60 print Paper/Ink Set |
| ACCESSORIES |
|
|
Operation manual, 2 types of power cord, spacers (4), ink
sheet cassette, remote control, media installation guide sheet
|
|
