Product Description:

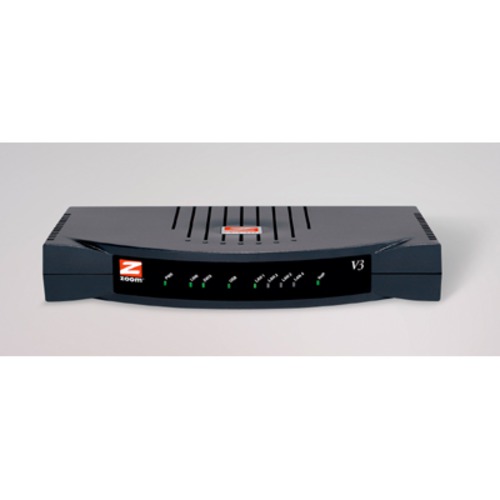

MODEL- 5801 VENDOR- ZOOM TELEPHONICS
FEATURES- VoIP Telephone Adapter with G.711, iLBC & G.729 Codecs
Does NOT include VoIP Service.
The economical Zoom Model 5801 and Model 5802 Voice over IP
Telephone Adapters allow standard analog telephones to make and
receive calls over a broadband Internet connection. Simply plug a
conventional or cordless phone into the adapter and then plug the
telephone adapter into a broadband-connected router or Internet
gateway. A minimum of five attached phones can be rung
simultaneously using the built-in ring generator.
The Model 5801 and Model 5802 support industry-standard Session
Initiation Protocol (SIPv2) and work with a wide range of service
providers and SIP-based VoIP equipment.
Both models provide one FXS and one FXO port and allow calls to be
bridged between the Public Switched Telephone Network (PSTN) and
Voice Over IP.
The FXO port of the adapters also include the TelePort, an
intelligent relay that allows a single phone to place and receive
both VoIP calls and calls over the PSTN. PSTN fail-over allows the
5801 and 5802 to automatically route calls over the dial-up phone
network when power is lost. PSTN support also allows emergency
dialing using services like 911, 112, or 999 calling.
Voice over IP Service providers can deliver a rich variety of
advanced telephone services through the Model 5801, or 5802
including CLASS features such as Call Waiting, Caller
Identification, Call Transfer, Call Hold, Call Forwarding,
Distinctive Ringing, and Voice Message Waiting Indication.
The VoIP terminal adapters can be configured remotely using a TFTP
or HTTP download from the service provider and updates to the
firmware can be automatically delivered. Local configuration is
done with a browser-based graphical user interface.
Includes VoIP telephone adapter, Power adapter, Quick Start Guide,
CD ROM, Ethernet cable, Phone cord.
* Economical solution provides Voice over the Internet using regular
telephones.
* Uses industry-standard Session Initiation Protocol (SIP).
* Clear, natural-sounding voice quality.
* Provides one FXS and one FXO port
* Supports remote delivery of firmware updates
* Zooms TelePort feature allows one or more analog phones to place and
receive calls over the Internet and also over the Public Switched
Telephone Network.
* Supports automatic provisioning by service providers
* Supports Quality of Service (QoS)
* Supports STUN (Simple Traversal of UDP over NATs)
* Supports advanced telephone services including CLASS features such as
Call Waiting, Caller Identification, Call Transfer, Call Hold, Call
Forwarding, Distinctive Ring, and Voice Message Waiting Indication.
* Proven compatibility with SIP-standard servers from Asterisk, Cisco,
NetCentrex, Quintum and more.
-- SPECIFICATIONs ---------------------------------
ANALOG TELEPHONE PORTS-
(1) FXS type Loop-start interface with RJ-11
(1) FXO analog interface with TelePort and RJ-11
Up to 5 REN (Ringer Equivalence Number), supports more than
5 typical telephones.
Programmable Ring Patterns
Call progress tones supported: Initial dial tone, Secondary
dial tone, Stuttered dial tone, Message waiting dial tone,
Call forward dial tone, Pre-ringback dial tone, Ring back
tone, Call waiting tone, Call holding tone, Call
disconnect tone, Call conference tone, Busy tone, Reorder
tone (network busy/fast busy), Off hook warning.
Power Fail Over
Auto switch to PSTN for emergency calling using 911 and
other programmed three digit codes.
FXS to FXO call bridging
INDICATORS - LEDs for Power, LAN link, VoIP ready, VoIP call in progress,
PSTN port ready, voice message waiting.
VOICE OVER IP (VoIP) PROTOCOLS-
SIPv2 - Session Initiation Protocol (RFC 3261, 3262, 3263,
3264).
SDP - Session Description Protocol (RFC 2327)
RTP - Real Time Protocol (RFC 1889, 1890)
RTCP - Real-Time Control Protocol (RFC 1889)
X-NSE - Tone Events for SIP/RTP (RFC 2833)
AVT - Tone Events for SIP/RTP (RFC 2833)
Power-on Auto Registration
Re-registration with SIP Proxy Server
SIP over UDP
SIP authentication (HHP Digest with MD5)
NETWORK PROTOCOLS-
IPv4 - Internet Protocol Version 4 (RFC 791)
TCP - Transmission Control Protocol (RFC 793)
UDP - User Datagram Protocol (RC 768)
ICMP - Internet Control Message Protocol (RFC 792)
RARP - Reverse Address Resolution Protocol (RFC 903)
ARP - Address Resolution Protocol (RFC 826)
DNS - Domain Name Server
DHCP Client - Dynamic Host Control Protocol (RFC 2131)
NTP - Network Time Protocol (RFC 1305)
SNTP - Simple Network Time Protocol (RFC 2030)
STUN - Simple Traversal of UDP over NATs (RFC 3789)
HTTP - HyperText Transfer Protocol
TFTP - Trivial File Transfer Protocol (RFC 1350)
VOICE CODECS - G.711 - Pulse Code Modulation
iLBC (Internet Low Bitrate Codec)
G.729
TELEPHONY - Q.24 DTMF generation and detection
Configurable tone frequency and on/off cadence generation
Caller ID Generation and Detection (Type I and II)
3-way conference calling with local mixing
Message waiting indicator light
G.711 Fax Pass-through
T.38 - Real-Time Fax over IP (available January 2006)
CLASS feature support
G.165, G.168 compliant line echo cancellation
Nonlinear echo cancellation
Double talk detection
QUALITY OF SERVICE SUPPORT-
Layer 2 Class-of-Service (CoS) Tagging (802.1P)
Layer 2 (802.1Q VLAN)
Layer 3 Type-of-Service (ToS) Tagging (RFC 791/1349)
Layer 3 DIFFServ (RFC 2475) i 0fo
SECURITY - Provisioning/Configuration/Authentication
Password-protected, Web based administration
ARC4 Encryption for TFTP Configuration Profiles
Authentication (Digest using MD5)
REQUIREMENTS - High speed Internet connection (typically a DSL or data-over
cable connection).
A router or gateway to share the broadband Internet
connection.
A Touchtone telephone (conventional analog phone) or a fax
machine.
CD-ROM drive in a personal computer which supports a Web
browser (Windows, Macintosh, Linux or other) and is
connected to the router.
DIMENSIONS - 5.7" x 4.4" x 1.1"
www.zoom.com
|
