MODEL- CX2821-656         VENDOR- SOCKET

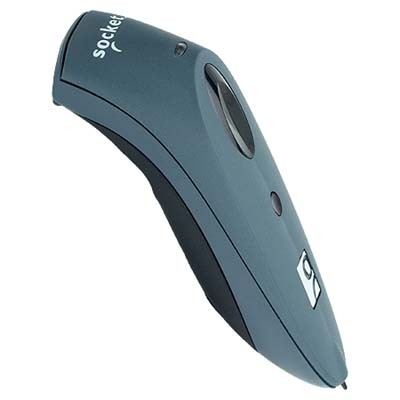

FEATURES- Cordless Hand Scanner 7P (Ruggedized)- Single
       Cordless Hand Scanner with Bluetooth Wireless Technology, Class 2
        Laser.
       The Cordless Hand Scanner (CHS) 7P Ruggedized will enable you to
        collect bar coded data without being tied to your mobile or desktop
        computer! This innovative device combines the power of laser bar
        code scanning with fuzzy logic and the convenience of Bluetooth
        wireless technology in a single compact, lightweight device that is
        ergonomically designed to fit comfortably in the palm of your hand.
        The CHS 7P Ruggedized can withstand multiple 5 foot drops to
        concrete and is IP54 compliant.
       Bluetooth wireless technology transforms how devices connect with
        each other, offering you new possibilities for using your mobile
        computer with other devices without the hassle of cables or the
        awkwardness of a protruding antenna. Sockets CHS 7P Ruggedized
        features a powerful Class 1 Bluetooth radio, so you can stay
        connected to your laptop or desktop at the maximum possible range
        -- even when connected to the weaker Class 2 Bluetooth radios found
        in many mobile devices.
       Bar code scanning is the most efficient way to enter data into a
        computer. If the data to be entered is bar coded, using a laser
        scanner is 50 times faster and 10,000 times more accurate than
        manual data entry. The CHS 7M complies with the UCC 2005 Sunrise
        Date mandate.
       The CHS 7P Ruggedized with Bluetooth wireless technology uses
        minimal power, so you can operate for hours without having to
        recharge batteries. The CHS 7P includes SocketScan software which
        directs scanned data into any Windows, RIM, Palm or Symbian
        application as if it were manually typed. Plus, Sockets renowned
        Bluetooth technology makes it easy to establish and maintain a
        reliable connection between the CHS and host computer.
* Compatible with the following mobile computers if Bluetooth enabled:
   - Pocket PC 2003 (Windows Mobile)
   - Windows XP, or XP Tablet
   - RIM 6.0.x (BlackBerry 7290 or 7100 series)
   - Palm PDA
   - Symbian OS device (Series 60 or 80)
* Powered by two rechargeable AAA NiMH batteries. 110-250V AC charge module
  included. Optional vehicle charger available.
* Expected battery life under normal operating conditions: 8000 scans.
* Battery status warning light
* Standard alkaline batteries can be used if needed
* Stylus tip built into the device handle lets the scanner double as a
  stylus for Pocket PCs and pen tablets.
* Scanning Features
   - Performance version features a powerful Class 2 laser for demanding
     scanning applications.
   - Fuzzy logic for scanning damaged, poor quality or hard-to-read bar
     code labels.
   - SocketScan keyboard emulation software directs scanned data into any
     Windows, Palm or Symbian application as virtual key strokes.
   - SocketScan allows the user to add Prefix and/or Suffix functions, such
     as Carriage Return and Tab, to further eliminate manual keystrokes.
   - Supported bar code symbologies can be easily enabled or disabled with
     SocketScan's "Symbology Selector".
   - SocketScan "Scan Demo" reports symbology, length and decoded data of
     any scanned bar code.
   - This product is 2005 Sunrise Date compliant
* Bluetooth Features
   - Class 1 radio with Bluetooth wireless technology has a maximum range
     of 300 feet (100 m) if connected to another Class 1 Bluetooth device.
   - Uses Bluetooth Serial Port profile
   - Connection indicator light
   - When connected to the Class 2 Bluetooth radio found in many host
     devices, CHS range should be approximately 50% greater when used in an
     indoor environment and 100% greater when used outdoors. Bluetooth
     range can be affected by many variables and may be significantly
     greater or shorter than specified.

  -- SPECIFICATIONs -----------------------------------
INTERFACE STANDARD-
               Bluetooth Serial Port Profile
SCANNING CHARACTERISTICS/BAR CODE SYMBOLOGIES DECODED-
               Code 39, UPC/EAN, MSI, Code 128, Code 93, Codabar,
                 Interleaved 2 of 5, Discrete 2 of 5, RSS-14
LASER        - Class 2 with fuzzy logic
DECODE DISTANCE-
               2.2 to 20+ inches depending on symbol size, symbology, label
                media, W-N Ratio, scan angle.
BLUETOOTH CHARACTERISTICS-
               Protocol   : Bluetooth 2.45 GHz ISM band frequency hopping
               Antenna    : Integrated
               Radio Range: Up to 330 ft (100 m), depending on environment
               Connection : Point-to-point
               Security   : Encrypted link
               RF Power   : Class 1 radio: Typ. Output: 14 dbm
O/S SUPPORT  - Windows Mobile with Pocket PC 2003
               Windows XP
               Windows XP Tablet
               RIM 6.0.x (BlackBerry 7290 or 7100 series)
               Palm OS 5.2 or later
               Symbian OS Series 60 or Series 80
SOFTWARE     - SocketScan software includes these features:
               Reads bar code data into any Windows application as if it
                 were manually typed.
               Lets you add Prefixes and/or Suffixes (e.g., Carriage Return
                 or Tab) to further eliminate manual keystrokes.
               Lets you assign a beep tone or .WAV file to signal a good
                 scan.
               Lets you easily enable/disable any of 18 of the most common
                 symbologies.
               Scan Demo reports symbology, length and decoded data (in
                 ASCII or Hex) of any scanned bar code (among 18 supported
                 symbologies).
POWER SOURCE - Two AAA NiMH rechargeable batteries
               Expected Battery Life with Normal Operation: 8000 scans
DIMENSIONS   - 1.2"w x .35"h x 4.9"d                    WT.- 0.23 lbs.
