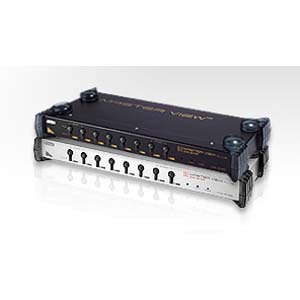

MODEL- CS9138KIT          VENDOR- ATEN TECHNOLOGY

FEATURES- MasterView Plus 8-Port KVM switch with Cable Kit
       Your business is growing faster than you expected and four computers
        simply are not enough to meet your needs. Not a problem! ATENs
        eight-port MasterView Plus is just the tool you need to help reduce
        the need for redundant hardware. Eight monitors, mice and keyboards
        are simply too expensive, bulky and down-right inconvenient for
        most system administrators. Why bother when you can control all
        eight, or even up to 512 computers with a single keyboard, monitor
        and mouse. Just think of the time, space and money you will save.
       But, our MasterView Plus is much more than a simple eight-port KVM
        switch. Built-in AutoScan mode lets you conveniently monitor every
        attached computer for a specified amount of time, while our On
        Screen Display technology allows you to assign a unique name to
        each computer and access it via a slick, menu-driven interface.
       With it s 1U, 19" rack-mountable casing and status-monitoring LEDs,
        the MasterView Plus is the perfect switch for your server room or
        any other multi-computer environment.
    Includes CS9138 KVM Switch, Power Adapter (2) Rack Mounting Brackets
      with Screws, User Manual, Cable kit.
* Cascadable To Three Levels - Control Up to 512 PCs From a Single Console.
* No Software Required - PC Selection via Front Panel Switches, Hot Keys,
  or OSD (On Screen Display).
* Quick View Scan Feature for Monitoring Selected PCs
* PS/2 and Serial Mouse Emulation Provided For System Bootup
* Consoles PS/2 Mouse Controls All Connected PCs - Even Those With Serial
  Mice.
* Microsoft Intellimouse Pro, Logitech FirstMouse, MouseMan, IBM
  Scrollpoint Mouse Support.
* SVGA, VGA and Multisync Monitor Support
* Superior Video Quality; 1920x1440; DDC2B
* LED Display For Easy Status Monitoring
* Supports High Quality CS Series Custom Connector Cables
* Rack Mountable in 19" System Rack
* Hot Pluggable - Add or Remove PCs for Maintenance Without Powering Down
  the Switch.

  -- SPECIFICATIONs -----------------------------------
CONNECTORS   - Computer: (8) 6-pin mini-DIN Female (PS/2) (for keyboard)
                         (8) 6-pin mini-DIN Female (PS/2) (for mouse)
                         (8) HDDB15 Male (for monitor)
               Console : (1) HDDB15 Female (for monitor)
                         (1) 6-pin mini-DIN Female (PS/2) (for keyboard)
                         (1) 6-pin mini-DIN Female (PS/2) (for mouse)
EMULATION    - Keyboard: PS/2, AT
               Mouse   : PS/2, Serial
INDICATORS   - LEDs for On-Line, Power, Selected
HOUSING      - Metal case
SCAN INTERVAL- 3, 5, 10, 15, 20, 30, 40, 60 seconds
PORT SELECTION-
               Push Buttons, Hot Keys, or OSD
VIDEO RESOLUTION-
               1920x1440; DDC2B
REQUIREMENTS - VGA, SVGA, or Multisync monitor capable of the highest
                 resolution that you will be using on any PC in the
                 installation.
               PS/2 Style Mouse
               PS/2 Style Keyboard
               VGA, SVGA or Multisync card
               6-pin mini-DIN (PS/2 Style), or DB-9 (standard serial),
                 mouse port.
               6-pin mini-DIN (PS/2 Style) keyboard port with +5V DC on pin
                 4 and Ground on pin 3, or 1 5-pin mini-DIN (AT Style)
                 keyboard port with + 5 DC on pin 5 and Ground on pin 4.
POWER SOURCE - DC 9V, 400 mA (max)
DIMENSIONS   - 17.0"w x 1.75"h x 6.0"d
