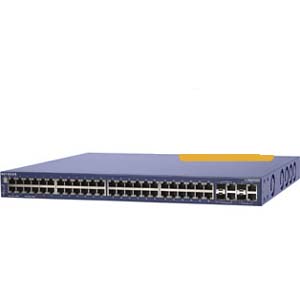

MODEL- FSM7352PSNA        VENDOR- NETGEAR

FEATURES- SWITCH 48-PT 10/100 POE + 4-PT
       NETGEARs high-performance, stackable, Layer 3 Fast Ethernet switch
        with Power over Ethernet (PoE), delivers maximum throughput and
        flexible deployment where you need it - to high-density user
        communities with VoIP, access points or IP-based surveillance
        camera requirements. With IEEE 802.3af PoE on all 48 ports, the
        ProSafe FSM7352PS features 48 10/100 Mbps ports and four
        10/100/1000 ports which enable fiber connectivity through four hot-
        swappable Small Form-factor Pluggable (SFP) gigabit interfaces.
        The non-blocking design of the switch delivers simultaneous, full
        wire-speed, low-latency throughput to all ports. In addition, its
        1U rack-mount form factor uses less rack space and provides lower
        per-port cost than comparable PoE switches.
       Dynamic Layer 3 switching ensures reliable routing between VLANs and
        network segmentation where and when you need it, at no additional
        cost. Plus, convenient front-panel stacking via standard Gigabit
        Ethernet interfaces provides expandability to meet your growing
        networks needs.
       Robust security features include IEEE 802.1x port-based
        authentication and access control lists, ensuring that only
        authorized users can access your network. Secure management of the
        switches is available through Secure Sockets Layer (SSLv3) for the
        Web GUI and Secured Shell (SSH) for command-line sessions.
        Additionally, multiple switches can be securely managed via SNMPv3
        with NETGEARs ProSafe Network Management Software NMS100. With the
        high-value price point, flexible design, and reduced maintenance
        requirements, NETGEARs ProSafe FSM7352PS solution yields a high
        return on investment, and is ideal for delivering highly reliable,
        converged voice, video, and data services over a single network
        infrastructure.
       In desktop switching environments, wire-speed performance with full
        QoS control for all interfaces is critical for emerging
        technologies such as Voice over IP (VoIP). The 4 Gigabit Ethernet
        combo interfaces provide unprecedented flexibility, whether you are
        stacking between switches, attaching bandwidth-thirsty file
        servers, or aggregating critical data to the core of your network.
       PoE optimizes the installation and power management of IEEE 802.3af
        standard based network devices such as access points, VoIP phones,
        and IP-based surveillance cameras. PoE reduces installation costs
        and frees your wireless deployment from restrictions due to power
        outlet locations.
       Simplify and reduce IT staff workload and mean time-to-repair with
        intuitive, GUI-based device configuration, and an industry-standard
        command-line interface (CLI). New front-panel stacking capabilities
        allow you to build a single-IP manageable device with up to eight
        switches utilizing standard copper or fiber Gigabit Ethernet
        interfaces. Comprehensive Layer 2 and Layer 3 protocol support
        ensures compatibility and interoperability.
    Includes ProSafe Gigabit L3 Managed Switch, Null modem cable, Rubber
      footpads, Power cable, Rack-mount kit, Installation Guide, Resource
      CD-ROM with 30 day trial of NMS100, Warranty/Support information
      card.
* Supply power to wireless access points and surveillance cameras over Cat-
  5 cabling.
* IEEE 802.3af power on all 48 ports
* Powers up to 48 Access points, VoIP phones, or IP-based Surveillance
  cameras.
* 48 10/100 Mbps Fast Ethernet with PoE
* 4 10/100/1000 Mbps copper Gigabit Ethernet combo with 4 Small Form-factor
  Pluggable (SFP) fiber interfaces.
* Front panel stacking delivers a single-IP manageable switch of up to 8
  units.
* Full Layer 2 and Layer 3 switching
* Flexibility of fiber connections with combo ports
* 4 Gigabit Ethernet interfaces provide 2 more switch ports than
  competitive products.

  -- SPECIFICATIONs -----------------------------------
INTERFACES   - (48) RJ-45 connectors for 10BASE-T and 100BASETX (Auto
                    Uplink-and PoE on all ports).
               ( 4) 1000Base-T with optional SFP connectors for fiber
                      connection.
               ( 1) RS-232 Console Port
LAYER 2 SERVICES-
               IEEE 802.1Q Static VLAN (Up to 4k)
               IEEE 802.1p Class of Service (CoS)
               IEEE 802.1D Spanning Tree Protocol
               IEEE 802.1w Rapid Spanning Tree
               IEEE 802.1s Multiple Spanning Tree
               IEEE 802.3ad Link Aggregation (LACP)
               IEEE 802.1x Port Access Authentication
               IGMP v1, v2 Snooping Support
               Broadcast Storm Protection
LAYER 3 SERVICES-
               VLAN routing
               Port routing
               RIP v1/v2 (RFC 1057, 2453)
               OSPF v2
               VRRP
               ACLs
               DiffServ QOS (RFC 2998)
               DHCP/Bootp Relay (RFC3046)
MANAGEMENT   - SNMP v1, v2c, v3
               RFC 1157, 1901-1910, 2574, 2575
               RFC 768 UDP
               RFC 854-859 Telnet
               RFC 951 BootP
               RFC 1213 MIB II
               RFC 1757 RMON groups 1,2,3, and 9
               RFC 1215 SNMP Traps
               RFC 1493 Bridge MIB
               RFC 1643 Ethernet Interface MIB
               RFC 1534 DHCP and BootP Interoperation
               RFC 2131, 2132 DHCP and BootP
               RFC 2865 RADIUS
               RFC 2866 RADIUS Accounting
               Private Enterprise MIB
               Port Mirroring Support
               RFC 2236 IGMP v2
               RFC 2030 Simple Network Time Protocol (SNTP)
               SYSLOG
PERFORMANCE  - Forwarding modes     : Store-and-forward
               Bandwidth            : 17.6 Gbps (non-blocking)
               Switch latency       : < 80 for 64-byte frames
               System memory        : 256 MB
               Packet buffer memory : 122 KB embedded memory per port
               Code Storage (Flash) : 16
               Address database size: 16K media access control(MAC)
                                        addresses.
               Number of VLANs      : 512 (1-4096)
               Number of trunks     : 6
               Number of Queues     : 8
               Number of routes     : 128
               Jumbo frame support  : up to 9K packet size
               Acoustic noise       : (ANSI-S10.12) 60
               Heat Dissipation     : 18.99 BTU/hr
               MTBF                 : 117,747 hours (~ 13.4 years)
USER INTERFACES-
               Command Line Interface (CLI) via console port
               Web-based management via embedded HTTP server protected
                 with Secured Sockets Layer (SSLv3) or Transport Layer
                 Security (TLS v1).
               Telnet remote login (5 sessions) securable with Secured
                 Shell (SSH v1.5, v2).
INDICATORS   - LEDs Per port  : Speed, Link, Activity, PoE
                "   Per device: Power, Fan Status, Stack ID, RPS, Master
STANDARDS    - IEEE 802.3 10BASE-T
               IEEE 802.3u 100BASE-TX
               IEEE 802.3ab 1000BASE-T
               IEEE 802.3z 1000BASE-X
               IEEE 802.3x Flow Control
               IEEE 802.3af Power over Ethernet
DIMENSIONS   - 17.32"w x 1.7"h x 15.16"d         WT.- 12.5 lbs.
www.netgear.com
