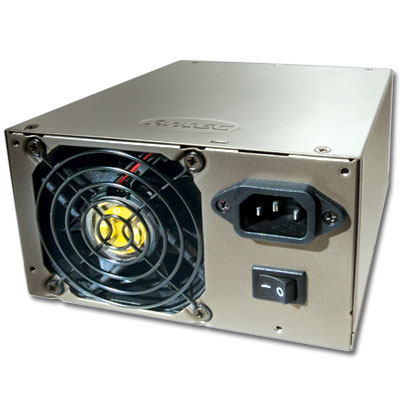

MODEL- NEO-HE-550         VENDOR- ANTEC INC.

FEATURES- NEO HE 550
       Welcome to the next level in PC power and protection. Neo HE power
        supplies consume up to 20% less energy than typical power supplies
        and generate less heat in your system. This not only saves
        electricity, but enables cooling with a smaller, slower, quieter
        fan. Active PFC circuitry further reduces impact on power
        infrastructure. The result is cooler, quieter, and environmentally
        friendlier power, making NeoHE the premier choice for high-
        performance PC systems.
* High Efficiency, Super Quiet Operation
   So highly efficient (up to 85%), one super-silent 80mm fan keeps Neo HE
   cool; less than 18dBA noise level.
* Advanced Cable Management System
   Improves internal airflow and reduces system clutter by allowing you to
   use only the cables you need.
* Universal Input with Active PFC
   Use anywhere in the world without worrying about input voltages; Active
   PFC improves voltage stability and delivers environmentally friendlier
   power.
* Dedicated Power Circuitry
   Delivers safer, more reliable output to your systems delicate
   components. Includes dedicated voltage outputs, triple +12V output
   circuits, voltage feedback circuitry, and tighter +/-3% regulation for
   improved system stability.
* Accurate power rating
   Allows Neo HE to deliver its full rated power, 24 hours a day rated at
   50 degrees C.
* Three +12V output circuits provide maximum stable power for the CPU
  independently of the other peripherals.
* PCI Express graphics card power connector.
* Low-speed 80mm fan delivers whisper-quiet cooling and ensures quiet
  operation by varying fan speed in response to load and conditions.
* SATA connectors for your Serial ATA drives.
* Industrial grade protection circuitry prevents damage resulting from
  short circuits (SCP), under voltage protection (UVP), power overloads
  (OPP), excessive current (OCP) and excessive voltages (OVP).

  -- SPECIFICATIONs ---------------------------------
INPUT             - Input Voltage        : 100Vac to 240Vac +/- 10%
                    Input Frequency Range: 47Hz to 63Hz
                    Inrush Current       : 60A @ 115V , 100A @ 230V
                    Input Current        : 7A @ 115V, 3.5A @ 230V
                    Hold-up Time         : 20ms at full load
                    Efficiency           : Up to 85%
                                           115V - Full load 76%
                                                  Typical load 82%
                                                  Light load 77.9%
                                           230V - Full load 80%
                                                  Typical load 85%
                                                  Light load 79.45%
                    EMI/RFI              : FCC Class B
SWITCHES          - ATX Logic on-off
                    Additional power rocker switch
TRANSIENT RESPONSE- +5V,+12V and +3.3V independent output circuitry
                      provides stable power and tighter cross regulation
                      (+/- 3%).
P. G. SIGNAL      - 100~500ms
OVER VOLTAGE PROTECTION-
                    +5V trip point   < +6.5V
                    +3.3V trip point < +4.1V
                    +12V trip point  < +14.3V (Recycle AC to reset)
SPECIAL CONNECTORS- ATX12V
                    Molex Peripheral
                    Floppy
                    SATA
                    PCI Express
LEAKAGE CURRENT   - <3.5mA @ 115VAC
ENVIRONMENTAL     - Operating Temp.: 10 ~ 50 degrees C
                    Operating Alt. : Sea Level-10,000 ft
                    MTBF           : 80,000 hours at 25 degrees C
APPROVALS         - UL, CUL, TUV, CE, FCC, CCC, CB, C-tick
SIZE - 5.9"w x 3.4"h x 5.9"d                     WT.- 5 lbs.
