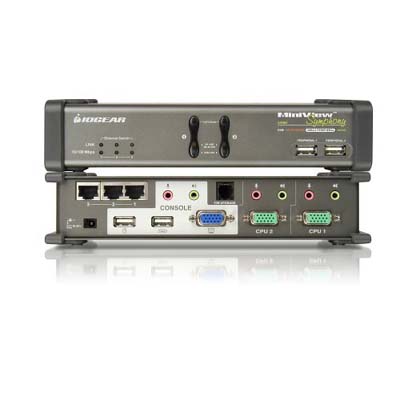

MODEL- GCS1772            VENDOR- IO GEAR

FEATURES- Miniview Symphony Multi-function 2-Port KVM Switch
       Miniview Symphony Multi-function KVM Switch, KVM/USB2.0 Peripherals/
        Networking/Audio, 2-Port.
       IOGEARs Symphony multi-function 2-Port KVM Switch represents the new
        wave in KVM technology. The Symphony allows you to control two
        computers using a single VGA monitor, USB keyboard and mouse. In
        addition, it has a built-in USB 2.0 hub, Ethernet 10/100 switch,
        and audio sharing capabilities.
       With its built-in USB 2.0 High Speed hub, slow transfer rates are a
        thing of the past. Fully compatible with USB 2.0 standards, this
        KVM allows you to share your USB peripherals and transfer data at
        up to 480 Mbps. In addition, the audio ports allow you to connect
        one set of speakers and microphone, and share them among your
        computers.
       To complement your KVM setup, IOGEARs Symphony KVM sports a full-
        featured Ethernet 10/100 switch. This built-in Ethernet switch
        allows you to easily network and share internet with your
        computers. Among its many features, it supports auto-sensing,
        10/100 Mbps speed, and is fully compliant with 802.3 networking
         standard.
    Includes GCS1772 2-Port KVM Switch, (2) Custom 6 ft. (1.8m) KVM cables,
      Firmware upgrade cable, Power adapter, User manual, Quick start
      guide.
* Two 6 ft (1.8m) cables included
* Multi-function USB KVM switch integrates a USB 2.0 hub, Ethernet switch,
  and audio.
* Controls two computers with a single VGA monitor, USB keyboard and mouse.
* Built-in USB 2.0 peripheral sharing to share printers, scanners, hard
  drives, etc., with data transfer rates of up to 480 Mbps.
* Built-in 3 port 10/100 Mbps Ethernet switch allows you to easily network
  and share Internet with your computers.
* Share one set of speakers with all your computers
* Independent switching of KVM, USB peripherals, and audio focus
* Port selection via Hotkeys and front push-buttons
* Auto scan mode for monitoring all computers
* Power on detection -- automatically switches to the first powered on port
* Superior video quality - up to 2048 x 1536
* Firmware upgradeable
* Easy installation -- no software required
* Keyboard and mouse emulation for error-free boot up
* Hot pluggable -- add or remove computers without powering down the switch
* Compatible with multiple operating platforms (PC, Mac, and Sun)

  -- SPECIFICATIONs -----------------------------------
CONNECTORs   - CPU    : Mouse      - (1) USB
                        Keyboard   - (1) USB
                        Monitor    - (1) HDB-15
                        Peripherals- (1) USB 2.0 port
               Console: Keyboard   - (1) USB Type A Female
                        Mouse      - (1) USB Type A Female
                        Monitor    - (1) HDB15 Female
                        Audio      - (1) Speaker
                                     (1) Microphone Jack Female
                        Flash ROM Upgrade- (1) RJ-11 Socket
               Switch : (3) 10BaseT/100BaseTX/RJ45 ports
INDICATORs   - LEDs for LAN, Link, USB
PORT SELECTION-
               Hotkeys for Front Panel switches
SCAN INTERVAL- 1 ~ 99 seconds (5 second default)
VIDEO RESOLUTION-
               Up to 2048 X 1536
EMULATION    - USB mouse and USB keyboard
CASE - Metal
POWER- DC 5.3V; 4.5W; 900mA
SIZE - 3.5"w x 2.19"h x 8.27"d                WT.- 2.03 lbs.
     www.iogear.com
