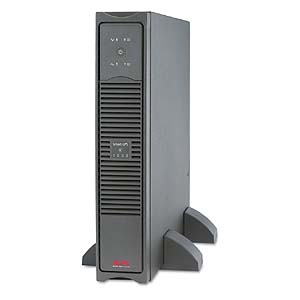

MODEL- SC1000             VENDOR- AMERICAN POWER CONVERSION

FEATURES- Smart-UPS SC 1000VA 120V- 2U Rackmount/Tower, Gray
       Smart-UPS SC, 1000VA/600W, Input 120V/Output 120V, Rack Height 2 U.
       APC Smart-UPS SC is the perfect protection for the IT resources of
        your growing business. Manageable and cost effective, APC Smart-UPS
        SC is designed for use by small and medium companies looking to
        protect entry level servers and networking equipment, providing
        both power and data-line protection. Included PowerChute Business
        Edition management software allows you to configure safe system
        shutdowns and take advantage of advanced UPS management features
        like automated risk assessments and runtime capacity calculations.
        (All major operating systems supported). Communications are through
        your servers standard serial port. When you are ready to take your
        business to the next level you can use the same software
        environment found on Smart-UPS SC to seamlessly manage other Smart-
        UPS models, allowing you to grow your IT infrastructure without
        having to replace your software or retrain your administrators.
        Built on the same standards as the award winning Smart-UPS UPS, the
        Smart-UPS SC is the UPS to start your business with.
    Includes UPS, CD with software, Rack mounting brackets, Smart UPS
      signalling RS-232 cable, USB cable, User Manual.
* Availability
   - Dataline Surge Protection
     Provides protection of connected equipment from power surges on the
     data lines.
   - Power conditioning
     Protects connected loads from surges, spikes, lightning, and other
     power disturbances.
   - Intelligent battery management
     Actively increases battery life and system reliability using
     FastCharge technology, automatic battery and circuitry self-tests, and
     advanced diagnostics.
   - Automatic restart of loads after UPS shutdown
     Automatically starts up the connected equipment upon the return of
     utility power.
   - Cold-start capable
     Provides temporary battery power when the utility power is out.
   - Hot-swappable batteries
     Ensures clean, uninterrupted power to protected equipment throughout
     battery replacement.
   - Resettable circuit breakers
     Enables quick recovery from UPS overload events.
* Manageability
   - Automatic self-test
     Ensures early detection of potential problems by periodic testing of
     UPS components.
   - Predictive failure notification
     Provides early-warning fault analysis on batteries enabling timely
     preventive maintenance.
   - Audible alarms
     Actively let you know if the unit is on battery, if the battery is low
     or if there is an overload condition.
   - Serial Connectivity
     Provides management of the UPS via a serial port.
   - LED status indicators
     Quickly understand UPS status with indicators.
   - Network manageable
     Provides remote management of the UPS over the network.
   - InfraStruXure Manager compatible
     Enables centralized management via APCs InfraStruXure Manager.
   - Manage multiple UPSs
     View status and configure multiple UPSs simultaneously.
* Economy
   - Boost and Trim Automatic Voltage Regulation (AVR)
     Automatically corrects low and high voltage conditions, allowing you
     to work through brownouts and overvoltages without discharging the
     battery. This saves battery life, increases uptime, and improves your
     productivity.
   - User-replaceable batteries
     Enables simple upgrades and replacement of the Batteries.
   - Adjustable voltage-transfer points
     Maximizes useful battery life by widening the input voltage window or
     tightening the output voltage regulation.
   - Safety-agency approved
     Ensures product testing and approval to work safely with the connected
     loads and within the environment.

  -- SPECIFICATIONs ----------------------------------
OUTPUT       - Power Capacity VA     : 1000 VA
               Power Capacity Watts  : 600 watts
               Nominal Output Voltage: 120V
               Output Voltage
                           Distortion: Less than 5% at full load
               Output Frequency
                      (sync to mains): 47~53Hz for 50Hz nominal
                                       57~63Hz for 60Hz nominal
               Crest Factor          : up to 5 : 1
               Waveform type         : Stepped approximation to a sinewave
               Output Connections    : (6) NEMA 5-15R
INPUT SPECS  - Nominal Input Voltage : 120V
               Input Frequency       : 47~63Hz
               Input Connection Type : NEMA 5-15P
               Cord Length           : 6 feet (1.83 meters)
               Voltage Range         : 95 ~ 142 V
                                       87 ~ 152 V (adjustable)
BATTERY & RUNTIME-
               Battery Type          : (1) Maintenance-free sealed Lead-
                                           Acid battery with suspended
                                           electrolyte, leakproof.
                                       Replacement battery is RBC33
               Typical Backup Time   : 19.7 minutes (300 watts) half-load
                                        7.4 minutes (600 watts) full-load
COMMUNICATIONS & MANAGEMENT-
               Control panel        : LED status display with On Line, On
                                        Battery, Replace Battery and
                                        Overload indicators.
               Audible alarm        : Alarm when on battery, distinctive
                                        low battery alarm.
SURGE PROTECTION & FILTERING-
               Surge energy rating  : 434 Joules
               Filtering            : Full time multi-pole noise filtering,
                                        5% IEEE surge let-through, zero
                                        clamping response time, meets UL
                                        1449 specifications.
               Dataline Protection  : RJ-11 Modem/Fax protection (four wire
                                        dual line).
                                      RJ45 10/100 Base-T Ethernet
                                        protection.
AUDIBLE NOISE- 45 dBA (at 1 meter from surface of unit)
APPROVALS    - CSA, FCC Part 15 Class A, UL Listed
SIZE - 17.0"w x 3.5"h x 18.24"d (2U)              WT.- 36.0 lbs.
     www.apcc.com
