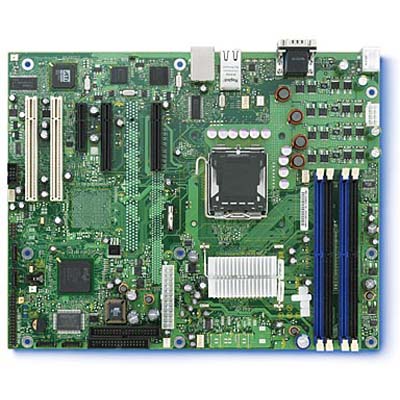

MODEL- SE7230NH1-E        VENDOR- INTEL CORP.

FEATURES- Intel Entry Server Board
       A Performance Uniprocessor Server Board Supporting Dual Core
        Processors, Faster DDR2 Memory, Dual Gb LAN, and PCI Express I/O.
       Uniprocessor systems are vital for entry-level server applications
        in businesses where budget factors must be considered alongside
        performance, reliability, and scalability. Now, businesses can
        place more consideration on performance as a purchase factor,
        thanks to the introduction of the Intel Entry Server Board
        SE7230NH1-E supporting dual-core processing.
       By basing servers on the Intel Entry Server Board SE7230NH1-E
        supporting dual-core processors and a system bus of up to 1066 MHz,
        businesses can achieve performance without sacrificing cost-
        effectiveness or reliability. Other performance advantages come
        from the boards support for up to 8 GB of dual-channel Registered
        ECC DDR2 SDRAM and the next-generation PCI Express I/O interconnect
        technology. The board also supports Intel Power and Thermal
        Headroom, Intels server technology to help protect performance over
        the long term and facilitate scalability so that systems can grow
        alongside the business itself.
       To enhance availability and manageability, the Entry Server Board
        SE7230NH1-E supports the Intel Server Management 8 software and
        utilities, and one board model also supports the breakthrough
        Intel Active Management Technology. What is more, the board can be
        deployed broadly thanks to its full compliance with the global RoHS
        Lead-Free Directive.
    Includes Intel Entry Server Board SE7230NH1-E, Quick Start User Guide,
      Intel Server Management 8 CD Pack (Intel Server Deployment Toolkit
      with Intel Express Installer, Intel Server Maintenance and Reference
      Training (SMaRT) Tool Software, server product information, technical
      documentation, customer support information, drivers and utilities,
      and Web links, CD-ROM with Intel Server Manager 8 family of
      software), Cable kit, I/O shield, Board-configuration label.
* Support for one Intel Pentium 4 processor, one dual-core Intel Pentium D
  processor, or one Intel Pentium 4 processor Extreme Edition with a system
  bus of up to 1066 MHz and Intel EM64T.
* Intel E7230 server Chipset!
* Dual-channel memory with support for up to 8 GB of Registered ECC DDR2
  400/533/667 SDRAM through four DIMM sockets.
* One PCI Express x8 slot and Two PCI Express x4 slots (each on an x1 bus).
* Intel Server Management 8
* Support for Intel Active Management Technology.

  -- SPECIFICATIONs -----------------------------------
PROCESSOR    - Support for One dual-core Intel Pentium 4 processor (LGA775
                 socket) with 1 MB of integrated L2 cache and a system bus
                 of up to 1066 MHz.
CHIPSET      - Intel E7230 server chipset
BIOS         - 8Mb Flash EEPROM with AMI BIOS, Multiboot BBS (BIOS Boot
                 Specification) 1.4-compliant.
               Flashable, setup utility available, Plug and Play, IDE drive
                 autoconfigure, SMBIOS 2.3, ECC/Parity support,
                 multilingual support, enabled for rolling/online BIOS
                 updates.
MEMORY       - Four DIMM sockets serviced by dual memory channels for up to
                 8 GB of ECC DDR2 400/533/667 memory; memory can be
                 implemented with either single-sided (one row) or double-
                 sided (two row) DIMMs.
               Accepts Unbuffered ECC or standard DDR2 400/533/667 SDRAM
                 72-bit, 240-pin gold-plated DIMMs; 1.8 volt only.
               Corrects single-bit errors, detects multiple-bit errors
                 (using ECC memory).
EXPANSION    - Three independent buses supporting PCI Express and PCI.
               (1) PCI Express x8 slot
               (1) PCI Express x8 slot on a x4 lane
               (1) PCI Express x4 slot on a x1 lane
               (2) PCI 32-bit/33MHz 3.3V conventional slots
                   (do not support 5V-only adapters)
GRAPHICS     - An internal Intel MCH module that includes an integrated
                 graphics engine supporting standard SVGA drivers with
                 analog display capabilities; 16 MB of dedicated memory to
                 support the onboard ATI ES1000 graphics controller.
ETHERNET     - Integrated Intel 82551QM Gigabit Ethernet controller
                 supporting 10BASE-T and 100BASE-TX; integrated Marvell
                 1000BASE-T; two RJ45 connectors for CAT6 TP cable.
PCI IDE      - Single-channel ATA 100 supporting up to two IDE devices.
SERIAL ATA   - Four SATA 150 connectors with integrated Zero Channel RAID
                 support in the BIOS; RAID 0, 1, and 10 supported for SATA
                 disks.
I/O PANEL    - (2) PS/2 ports (for keyboard and mouse)
               (1) RS-232C/DB9 Serial A port
               (1) Internal 9-pin Serial header
               (1) Floppy Controller with 1.44 MB and 2.88 MB, 3-mode
                   support.
               (1) 15-pin VGA port
               (2) RJ-45 Ethernet ports
               (2) USB 2.0 ports
MONITORING   - Integrated Hardware Monitoing via National Semiconductor
                 LM96000 controller including remote alerts.
MANAGEMENT   - OS agent-based instrumentation and Intel Server Manager 8
                 family of software.
               Intel Active Management Technology supports basic out-of-
                 band management capabilities to simplify asset management
                 and streamline system upgrade.
O/S SUPPORT  - Validated operating sytsems are Windows Server 2003
                 Enterprise Edition, Microsoft Windows XP, Red Hat Linux
                 Enterprise 3.0 (EMT64T), Red Hat Desktop.
JUMPERS      - CMOS clear, BIOS recovery
FRONT PANEL  - Power LED, hard-drive activity LED, power/sleep switch,
                 network connection LED, reset switch.
POWER        - +5V        : 12A maximum continuous current
               +12V       : 25A maximum continuous current
               +3.3V      : 33A maximum continuous current
SIZE - ATX, 12" x 9.6"
