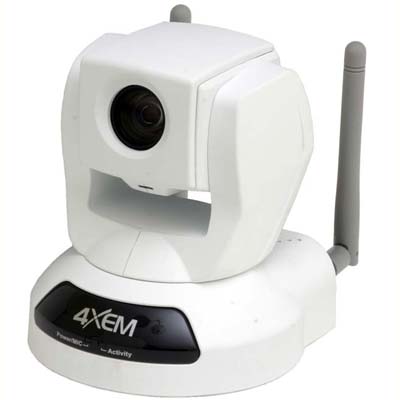

MODEL- IPCAMWLPTZ         VENDOR- 4XEM CORP

FEATURES- Wireless PTZ Pan/Tilt/Zoom IP Network Camera
       1/4" CCD Image Sensor, MPEG4 or MJPEG Video Compression, Generic I/O
        Ports, Duplex Audio, Pan/Tilt/Zoom, 16 Camera Software.
       4XEMs full function Wireless PTZ IP Network Camera features a 1/4"
        CCD Image Sensor, MPEG4 or MJPEG video compression, Generic I/O
        Ports (1 input, 1 output), a sensitive microphone, Pan/Tilt
        movement and 10x Optical Zoom. Connections are also available for
        an external microphone and for audio output, enabling two-way audio
        communication. The Wireless PTZ IP Network Camera is ideal for
        demanding applications that require connection to external alarms,
        two-way audio and Pan/Tilt/Zoom functionality for surveillance
        areas that are larger than the viewing span of one stationary IP
        camera.
       The motion detection feature will trigger still image capture and
        send the image via e-mail or to an FTP location. Bundled software
        allows monitoring and control of up to 16 IP Cameras from any web
        browser, and the quick and simple installation means you will be up
        in minutes viewing streamed video.
    Includes Pan/Tilt/Zoom Camera, Power Adapter, Mounting Bracket, 16
      Channel Software.
* Compact TCP/IP network remote video/audio surveillance system.
* Dual Codec: MPEG4 or MJPEG Video Compression Engine
* Built-in web server
* Extension for sensor and alarm
* Pre/Post alarm snapshots
* Optimal synchronization of audio and video
* Built-in camera
* Adjustable image size, quality and bit-rate
* Bundled with free recording and monitoring PC software
* Built-in intelligent motion detection
* Customizable homepage
* Digital output control directly
* Audio capability with built-in or external microphone
* Motorized Pan and Tilt capability
* Auto pan and auto patrol among selected preset locations
* Built-in 10x Optical Zoom
* 802.11g Wireless LAN with WEP & WPA Support

  -- SPECIFICATIONs -----------------------------------
CAMERA    - Video Source          : Embedded CCD
            Image Sensor          : 1/4 inch color CCD image sensor
            Lens Type             : 10x Optical Zoom Lens with 4.2~42 mm
                                      focal length, F1.8~2.9
            Minimum Illumination  : 1 Lux/F1.8 (0.05 Lux/F1.8 Low Lux Mode)
            Electronic Shutter
                             Speed: 1/60 ~ 1/120,000 second NTSC
            Automatic Electronic
                     Shutter (AES): Supported
            Automatic Gain
                     Control (AGC): Supported
            Automatic White
                   Balancing (AWB): Supported
            Auto-Iris Support     : Built-in Auto-Iris
            Dimensions            : 105.0 mm Length
                                    105.0 mm Width
                                    125.0 mm Height
            Weight                : Net 429 grams
SYSTEM    - CPU                   : Trimedia PNX1300
            RAM                   : 16MB SDRAM
            ROM                   : 2MB FLASH ROM
VIDEO     - Algorithm Supported   : Dual Codec: MPEG4 (Short Header Mode)
                                                and MJPEG
            Average Compression
                             Ratio: 150 ~ 200 (MPEG4)/12 ~ 20 (MJPEG)
            Frames Per Second     : Up to 30/NTSC
            Max Video Resolution  : 704 x 480/NTSC
            Resolution NTSC       : Up to 30 frames per second at 176 x 120
                                    Up to 30 frames per second at 352 x 240
                                    Up to 15 frames per second at 704 x 480
            Features              : Adjustable image size, quality and bit
                                      rate.
                                    Time Stamp and Text Overlay
                                    Up to 3 motion detection windows
                                    10x Optical Zoom, 10x Digital Zoom
                                    Upload Snapshots (FTP or Email)
NETWORKING- Protocol              : TCP/IP, HTTP, SMTP, FTP, Telnet, NTP,
                                      DNS, DDNS, UPnP and DHCP.
            Ethernet              : 10 baseT or 100baseT Fast Ethernet auto
                                      negotiation.
            Wireless Protocol     : 2.4 GHz 802.11g/b with WEP and WPA
                                      support.
            Wireless Bit Rate     : 54/48/36/24/18/12/9/6 Mbps
                                    11/5.5/2/1 Mbps
            Wireless Coverage     : 64M/54Mbps, 70M/48Mbps, 80M/36Mbps,
                                      120M/20/18/12/9/6Mbps
                                    80M/11Mbps, 120M/5.5Mbps, 200M/2Mbps,
                                      300M/1Mbps
PAN/TILT/ZOOM-
            Pan Range             : +/-135 degrees, 10 ~ 50 degrees/sec
            Tilt Range            : +90 ~ -45 degrees, 7 ~ 25 degrees/sec
            Zoom                  : 1x ~ 10x Optical Zoom
                                    2x, 4x, 6x, 8x, 10x Digital Zoom
            Features              : Auto Pan mode, Auto Patrol mode
MISC.     - Audio Frequency       : 8/24/32 Kbps
                                    Full Duplex Audio Communication
            Microphone            : Omni-directional
                                    Frequency: 20 ~ 20,000 Hz
                                    S/N Ratio: More than 58 dB
            General I/O           : 1 sensor input (max. 12V DC 50mA)
                                    1 relay output (max. 24V DC 1A/125V
                                        AC 0.5A).
            LED Indicators        : Dual color system status indicator
SOFTWARE  - Includes IPNV16 Security and Remote Monitoring Software.
            Features include:
              - Remote configuration and control of up to 16 devices
              - Fast/Slow forward, replay and pause
              - Scheduled backup
              - Event-triggered, Scheduled and Manual recording
              - Instant search with preview windows
              - Hard disk quota warning
              - AVI format export
REQUIRES  - Windows 98SE/ME/2000/XP
            Internet Explorer 5.x or later
APPROVALS - CE, FCC
POWER- Consumption: Maximum 12W
       Output     : 12V DC, 1.5A
       Input      : 100 ~ 240V AC, 50/60 Hz, 0.4 A
www.4xem.com
