MODEL- SUM3000RMXL2U      VENDOR- AMERICAN POWER CONVERSION

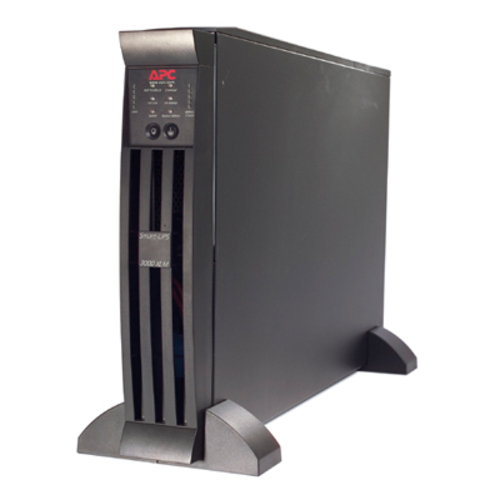

FEATURES- Smart-UPS XL Modular 3000VA Rackmount/Tower- Black
       APC Smart-UPS XL, 3000VA/2850W, Input 120V/Output 120V, Interface
        Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model,
        Rack Height 2 U.
       APC Smart-UPS XL protects your data by supplying reliable, network-
        grade power with scalable run-time in tower and rack mount form
        factors. With optional, matching battery packs, run-time can be
        easily extended and optimized for the application. APC understands
        long run-time requirements so; Smart-UPS XLs can be configured with
        up to 10 additional battery packs - for run-times exceeding 24
        hours, if necessary. The convergence of voice and data networks is
        placing higher demands on availability expectations - and the
        Smart-UPS XL delivers. Voice over Internet Protocol (VoIP),
        e-commerce, WiFi ("hotspots", WLAN/ WWAN, and mixed wireless), and
        data enabled PBXs are a few of the applications driving the need
        for Smart-UPS XL. APC Smart-UPS XL is also the perfect UPS for
        fileservers (Intel or UNIX based), minicomputers, Network switches
        and hubs, ATMs, telecommunications systems and other mission-
        critical applications requiring longer runtime.
       With included PowerChute management software for servers and
        workstations, IT administrators can provide safe system shutdown
        and advanced UPS management (All major operating systems
        supported). Connectivity is through a serial or USB port (USB not
        standard on all models, see specific models for details).
       Additional manageability is available through the SmartSlot, an
        internal accessory slot that allows you to install optional
        accessories to enhance the performance of your UPS. Network
        connection with Web browser management and/or environmental
        monitoring, serial port expansion, and out-of-band management
        options are available. With pure sine-wave output ensuring
        compatibility with all connected devices, Intelligent Battery
        Management ensuring a highly available UPS and an advanced 16
        segment bar graph display ensuring information and management, the
        Smart-UPS XL is a UPS you can count on.
    Includes UPS, CD with software, Installation Guide, Rack Mounting
      Brackets, Rack Mounting support rails, Smart UPS signalling RS-232
      cable, USB cable, User Manual, Web/SNMP Management Card.
* Scalable runtime
   Allows additional run time to be quickly added as needed.
* Power conditioning
   Protects connected loads from surges, spikes, lightning, and other power
  disturbances.
* Temperature-compensated battery charging
   Prolongs battery life by regulating the charge voltage according to
   battery temperature.
* Intelligent battery management
   Provides higher availability through intelligent precision-charging that
   maximizes battery performance, life, and reliability.
* Automatic restart of loads after UPS shutdown
   Automatically starts up the connected equipment upon the return of
   utility power.
* Automatic self-test
   Periodic battery self-test ensures early detection of a battery that
   needs to be replaced.
* Boost and Trim Automatic Voltage Regulation (AVR)
   Preserves battery life and maximizes run time by correcting low and high
  voltage conditions without discharging the battery.
* Cold-start capable
   Provides temporary battery power when the utility power is out.
* Disconnected battery notification
   Warns when a battery is not available to provide backup power.
* Generator compatible
   Ensures clean, uninterrupted power to protected equipment when generator
   power is used.
* SmartSlot
   Customize UPS capabilities with management cards.
* Audible alarms
   Actively let you know if the unit is on battery, if the battery is low
  or if there is an overload condition.
* LED status indicators
   Quickly understand UPS status with indicators.
* Disconnected battery notification
   Warns when a battery is not available to provide backup power.
* Serial Connectivity
   Provides management of the UPS via a serial port (excludes BK500-RS).
* Network manageable
   Provides remote management of the UPS over the network.
* Hot-swappable batteries
   Ensures clean, uninterrupted power to protected equipment while
   batteries are being replaced.
* Predictive failure notification
   Provides early-warning fault analysis ensuring proactive component
   replacement.
* Resettable circuit breakers
   Enables quick recovery from UPS overload events.
* Plug-and-Play external batteries
   Ensures clean, uninterrupted power to the loads when adding extra
   runtime to the UPS.
* Adjustable voltage-transfer points
   Maximizes useful battery life by widening the input voltage window or
   tightening the output voltage regulation.
* Adjustable voltage sensitivity
   Provides the ability to adapt the UPS for optimal performance in
   specific power environments or generator applications.
* Safety-agency approved
   Ensures the product has been tested and approved to work safely with
   the connected service provider equipment and within the specified
   environment. UL, FCC, CE, C-Tick approvals.

  -- SPECIFICATIONs ------------------------------------
OUTPUT   - Output Power Capacity : 2850 Watts/3000 VA
           Configurable Power    : 2850 Watts/3000 VA Max.
           Nominal Output Voltage: 120V
           Output Connections    : (6) NEMA 5-15R
                                   (2) NEMA 5-20R
INPUT    - Bypass                : Internal Bypass (Automatic and Manual)
           Nominal Input Voltage : 120V
           Input Frequency       : 50/60 Hz +/- 3 Hz (auto sensing)
           Input Connections     : NEMA 5-30P
           Cord Length           : 10 feet (3.05 meters)
           Voltage range         : 82 ~ 147V (for main operations)
           Voltage adjustable
                            range: 75 ~ 154V (for main operations)
BATTERIES & RUNTIME-
           Battery Type          : VRLA
           Replacement cartridge : RBC43
           Typical Backup Time   : 11.9 minutes (1425 Watts) at half load
                                    3.5 minutes (280 Watts) at full load
COMMUNICATIONS & MANAGEMENT-
           Interface Port(s)     : DB-9 RS-232
                                   RJ-45 10/100 Base-T
                                   USB
            Pre-Installed
                  SmartSlot Cards: AP9619
            Control panel        : LED status display with load and battery
                                     bar-graphs and On Line, On Battery,
                                     Replace Battery, Overload and Bypass
                                     Indicators.
            Audible Alarm        : Alarm when on battery, distinctive low
                                     battery alarm, configurable delays.
            Emergency Power Off  : Optional
SURGE PROTECTION & FILTERING-
            Surge energy rating  : 540 Joules
            Filtering            : Full time multi-pole noise filtering,
                                     0.3% IEEE surge let-through, zero
                                     clamping response time, meets UL 1449.
APPROVALS - BSMI, CSA, FCC Part 15 Class A, NOM, UL 1778, VCCI
NOISE- 55 dBA
SIZE - 17.0"w x 3.40"h x 26.7"D             WT.- 103.0 lbs.
       www.apcc.com
