NE-4120A Programmable Version

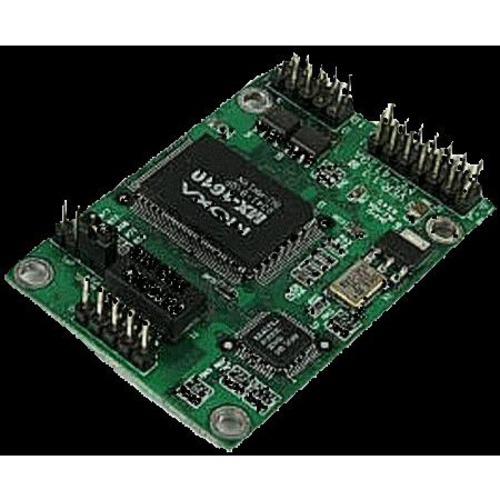

858672_MOXA_NE4120AP.JPG-NE_4120A_PROGRAMMABLE_VERSION

Manufacturer	MOXA
Mfg. Part #	NE-4120A-P
ITEM#	357467
Unit Price	$108.06 (~CAD$107.84)
Availability	In Stock
Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume	Each	Landing Price/Each
1 ~ 2	$108.06 (~CAD$107.84)	$127.81 or less (~CAD$127.55)
3 ~ 7	$106.87 (~CAD$106.65)	$118.29 or less (~CAD$118.04)
8 ~ 14	$105.67 (~CAD$105.45)	$114.48 or less (~CAD$114.25)
15 ~ 19	$104.48 (~CAD$104.27)	$112.56 or less (~CAD$112.33)
20 ~	$103.28 (~CAD$103.07)	$111.16 or less (~CAD$110.93)

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:
Moxa PD Frame

Introduction

NE-4120A

NE-4120A offers a complete Ethernet connection solution (TCP Server, TCP Client, UDP) to network-enable your serial devices—only 57 x 40 mm, or less than half the size of your credit card—you can easily integrate NE-4110S into your serial device to make the device 10/100M Ethernet-ready.

Industrial-proven, built-in TCP/IP stack
NE-4120A's industrial-proven, built-in TCP/IP stack makes it easy for your R&D engineers to network-enable your serial device since they won't need to put a lot of effort into TCP/IP programming. The 10/100M Ethernet auto-sensing interface lets you enjoy the higher 100M speed when available. In addition, NE-4120A's 4 GPIO pins provide ample design flexibility, giving you the freedom to develop the features your customers need. The NE-4120A 5V design is better suited for today's equipment, and R&D engineers can spend less effort implementing the power circuit.

User-friendly configuration options
Configuration is done with a user-friendly Windows utility, Web browser, telnet console, or serial console. In addition, a Windows-based NECI (Network Enabler Configuration Interface) Library is available to help you develop your own Windows utilities.

Shorter time to market
The ready to go design of NE-4120A allows you to get your legacy serial device Ethernet-ready easily without modifying the circuit, and get your product to market in no time.

NE-4120-ST Starter Kit
An NE-4120-ST Starter Kit that includes everything you need to develop your application is also available. The Starter Kit includes an evaluation board, SDK, documentation, cables, and accessories.

Applications

Industrial Automation (PLC, metering devices)

Medical/Healthcare (ECG, ultrasonic monitoring, blood testing devices)

Building Automation (HVAC, fire alarms)

Security/Surveillance (card readers, biometric identification devices)

Information Appliances (UPS monitor modules)

NE-4120A System Block Diagram

NE-4120A Schematic

Pin Assignments

Features

RS-422/485 to 10/100M auto-sensing Ethernet mini card for embedded device networking
Compact size (57 x 40 mm)
Ready-to-use TCP/IP firmware for fast integration
TCP Server, TCP Client, UDP, Real COM driver operation modes
Easy configuration with Web browser, serial console, or Windows utility
Low power consumption (1.5W)
Dedicated 4 GPIO for user's configuration
Programmable version available

Specifications

LAN

Ethernet

Auto-detecting 10/100 Mbps

Protection

Built-in transformer with 1.5 KV magnetic isolation

Pins

ETx+, ETx-, RTx+, RTx-

Serial Interface

Interface

RS-422/485 x 1, TTL x 1

Signals

RS-422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS-485: Tx+, Tx-, Rx+, Rx-
2-wire RS-485: Data+, Data-, GND

Serial Communication Parameters

Parity

None, Even, Odd, Space, Mark

Data Bits

5, 6, 7, 8

Stop Bits

1, 2

Flow Control

RTS/CTS, XON/XOFF

Speed

50 bps to 115.2 Kbps

GPIO

Programmable x 4, PIO

Software Features

Protocols

ICMP, ARP, IP, TCP, UDP, DHCP, Telnet, HTTP, SNMP, SMTP

Operation Modes

TCP Server, TCP Client, UDP, Real COM

Utilities

Administration utility for Windows 95/98/ME/NT/2000/XP

Management

Web browser, serial console, Telnet console, or Windows utility

Configuration Interface

NECI library for developing your own utility

Power Requirements

Power input

5 VDC, ±5%

Power consumption

290 mA (at 5 VDC max.)

Environmental

Operating Temperature

0 to 70°C (32 to 158°F), 5 to 95% RH

Storage Temperature

-20 to 85°C (-4 to 185°F), 5 to 95% RH

Regulatory Approvals

EMC

FCC Class A, CE Class A

Manufacture Warranty

5 years

Standard Moxa Product Warranty

Ordering Information

NE-4120A

10/100 Mbps Ethernet Network Enabler for RS-422/485 Devices, with 5-pin Ethernet pin header

NE-4120A-CMD

Serial Command Mode Version of NE-4120A, 100 Mbps Ethernet Network Enabler for RS-422/485 Devices, with 5-pin Ethernet pin header

NE-4120-ST

Starter Kit for NE-4120A, NE-4120A-P, NE-4120A-CMD; package includes:

NE-4120-ST evaluation board

Documentation & Software CD; includes NE utility, SDK, and User's Manual

NE-4100 Series Quick Installation Guide (printed)

Universal Power Adaptor

2 Power Cords

Ethernet Cross-Over Cable

Null Modem Serial Cable

MOXA 5-Year Warranty Booklet

*NOTE: The NE module must be purchased separately.
